6" 1973-1987 Chevy 1/2 ton Pickup 4WD Premium Lift Kit by Jack-It

Brand: Jack-It | SKU: GM129PR / GM130PR / GM137PR
From $1,866.50


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This 6-inch lift kit for the Chevy 4WD 1/2-ton pickup is a special premium package that Jack-It has put together. It will allow for the use of larger-diameter tires and replace worn front and rear leaf springs. We use only high quality components from top brands like Skyacker and more in this kit.  Since 1994, we have specialized in lifted vehicles and know the importance of getting all the parts required to do the job correctly. This kit features extra components not found in a standard lift kit.

This kit features Skyjacker front and rear leaf springs, which provide very good ride quality, performance, and reliability. Properly sized U-bolts with hardware are provided for the front and rear axles. A front sway bar shackle drop kit includes poly bushings and will maintain proper angles to eliminate binding.

Recognizing the challenges posed by aging components, we eliminate concerns by ensuring that 30-50-year-old spring bolts and bushings are replaced with fresh, high quality upgrades, guaranteeing longevity and durability.

The inclusion of a raised steering arm maintains correct steering angles, keeping your full turning radius and handling in check. We include new lock nuts and cone wedges, while most kits require you to reuse the stock hardware. Extended stainless steel brake hoses are included, safeguarding against overstretching of outdated brake hoses during off-road excursions.

We offer a choice of quality shock absorbers:

Skyjacker BlackMax: These heavy-duty shocks are a great option for lifted vehicles. They feature heavy-duty twin-tube hydraulic construction, polyurethane bushings, and a black boot. The all-black shock body looks awesome while providing great suspension performance.

Fox 2.0 Adventures Series Shocks:  These Fox shocks are a mono-tube gas design. These wll give provide a comfortable on-road ride and controlled off-road handling, they use a 2 inch OD alloy body construction with a large 5/8 inch heat treated hard chrome plated shaft for increased strength and durability.

Features and Benefits

  • Replaces worn front and rear leaf springs
  • The most complete 6 inch lift kit on the market
  • Allows for use of up to 36 x 12.5 tires, 15 x 8 wheels w/3.5 in backspacing (trimming may be required)
  • Only top-quality components

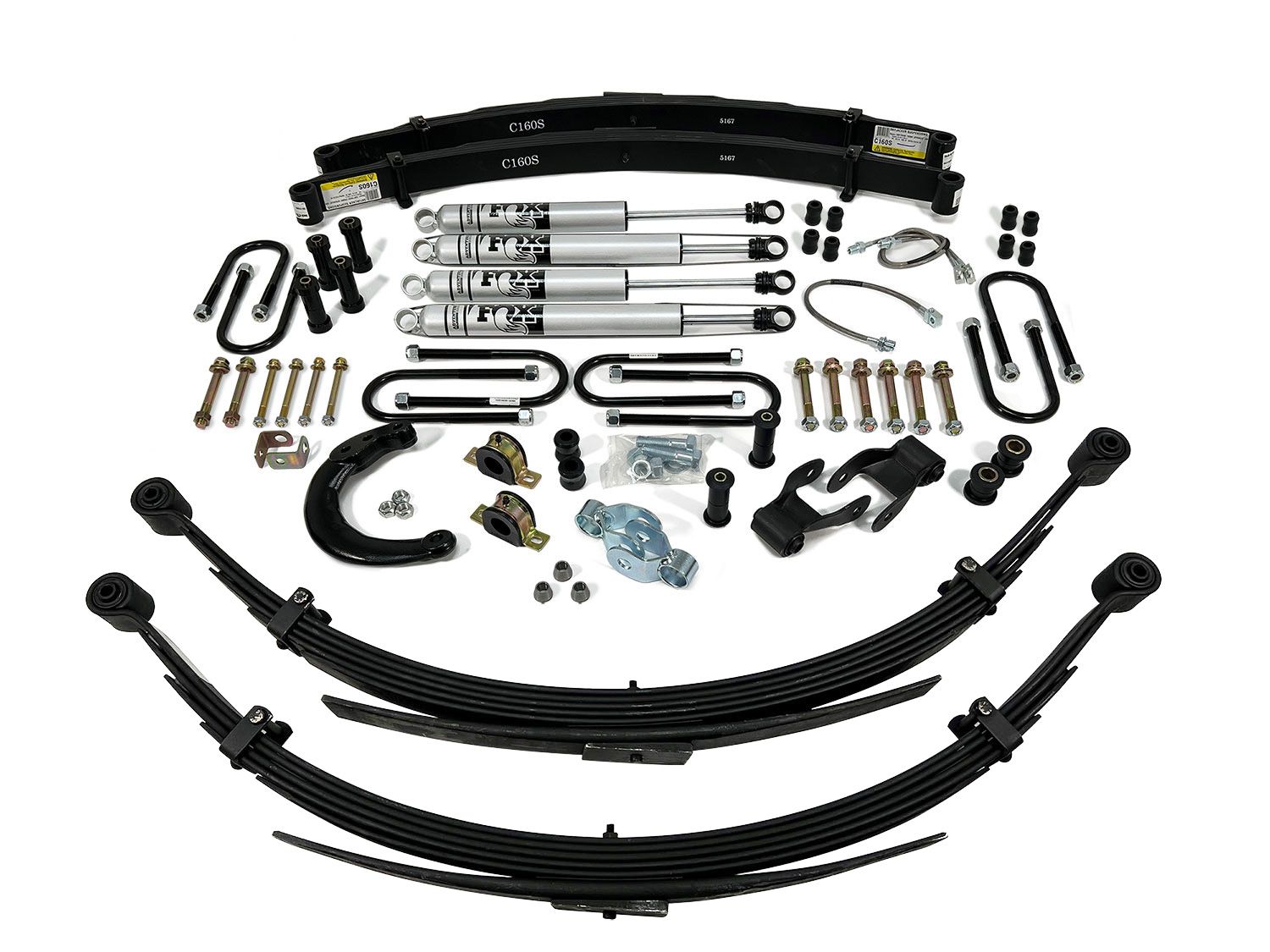

Premium Package Includes:

  • Front Skyjacker Softride Leaf Springs
  • Rear Skyjacker Softride Leaf Springs (52-inch length)
  • Rear and Front Spring and Shackle Bolts, Nuts and Washers
  • Rear Replacement Shackles w/Bushings
  • Fox 2.0 Adventure Series Shocks or Skyjacker BlackMax Shocks
  • Front Upper Shackle Bushings
  • Sway Bar Bushings
  • Front Sway Bar Drop Shackles
  • Front & Rear Stainless Steel Braided Extended Brake Lines
  • Raised Steering Arm (w/cone sleeves and lock nuts)
  • Front and Rear U-Bolts
  • Transfer Case Drop Kit

Installation Note:

Possible exhaust modification needed for crossover pipe to clear front driveshaft at full droop also check for bind on the front double cardon joint on the front drive shaft at full droop; may have to clear the ears or swap to higher angle joint. In some models, the e-brake cable from the frame to the rear axle may be too short under full droop conditions. If your vehicle is an 81-87 model year you have the option to order the extra 2 front shocks if you have the front factory quad shocks option.

Important Notes1. If truck has factory quad shock option 81-87 models on front you will need to order two extra shocks # SKJ B8560 or FOX 98450652
2. Possible front CV will bind on 77 and newer trucks you may need to grind for clearance
3. Kit does not include extended bump stops
4. Diesel motor or winch bumper applications can order SKJ FLC160 fitted add a leaf for extra load support on front of vehicle.
5. Exhaust modifications may be necessary for front drive line to clear exhaust cross over.
6. Rear e-brake cables may be too short under full droop on some models.
Vehicle Fitment
MakeChevy
ModelPickup 1/2 ton
Year Fitment1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberGM129PR / GM130PR / GM137PR
Item Numbergm129pr_gm130pr_gm137pr
Product LineLift Kits
Lift Height6 inch
