1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 8

The ICON Vehicle Dynamics K53368 / K53368T Stage 8 Suspension System for the 2024 Toyota Land Cruiser 250 Series is crafted for drivers seeking peak performance and versatility. Engineered to maximize wheel travel and damping, this system enhances control and ride quality for both on- and off-road conditions.

This Stage 8 system features specially tuned 2.5 Series coil-over shocks equipped with CDCV (Compression Damping Control Valve) remote reservoirs alongside ICON-engineered coil springs, providing an unmatched "feel" throughout the suspension's range of motion. The remote reservoirs significantly enhance shock oil volume and heat dissipation, preventing overheating and cavitation even under rigorous use, thus mitigating damper fade. Featuring ICON CDC Valves and externally adjustable valves that restrict oil flow into the reservoir, these coil-overs offer ten compression-damping force ranges. Moreover, they are height adjustable, offering a lift range of 1.25-3 inches over stock, enabling larger and more aggressive wheel and tire combinations.

Front differential drop brackets and specialized coilover lengths maximize suspension travel while minimizing CV bind, with polyurethane bushings replacing soft OE bushings to limit differential movement under load.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

The dual-rate rear coil springs combine a soft primary spring rate for comfort with a firmer overload rate for superior bottoming resistance and off-road performance. The system provides 2” of rear lift, creating a level stance from front to rear. The adjustable rear track bar ensures precise axle alignment, with on-vehicle adjustments for convenience.

Tubular or billet rear lower links feature dual-durometer bushings for noise reduction and FK rod ends for superior articulation and durability. The rear 2.5 Aluminum Series CDCV shocks with integrated bump zones enhance damping performance and balance the Land Cruiser’s front-to-rear handling dynamics. With vehicle-specific valving, this suspension system delivers outstanding capability on rugged trails and exceptional performance on paved roads, making it a comprehensive upgrade for the 2024 Toyota Land Cruiser 250 Series.

Top Features and Benefits

• Designed to maximize wheel travel and damping for improved control and ride quality on- and off-road
• Includes 2.5 Series Coilover shocks with CDCV-equipped remote reservoirs for superior cooling and heat dissipation
• All coilovers & shock absorbers are equipped with CDC Valves for 10 settings of compression damping adjustment, ranging from soft to hard.
• Height adjustable from 1.25” to 3” to accommodate larger wheels and tires
• Front differential drop brackets and specialized coilover lengths maximize suspension travel and reduce CV bind
• Polyurethane bushings replace soft OE bushings to limit differential movement under load
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• ICON Delta Joint PRO eliminates binding and allows full bump and droop suspension travel
• Dual-rate rear coil springs provide comfort at ride height and firm resistance for heavy-duty off-road performance
• Delivers 2” of rear lift for a level stance between front and rear
• Adjustable rear track bar ensures precise axle alignment with on-vehicle adjustment capability
• Tubular rear lower links feature dual-durometer bushings for noise reduction and FK rod ends for articulation and durability
• Rear 2.5 Aluminum Series CDCV shocks with integrated bump zones balance front-to-rear damping performance
• Vehicle-specific valving enhances capability on rough trails and performance on paved roads

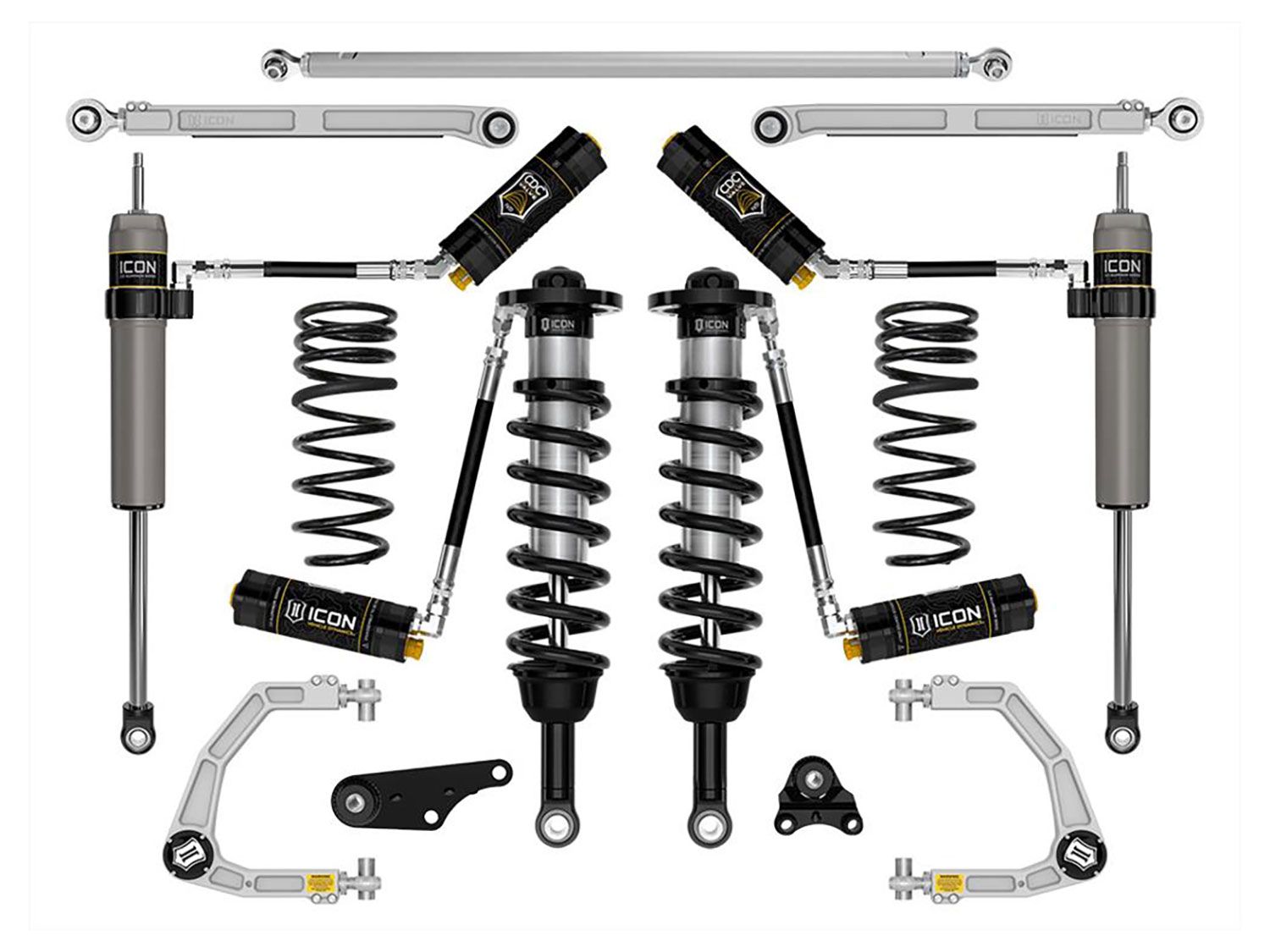

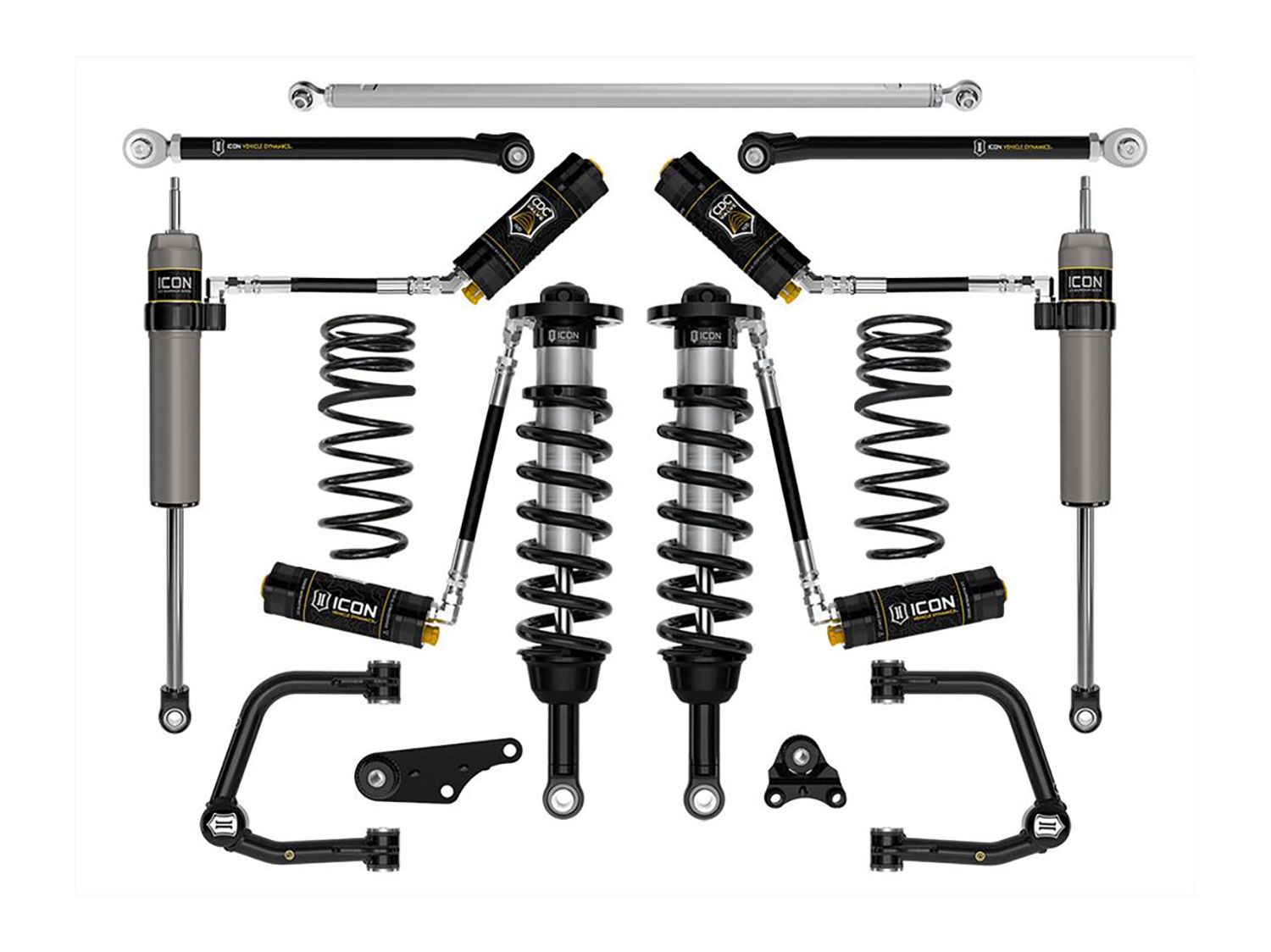

Parts Included

• 58791C (QTY: 1) | FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870CP (QTY: 1) | REAR 2.5 VS CDCV RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJUSTABLE TRACK BAR
• 54003T or 54003 (QTY: 1) | TUBULAR or BILLET REAR LOWER LINK KIT
