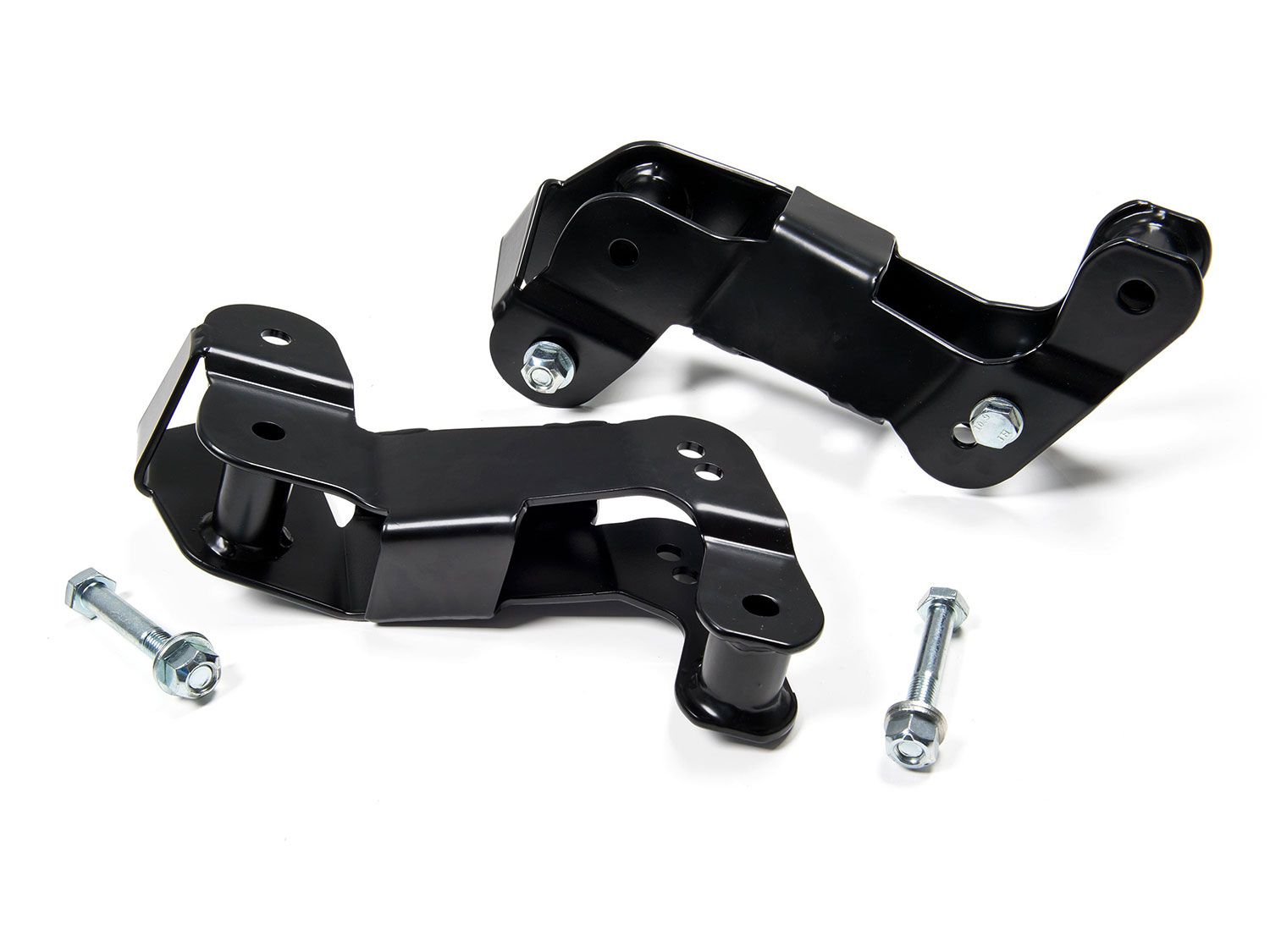

Wrangler JK 2007-2018 Jeep 4WD (w/2-4.5" lift) - Front Control Arm Correction Brackets by JKS

Brand: JKS | SKU: JKS6200
Special Price $176.65 Regular Price $185.95


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

JKS6200 Front Control Arm Correction Brackets are designed to restore proper suspension geometry and improve handling on lifted Jeep Wrangler JK models running 2"–4.5" lift kits. By lowering the frame-side control arm mounting points, these brackets correct control arm operating angles, improve anti-dive under braking, and help bring caster back into proper alignment after lifting.

The revised mounting position places the control arms closer to their factory relationship with the axle, reducing harsh ride characteristics commonly associated with lifted solid-axle suspensions. Two mounting hole positions allow geometry correction based on specific lift height, ensuring optimal performance whether the vehicle is used for daily driving or off-road travel.

Constructed from heavy-duty 7-gauge fully boxed steel and reinforced with gussets, JKS6200 brackets provide exceptional strength and durability. They install inside the factory upper and lower control arm mounts using factory hardware, making them a straightforward bolt-on upgrade. For maximum performance, these brackets can be paired with JKS adjustable control arms.

Features and Benefits:

  • JKS6200 Front Control Arm Correction Brackets for Wrangler JK
  • Designed for 2"–4.5" lift kits
  • Corrects control arm operating angles to mimic factory geometry
  • Improves on-road handling and braking anti-dive characteristics
  • Helps restore proper caster after lifting
  • Improves front driveshaft CV joint operating angles
  • Two mounting hole positions for lift-specific geometry correction
  • Manufactured from heavy-duty 7-gauge fully boxed steel
  • Fully welded and gusseted for superior strength
  • Bolt-on installation using factory mounting points and hardware
  • Compatible with JKS adjustable control arms for enhanced performance
    • View JKS JKS6200 Instruction Manual
    Important Notes
  • Requires 2" of front bump stop extension for adequate clearance at full suspension compression. JKS 2" bump stop extension is available separately (#1120)
  • Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length.
  • Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6".
  • Do not combine with any other drop/relocation brackets
    • Vehicle Fitment
    MakeJeep
    ModelWrangler JK
    Year Fitment2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007
    2WD/4WD4WD
    Tech Specs
    ManufacturerJKS
    Manufacturer Part NumberJKS6200
    Item Numberjks_6200
    MPN(UPC)814897011649
    Product LineControl Arms
    Front/RearFront
