3" 2005-2014 Toyota Tacoma 6 lug Uniball CoilOver Lift Kit

Special Price $2,706.90 Regular Price $3,383.62

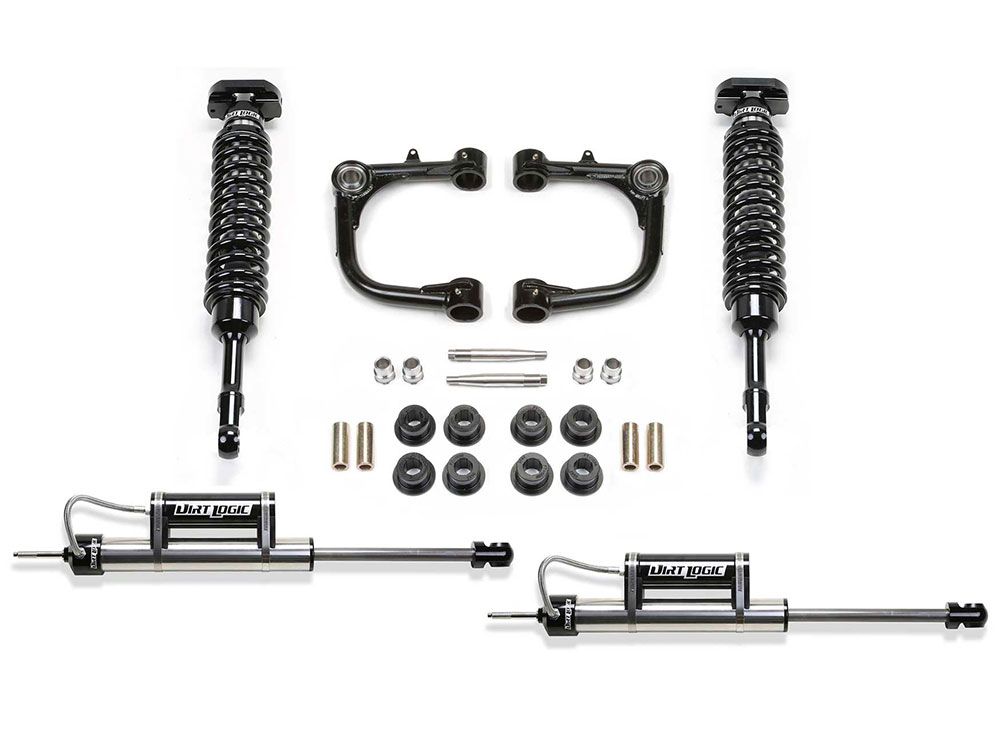

3 inch Uniball UCA System w/ Front Dirt Logic 2.5 Coilovers and Rear Dirt Logic Resi Shocks

Free Shipping if you spend $99 or more!
*to lower 48 continental US only.
*Truck Freight items and certain sale items are not Included.

- +
More Information
More Information
Item Numberfab_k7032dl
Manufacturer Part NumberK7032DL
Description

Features and Benefits:
- Arms eliminate upper ball joint w/ super strong 1 inch ID Stainless American Uniball
- Additional caster is built into Arms for greater align ability to help the problematic leveling kit alignments
- Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks
- Chromoly tubing reduces flex found in stock arms for more positive road feel
- 4340 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
- Arms are direct replacements for factory arms on suspensions that require additional strength and align ability

Material Construction Specs
- Built with the same materials as found on Trophy Trucks
- .120 inch Wall 4130 Chromoly Tubing. 1.25 inch OD
- .250 inch Wall DOM Bushing Barrels
- 1 inch ID Stainless Steel American Uniball
- 17-4 Stainless Misalignment
- Heat Treated 4340 Tapered Uniball Pins

Front Dirt Logic 2.5 Coilovers
Derived from Fabtech's desert racing experience, the Dirt Logic 2.5 Coilover is an exceptional performance shock that has been developed for a variety of Coilover applications.The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.50 inch OD Steel Body
- 2.25 inch OD Billet Aluminum Piston
- 7/8 inch Induction Hardened Chrome Piston Rod
- Adjustable Coilover Construction
- 5/8 inch Spherical Ball or Urethane Mounting Ends
- Black Anodized Finish

Rear Dirt Logic 2.25 Resi
The new standard in large diameter mono tube shocks for lifted applications in the OE position as well as multiple shock applications, the 2.25 provides unparalleled shock performance. The Dirt Logic 2.25 offers a supple highway ride with outstanding offroad dampening.
- 2.25 inch OD Steel Body
- 2 inch OD Billet Aluminum Piston
- 7/8 inch Induction Hardened Chrome Piston Rod
- Polyurethane Mounting Ends
- 2.25 inch OD Reservoir w/ 8 Stainless Steel O-ring Hose
- Black Anodized Finish

Tire and Wheel Fitment:
Use 33/12.50R17 tires w/ 17x8 wheels w/ 4-5/8 inch BS w/ minor trimming
Use 275/70R18 tires w/ 18x9 wheels w/ 4-3/4 inch BS w/ minor trimming
Use 275/60R20 tires w/ 20x9 wheels w/ 5 inch BS w/ minor trimming

About Fabtech's Warranty

Tacoma Transformation

We'd like to thank Fabtech Motorsports for the awesome 3" CoilOver kit on our Jack-It Tacoma. It's such a smooth ride, and so much better looking! We'd also like to thank Pro Comp for the wheels and tires, all combined to make a beautiful looking truck. If you're interested in the kit or wheels, you can find them on our website here: Fabtech Coilover Kit: http://www.jackit.com/k7032dl.html Wheels: http://www.jackit.com/pcs-2640-7983.html

Posted by Jack-It, Inc. on Wednesday, February 24, 2016
ManufacturerFabtech
MakeToyota
ModelTacoma
Year Spans2005,2006,2007,2008,2009,2010,2011,2012,2013,2014
Lift Height3 inch
2WD/4WD2WD, 4WD
