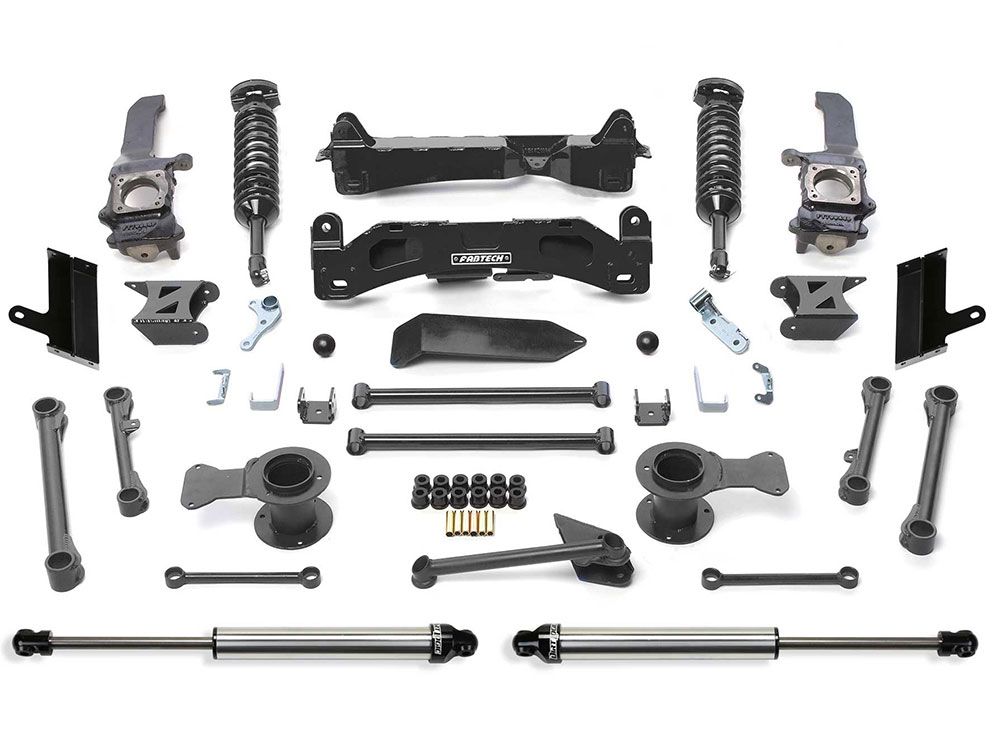

This Fabtech K7067DL / K7068DL 6 inch lift for the Toyota 4Runner features extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The front suspension is controlled with Fabtech’s legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride.  Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to reposition the tire in the wheel well with the additional ride height. A stout 1/4" thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper. Rear shocks include the Dirt Logic 2.25.

Top Features and Benefits

• Allows use of 35 inch Tires
• Dirt Logic 2.5 Coilovers w/Stainless Steel Body (optional Resi version)
• 1/4 inch steel crossmembers w/adjustable cam
• Dirt Logic 2.5 Stainless Steel Rear Shocks
• Ductile iron steerinf knuckles
• Heavy duty fornt skid plate for protection from obstacles
• Lifetime Warranty

Recommended Tire Sizes

• Use 35/12.50R17 tires w/ 17x9 wheels w/ 4 3/4” BS w/ minor trimming
• Use 35/12.50R18 tires w/ 18x9 wheels w/ 4 3/4” BS w/ minor trimming
• Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming
