6" 1993-1997 Mazda B4000 PU 4WD Budget Lift Kit

$1,287.71
6 inch Budget Suspension Lift Kit

Free Shipping if you spend $99 or more!
*to lower 48 continental US only.
*Truck Freight items and certain sale items are not Included.

- +
More Information
More Information
Item NumberMZ102SD
Description

Our 4 wheel drive Mazda twin I-beam coil spring suspension lift kits are extremely versatile to fit your specific needs—whether you want a basic 'face-lift' while maintaining excellent highway performance, or need to increase suspension travel for backwoods trips or even serious off roading. We are able to accommodate these diverse needs by creating unique lift kit packages for each specific application.

All our Mazda packages include coil springs which are specifically engineered to operate with each vehicles suspension needs. They are made from 5160H Chromium alloy and are refined using shotpeening technology to create longer life and a stronger tensile strength. The coils are pre-settled to reduce height changes. A tough baked on powder coating is applied to protect against corrosion and rust. Due to the inconsistent factory height on these vehicles and very sensitive alignment tolerances, it is often impossible to properly align the vehicle once it has been lifted. We have overcome this problem by using adjustable center axle pivot drop brackets which contain a unique cam bolt used to adjust camber. This all but eliminates the need for expensive camber bushings. In extreme cases, the combination of camber bushings and adjustable center axle pivot drop brackets can be utilized to solve camber problems that, otherwise, are impossible to correct.

The rear Skyjacker Softride leaf springs offered in upgrade kits are a two stage progressive multi-leaf pack, which makes the load carrying capabilities equal to or greater than the factories GVWR specifications. They are tapered cut and shotpeened to provide an excellent ride and superior strength. Top quality steel is used in the construction as well as Teflon friction pads which reduce inter-leaf wear. When the spring is compressed the pads will allow the leafs to slide against each other. This provides an excellent ride in addition to superior suspension travel.

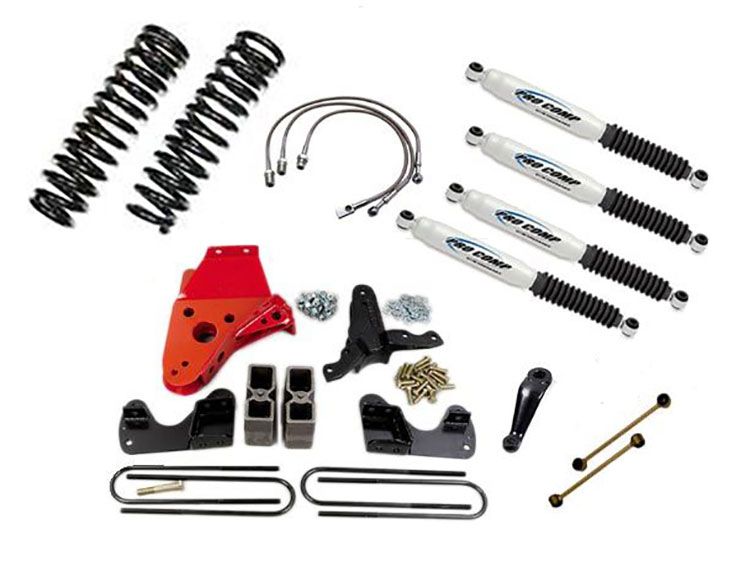

Budget Package Includes:
- (4) Pro Comp Shocks w/ Boots
- Brake Lines
- Pitman Arm
- Front BDS Suspension Coil Springs
- Left and Right Hinge Brackets
- Radius Arm Brackets
- U-Bolts
- Sway Bar Brackets

Important NotesDue to heavy duty center pivots it will require camber bushing if camber needs to be adjusted.
ManufacturerJack-It
MakeMazda
ModelPickup
Year Spans1993,1994,1995,1996,1997
Lift Height6 inch
2WD/4WD4WD
