2" Tacoma 2005-2015 Toyota 4WD Lift Kit (w/Nitro Plus Shocks) by Old Man Emu

Old Man Emu's 1004K / 1005K 2-inch suspension system for the 2005 to 2015 Toyota Tacoma is engineered to improve ride quality, control, load-carrying capacity, and ride height. When planning an off-road build, it's essential to consider any heavy components you plan to add, as they can gradually compress your suspension and cause the vehicle to sag. Choosing an Old Man Emu integrated suspension kit helps prevent this issue, as its engineers have carefully tuned and matched suspension components for various weight ranges.

This lift kit includes Old Man Emu Nitrocharger Plus front struts and rear shocks, featuring a twin-tube design with an outer reserve tube to protect internal components during off-road use. The Nitrocharger Plus is an ideal upgrade for 4WD enthusiasts seeking enhanced vehicle control, comfort, ride height, and load-carrying capacity. The front struts are paired with new front coil springs, providing 1.8 inches of front lift for additional fender/tire clearance.

In the rear, Old Man Emu Darkar leaf springs provide 2 inches of lift. These premium springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature-packed, Emu Dakar leaf springs will deliver vastly improved ride, handling, and load-carrying capability. You can have a standard load rating or 660 lbs constant load rating (see options).

Features and Benefits:

• 2-inch front lift / 2-inch rear lift
• Provides a 2-inch lift in the front, supporting a front weight range of 0-330 lbs.
• Dakar premium rear leaf springs lift the rear 2-inches with standard load rating or 660 lbs constant load.
• Includes Old Man Emu Nitrocharger front struts and rear shocks with a twin-tube design for off-road performance.
• Enhances ride quality, control, load-carrying capacity, and ride height.
• Front coil springs are double scragged to reduce spring stress and enhance spring life.
• Greasable rear leaf spring pin kit, u-bolts and poly spring bushings included
• Prevents suspension sag caused by the weight of added off-road components.
• It provides a comfortable ride by matching suspension components to handle various loads.
• It is an ideal upgrade for 4WD enthusiasts seeking improved vehicle control, ride height, and load-carrying capability.

Nitrocharger Plus Features

• Twin-Tube Nitrogen Charged Gas Design
• Heavy-gauge steel shock body (1.6mm)
• Durable yellow powder-coat finish
• 18 mm induction hardened chrome piston rod
• 5-position spring seat adjustment system with included coil seat spacers for precise ride customization

Dakar Rear Leaf Spring Features

• Load: Designed for vehicle with no constant load or 660 lbs constant load.
• Draw tapered and diamond-cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This increases ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt clamps and liners: The leaf clamps are bolted to allow the installation of anti-squeak nylon liners.
• Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set', reducing the risk of sagging. Load testing ensures the spring meets the required specifications.
• Military wrap: Designed to provide added safety.
• Anti-friction pads: Grazeable nylon interleaf liners reduce friction at the leaf tips, where the load is the greatest.
• Flat axle seat area: Allows a positive, safe axle mount, reducing spring stress and increasing spring life.
• Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double a spring's life.
• Two-stage leaf pack: This feature is featured on most rear springs for optimum comfort. When unladen, the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

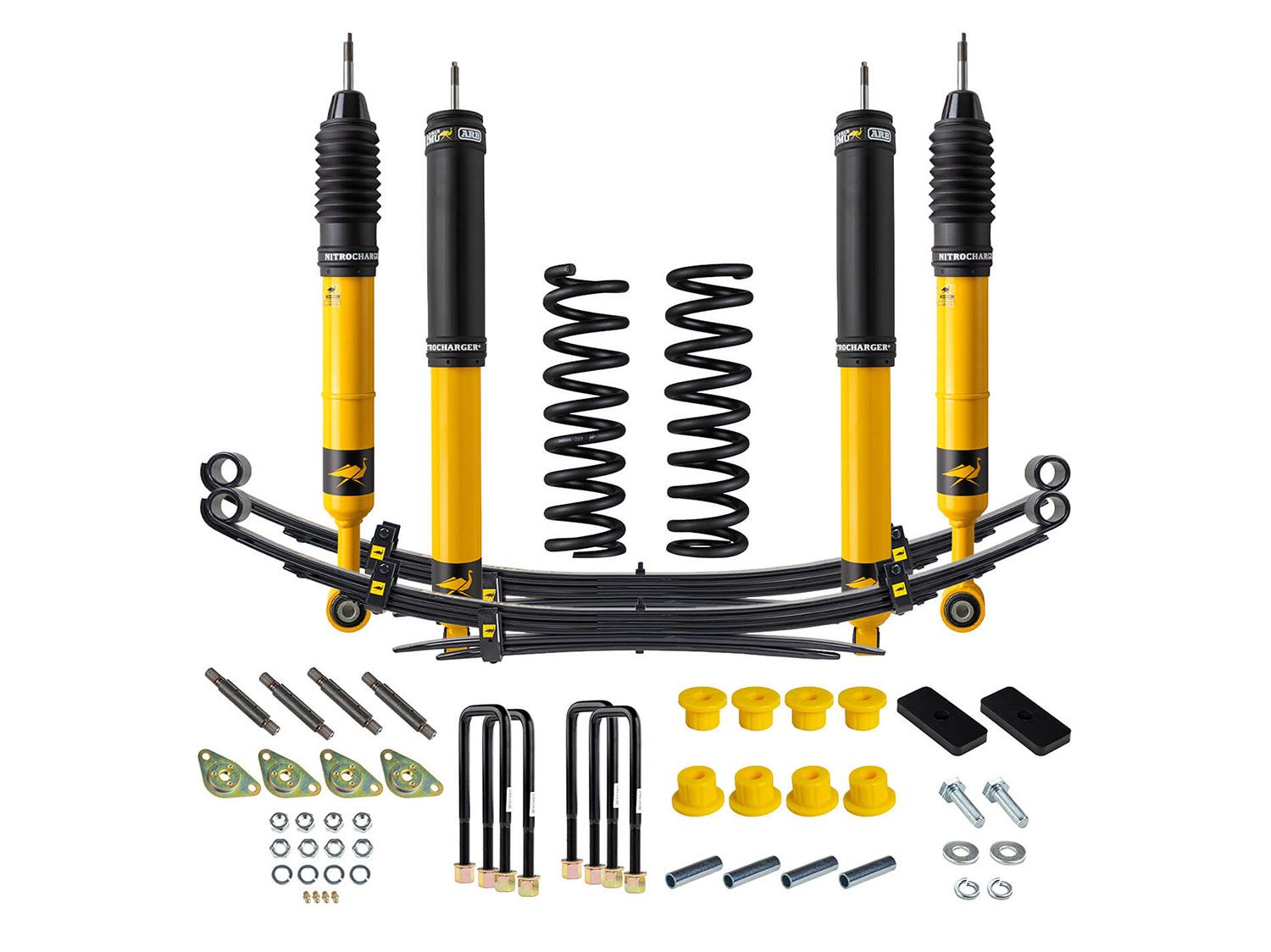

1004K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Rear Leaf Spring Bushing Kits - OMESB108
• (2) Rear Leaf Springs - EL111R
• (2) Rear NitroChargeer Plus Shocks - 63091
• (2) Front Coil Springs - 4002
• (2) Front NitroCharger Plus Struts - 93000
• (2) Rear Greasable Pins - OMEGP9

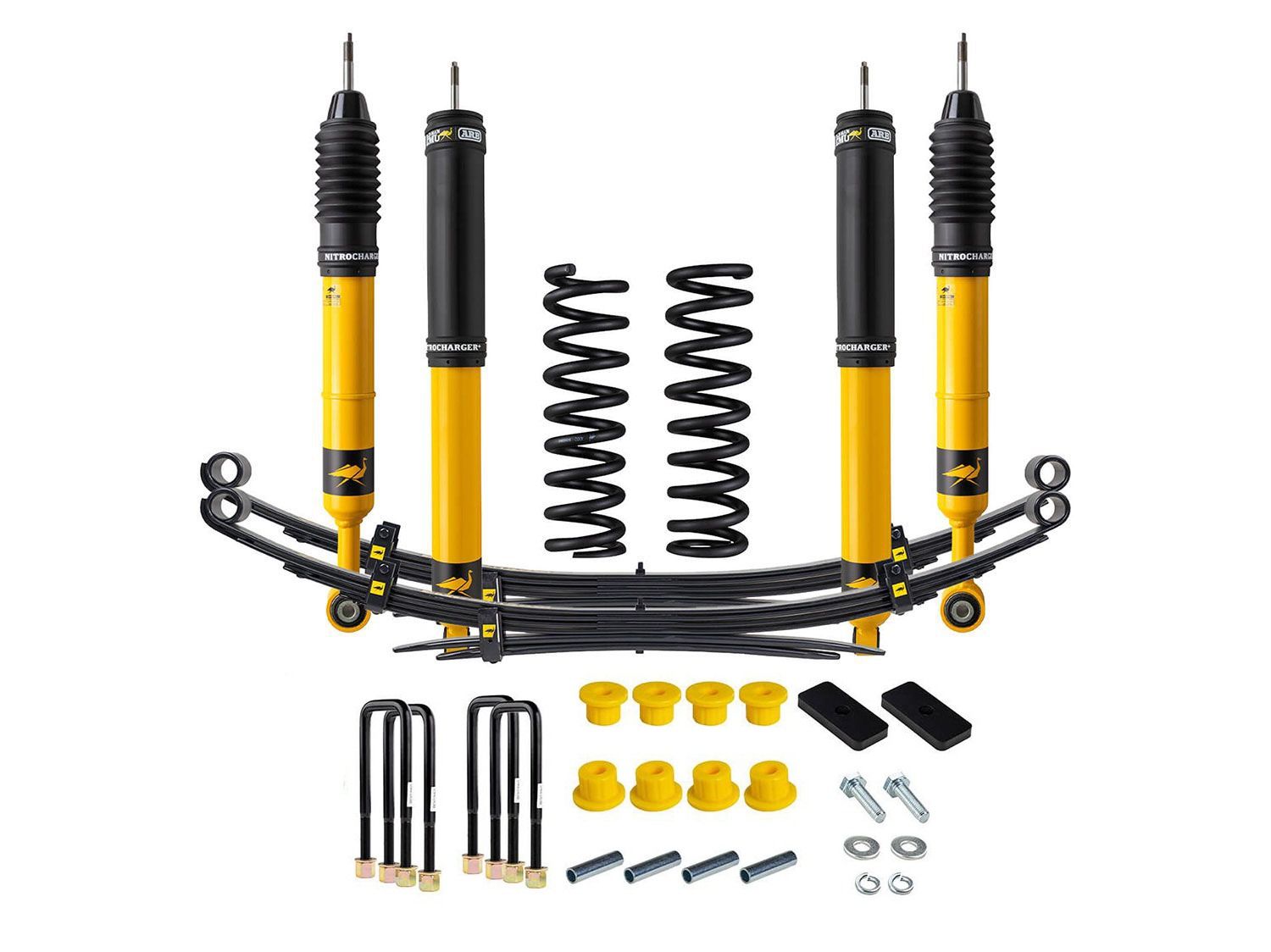

1005K Kit Components

• (1) Rear Driveshaft Spacer - FK29
• (4) Rear U-bolts - OMEU53B
• (2) Rear Leaf Spring Bushing Kits - OMESB108
• (2) Rear Leaf Springs - EL112R
• (2) Rear NitroChargeer Plus Shocks - 63091
• (2) Front Coil Springs - 4002
• (2) Front NitroCharger Plus Struts - 93000
• (2) Rear Greasable Pins - OMEGP9
