3.5" 2009-2013 Ford F150 4WD SST Lift Kit by ReadyLift

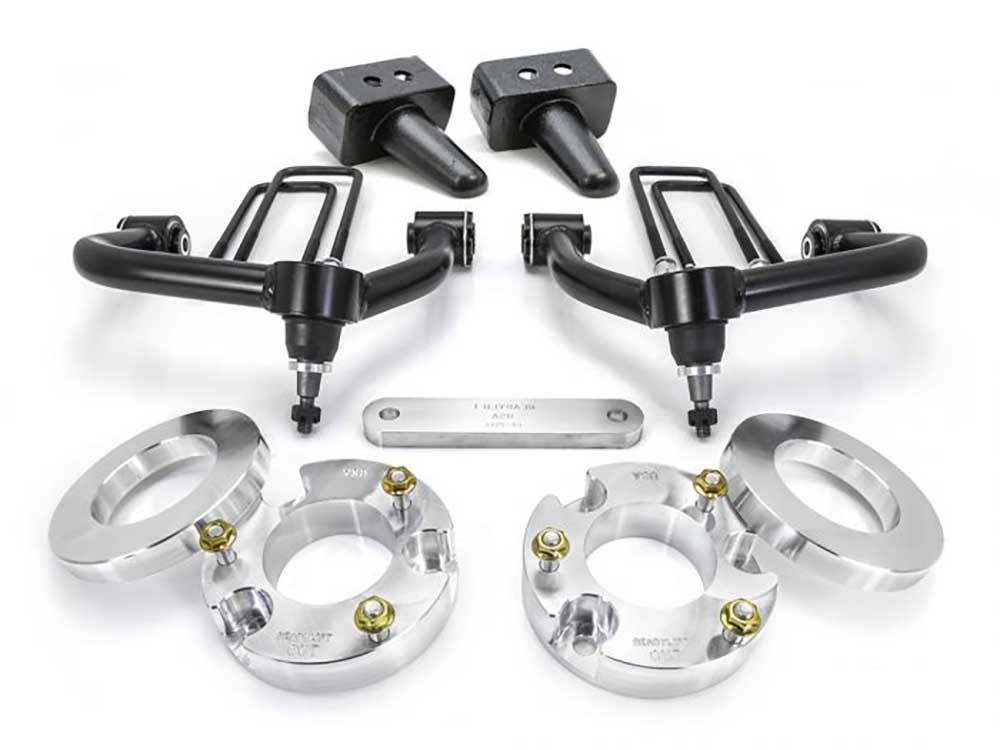

The ReadyLIFT 69-2302 3.5" SST Lift Kit is a complete front and rear suspension solution designed to give your Ford F-150 an aggressive stance, improved performance, and clearance for larger tires—all while maintaining factory ride quality.

This system provides approximately 3.5" of front lift and 2" of rear lift, creating a well-balanced, level appearance that’s not overly tall but offers enough clearance to run up to 35x11.50 tires. Built around ReadyLIFT’s proven SST design, this kit delivers the perfect combination of strength, geometry correction, and ease of installation.

At the core of this system are heavy-duty DOM tubular upper control arms featuring a corrected 14-degree ball joint cup to maintain proper suspension geometry and alignment. These arms include heavy-duty ball joints along with ReadyLIFT’s upgraded TCT free-floating pivot bushings, which are self-lubricating and designed to eliminate friction for long-lasting performance and improved durability.

Front lift is achieved with CNC-machined billet aluminum offset top-mount spacers, engineered to reposition the strut while maintaining proper suspension travel and ride quality. A billet preload spacer is also included to add lift while acting as a droop limiter, helping protect CV axles and maintain reliability on 4WD models.

In the rear, the kit includes OEM-style cast lift blocks with integrated bump-stop landing pads and dual locator pins, along with extended U-bolts for a secure, durable installation. For trucks equipped with a two-piece driveshaft, a carrier bearing spacer is included to correct driveline angles.

This thoughtfully engineered system offers an easy installation while improving stance, handling, and overall driving performance both on and off the road.

Features & Benefits

• Provides approximately 3.5" front lift and 2" rear lift
• Allows clearance for up to 35x11.50 tires
• Heavy-duty DOM tubular upper control arms with corrected geometry
• 14-degree ball joint cup improves alignment and handling
• Includes heavy-duty ball joints for strength and durability
• TCT free-floating pivot bushings are self-lubricating and reduce friction
• CNC-machined billet aluminum offset strut spacers maintain ride quality
• Billet preload spacer helps protect CV axles and maintain durability
• OEM-style cast rear lift blocks with locator pins and bump stop pads
• Carrier bearing spacer included for two-piece driveshaft applications
• Easy installation with complete hardware included
