Ram 2500 2014-2026 Dodge 4wd Rear Coil Spring to Air Bag Conversion Kit by LOGIQ

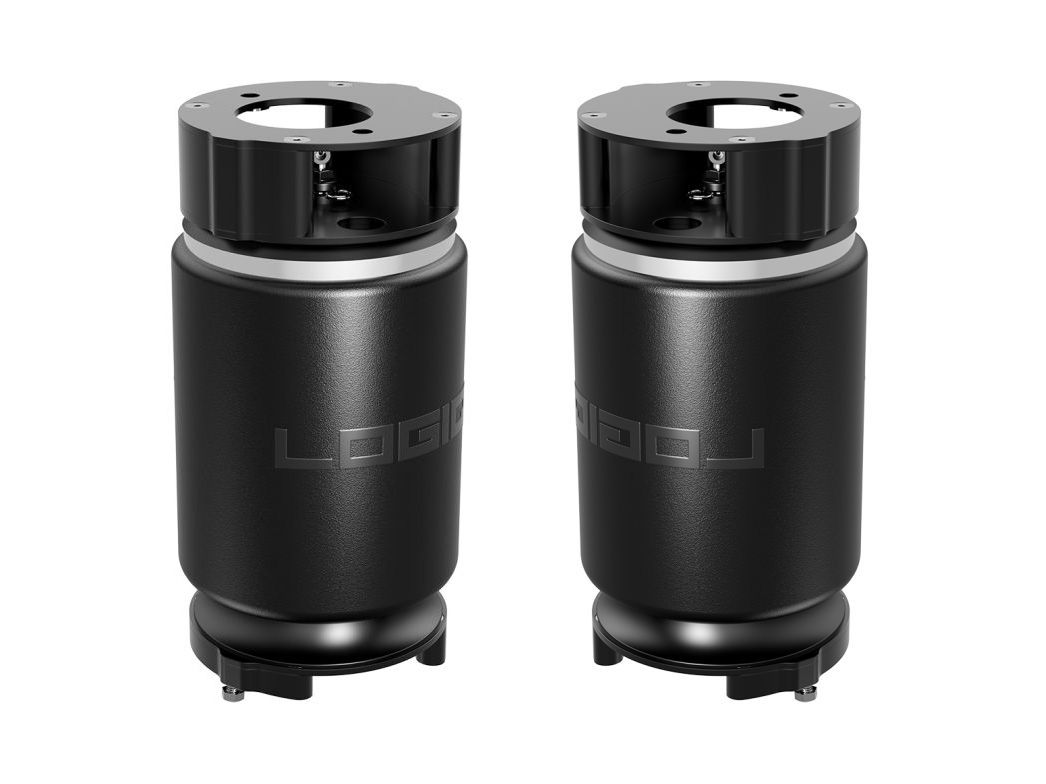

This LOGIQ (a ReadyLift company) 89-12140 conversion kit for the Ram 2500 is engineered to replace the factory coil springs with adjustable air springs. Featured in the kit are LOGIQ air springs that utilize a unique sleeve bag design, which is superior to traditional double-bellow designs. Giving increased suspension travel, stability, and load support while having a natural frequency of 1.6Hz (double bellow bags have a frequency of over 2.5Hz), which translates into excellent ride quality. Once installed, this kit will enhance load support and handling while towing or hauling a heavy load, and is fully adjustable for a smooth or firm ride.

Features and Benefits:

• Replaces the factory coil springs with adjustable air springs
• Keeps the rear end from sagging while towing or hauling a heavy load
• LOGIQ Sleeve Style Air Bags are rated at 1.6Hz natural frequency = smoother ride than traditional double-bellow air springs
• 100% Pre-Assembled for more straightforward installation
• Improves ride quality, stability, handing, and load support
• Increases level load capacity
• Heavy duty custom fit brackets
• Adjustable air pressure from 10 to 150 PSI
• Can be paired with AIRIQ air compressor systems that allow for control of air pressure from phone app
• Adjust ride firmness (or softness) manually or with optional air compressor system
• Fits with most 5th Wheel Hitches
• Limited Lifetime Warranty

Included Components

• Driver Side Air Spring Assembly (air springs and brackets)
• Passenger Side Air Spring Assembly (air springs and brackets)
• Hardware Kit
• Manual Inflation Kit
