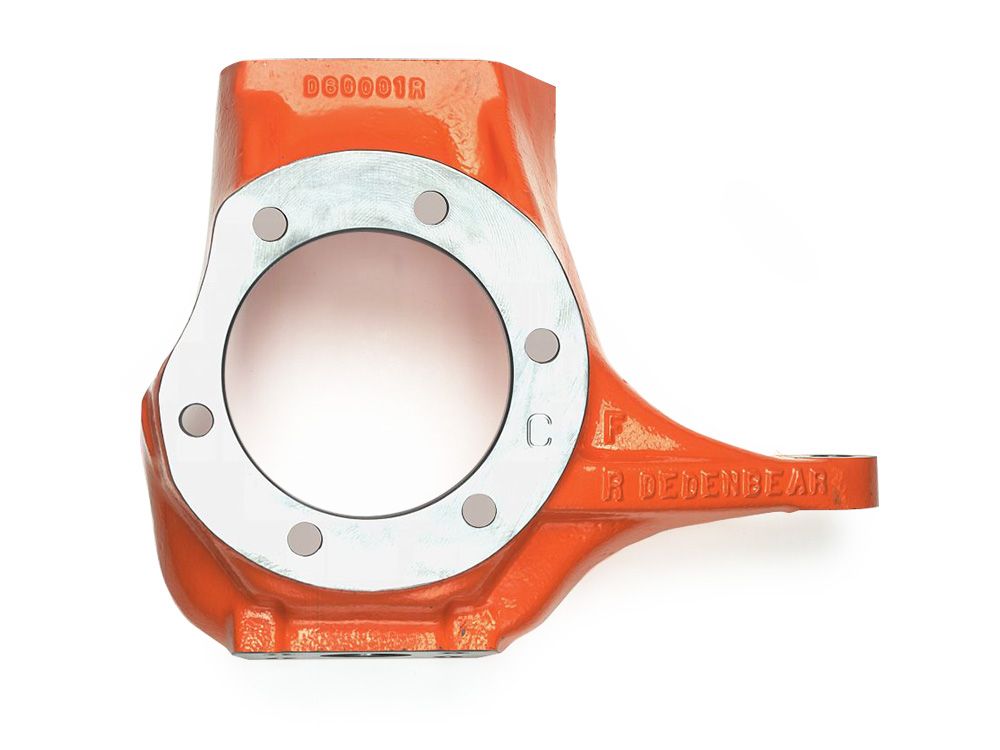

Ford Heavy Duty Dana 60 Kingpin Steering Knuckle (passenger side) by Reid Racing

This Reid Racing D60001FR flat top steering knuckle is ideal for Ford Dana 60 high steer / crossover steering setups.  Featuring a 5th bolt for high steering arms to increase clamping force and strength. Reid Racing heavy duty knuckles are made from high strength ductule iron using extra material and ribbing.

Top Features & Benefits

• Premium knuckles for high steer / crossover steering setups
• Strongest Dana 60 knuckle on the market
• 100% interchaneable with a Ford kingpin knuckle expect use strong Chevy tie rod ends
• 5th bolt hole for high steer arms (4 bolt arms still fit)
• Cast from high strength ductile iron
• Beefed up with extra material and ribbing
• Flat tops machined and drilled for high steer arms
• Tie rod holes can be drilled to accept 3/4″ rod end
• Cast-in steering stops eliminate bent stop bolts that can cause u-joint and axle failures
• Powder coated bright orange for long lasting looks
• Fully machined and ready for installation
• Ford versions are based on the stronger Chevy casting: they will accept factory Ford spindles and brakes, but they use the lower Chevy style steering arm and Chevy tie rod taper. Some steering modifications may be needed on Ford applications
• Knuckles for off road use only, there is no warranty on this product

Installation Instructions

D60001F Instructions.pdf
