2.5" 1973-1987 GMC Jimmy 4WD Lift Kit (w/rear leaf springs) by Skyjacker

Skyjacker C125AKS 2.5 Inch Suspension Lift System for 1973-1987 GMC Jimmy is a complete leaf-spring suspension upgrade designed to improve ground clearance, ride quality, and off-road capability while maintaining dependable handling. Unlike spacer-based lift systems, this kit includes both front and rear replacement leaf springs, providing a true suspension lift that enhances wheel travel, load support, and overall suspension performance.

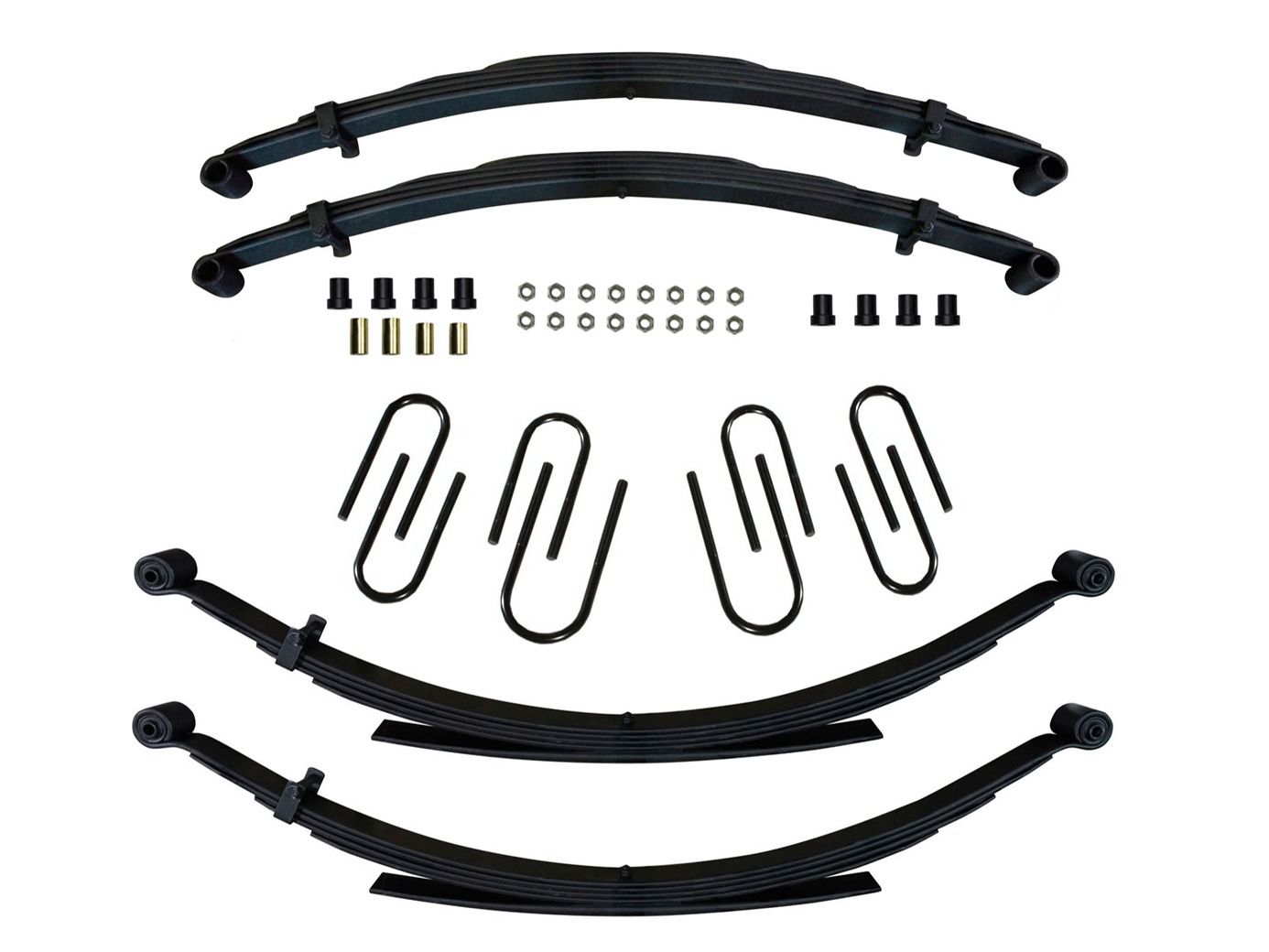

The system includes front and rear leaf springs, front and rear U-bolt kits, and a complete bushing kit for a comprehensive installation. By replacing the factory leaf packs, the C125AKS delivers a balanced 2.5-inch lift while helping restore suspension performance on older trucks. The additional ride height provides clearance for larger wheel-and-tire combinations while giving your classic Chevy pickup a more aggressive stance.

Multiple shock options are available to match your intended use. Choose from no shocks for custom applications, Black MAX shocks for dependable everyday performance, Hydro 7000 hydraulic shocks for a smooth ride, Nitro 8000 nitrogen-charged shocks for enhanced control, or M95 monotube shocks for improved damping consistency and off-road capability.

Features & Benefits

• Fits 1973-1987 GMC Jimmy models
• Provides 2.5 inches of front lift / 2 inches of rear lift
• Includes replacement front and rear lift leaf springs
• Complete front and rear U-bolt kits included
• Includes front leaf spring bushing/sleeve kit
• Rear springs include pre-installed rubber bushings
• Creates clearance for up to 33x12.50 tires
• Compatible with 15-20 x 8-10 inch wheels
• Works with OEM to 5.75-inch wheel backspacing
• Provides a true suspension lift using replacement leaf springs
• Improves ground clearance and off-road capability
• Available without shocks or with Black MAX, Hydro 7000, Nitro 8000, or M95 Monotube shocks
• Moderate installation with no cutting or welding required
• Approximate installation time: 6 hours
• Additional fitted leafs required for Big Block and diesel-equipped models
