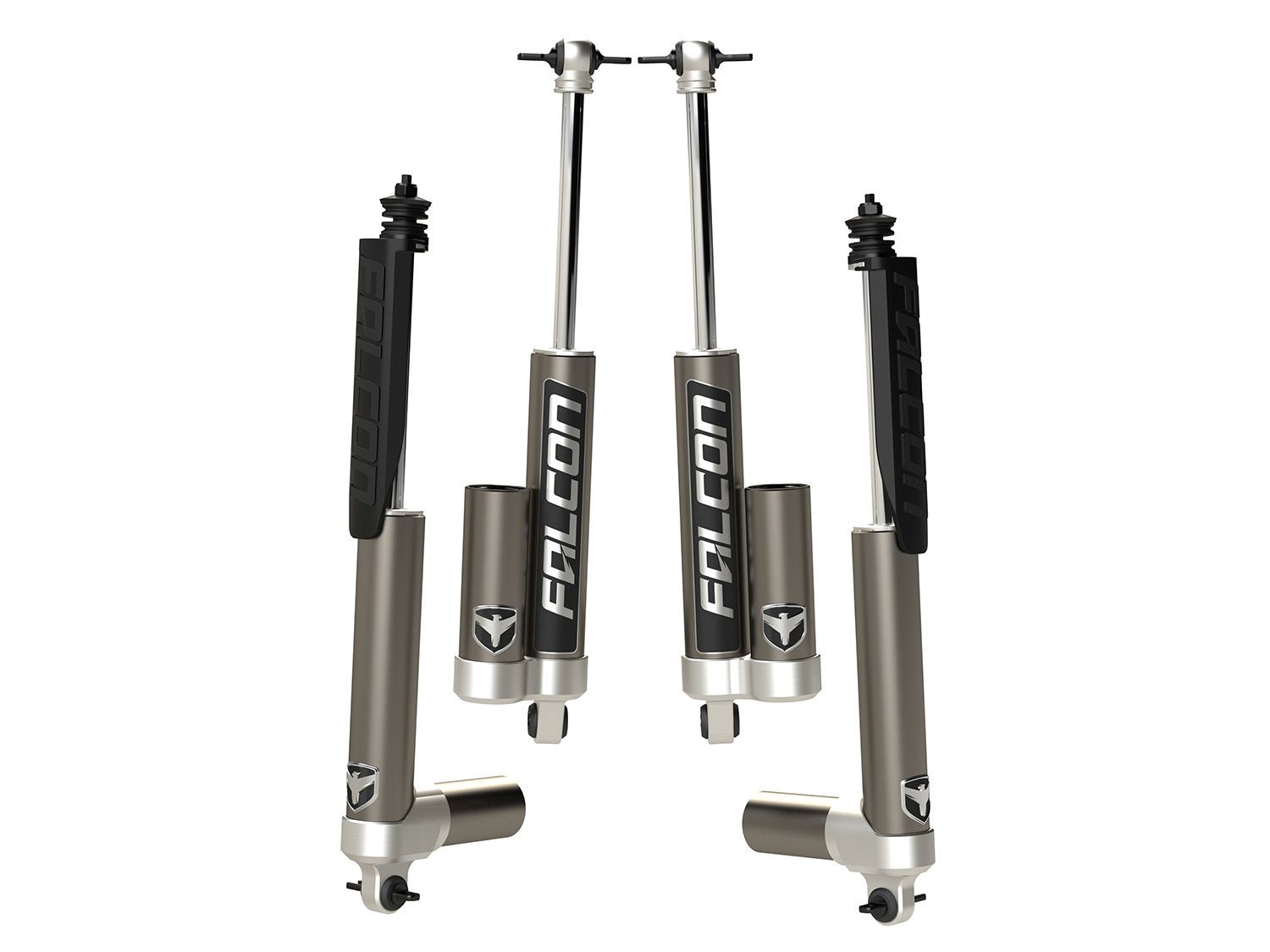

Teraflex's 04-01-30-400-304 Falcon 3.0 Piggyback Shocks for the Jeep Wrangler TJ offer heightened stability, enhanced ride quality, and on-road comfort. At the same time, the increased compression damping ensures a superior off-road handling experience. These shocks are meticulously optimized to excel in both on- and off-road driving scenarios.

Construction: Featuring a 2.3-inch 6061-T6 aluminum alloy shock body that resists wear & protects internal components while providing superior heat dissipation.  A huge 3/4 inch induction hardened chrome plated shaft will make buckling extremely unlikely. All hardware is inspected with a 1,000-hour salt spray corrosion resistance test.

Piggbacky Upgraded: The piggyback reservoir design increases oil and gas capacity, delivering enhanced performance with reduced heat. This strategically moves the gas charge to a piggyback reservoir, maximizing travel and significantly increasing oil flow.

VOD: Falcon’s proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp-up for increased damping volume, which improves vehicle feedback and control during low-speed driving. VOD also improves the shock absorber’s ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.

Features and Benefits:

• Better Ride & Control: 3.0 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on the road, while the increased compression damping provides more aggressive off-road handling
• Increased Oil Capacity: The piggyback reservoir design increases oil capacity from reduced heat and better dampening, flows 6x more oil than restrictive reservoir hose designs
• Front & Rear: Front & rear monotube piggyback shocks
• High Performance: Race-inspired optimized tuning for excellent on and off-road driving with improved stability
• Installation: Estimated 1.5-hour installation time
• Extra Protection: Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
• Aluminum Body: 2.3" Diameter 6061-T6 aluminum alloy shock body protects components & dissipates heat
• Driving Conditions: Ideal for daily driven vehicles, off-road excursions, and the severe enthusiast wanting a consistent, controlled feel through all driving conditions
• 3/4 inch Shaft: Large shaft to resist buckling, chrome plated to resist corrosion from the elements
• VOD: (Volume Optimized Damping) features a digressive linear piston, reduces shock bottoming at full compression or over uneven terrain
• Warranty: 3-year warranty offered through Teraflex
