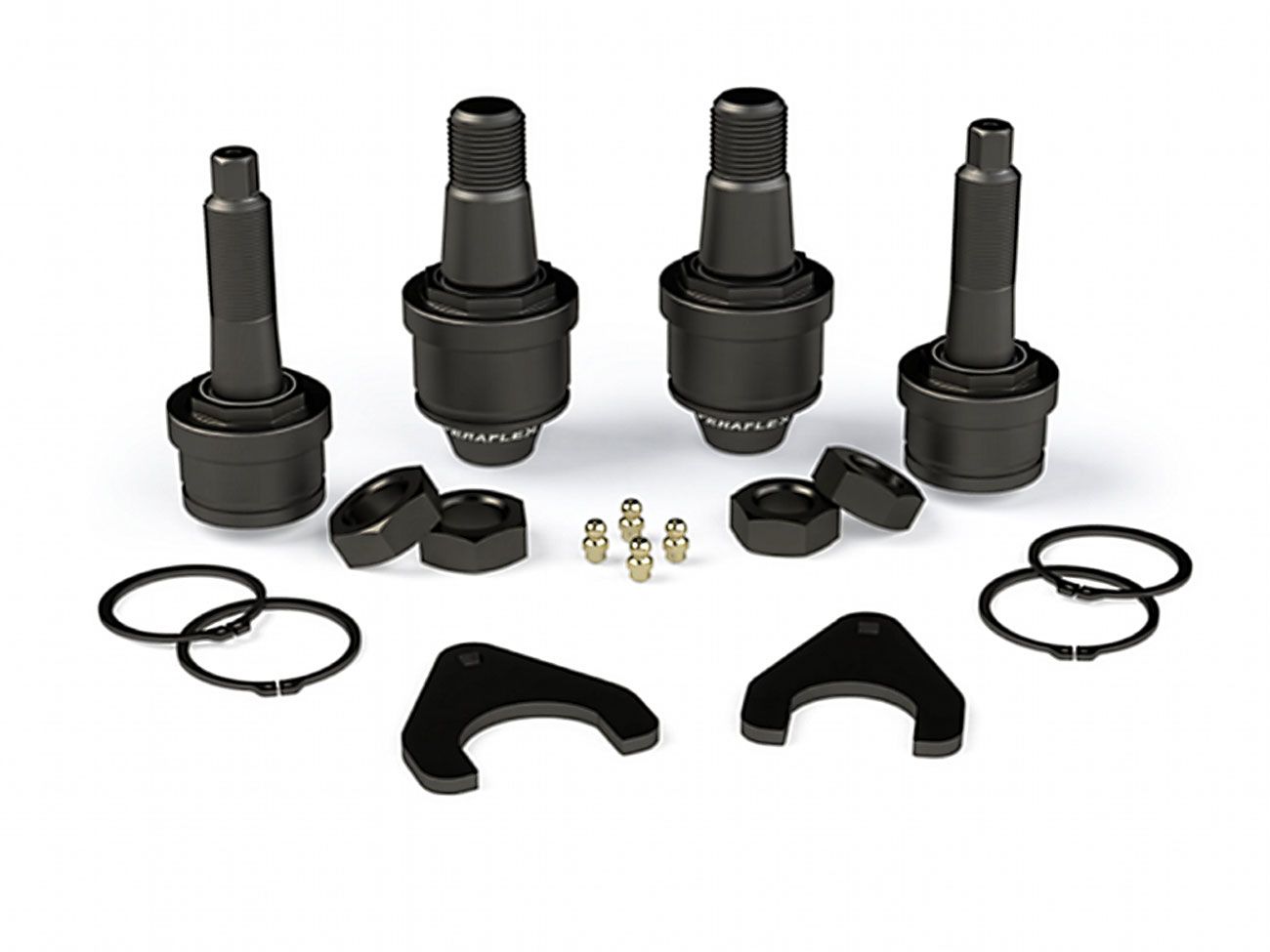

Excursion 2000-2005 Ford 4WD (w/Dana 60 Axle) HD Upper & Lower Ball Joints (2-Upper & 2-Lower) by Teraflex

The Teraflex HD Wear-Adjustable Ball Joints (SKU: 3452030) are engineered to eliminate downtime, costs, and the frustration of traditional ball-joint rebuilds. Designed for Ford Excursion Dana 60 axles, these heavy-duty ball joints are built to withstand the increased loads caused by oversized tires, added vehicle weight, and aggressive wheel offsets.

Unlike conventional ball joints that rely on failure-prone crimped retainers, TeraFlex uses a threaded adjustment collar and retaining ring that prevent separation and allow precise preload adjustment. As the joint wears over time, preload can be easily reset on the vehicle using basic hand tools—no press, no teardown, and no rebuild required.

Each joint features a massive 32mm heat-treated chromoly ball stud paired with a hardened tool-steel wear plate to resist deformation under extreme loads. Dual helical grease grooves channel old grease out through a low-profile seal, keeping contaminants out while extending service life.

From daily driving to serious trail abuse, TeraFlex HD ball joints deliver consistent performance, long-term durability, and simple serviceability—making them an ideal upgrade for high-demand Dana 60 applications.

Features & Benefits

• Designed for Dana 60 axle applications
• Wear-adjustable design eliminates the need for rebuilding
• Threaded retaining ring prevents ball joint separation
• 32mm heat-treated chromoly steel ball stud for maximum strength
• Tool-steel wear plate resists socket wear under heavy loads
• Heat-treated steel housings with corrosion-resistant coating
• Dual helical grease grooves improve lubrication and longevity
• Low-profile single-lip dust seal resists damage and contamination
• On-vehicle wear adjustment using simple hand tools
• Easily accessible grease zerks, even with axle shafts installed
• Includes factory-style nuts and heavy-duty snap rings
