2.5" 2007-2021 Toyota Tundra LIft Kit (w/Bilstein 6112 Series Assembled Coil-Overs, 5160 Rear Shocks, UCAs and Rear Lift Options) by Jack-it

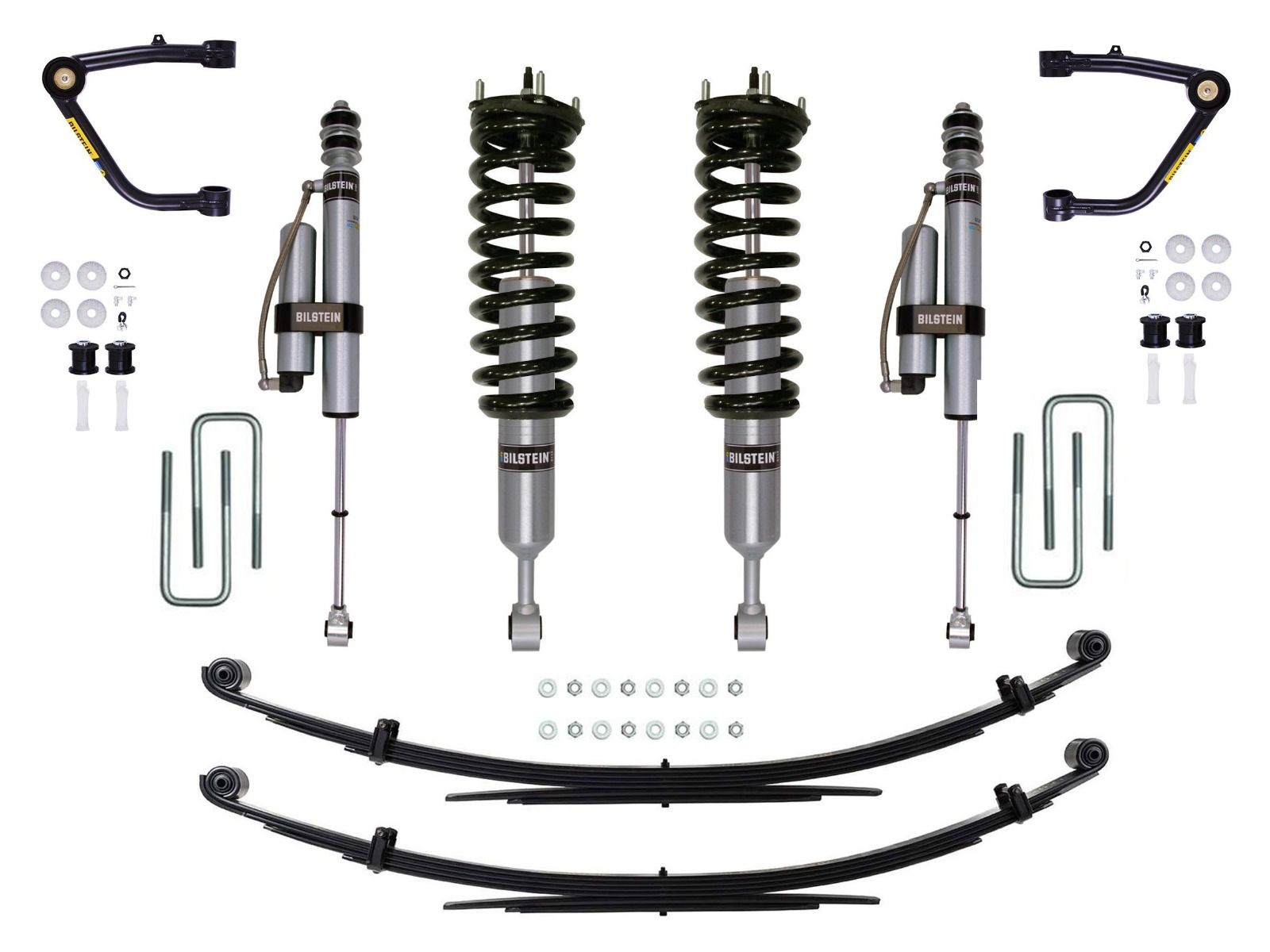

This 2.5-inch Lift Kit for the Toyota Tundra is custom-built by Jack-it using high-end components for a great on and off-road performance. This kit features pre-assembled Bilstein 6112 Series Front Adjustable Height Coil-Overs paired with Bilstein 5160 Series Remote Reservoir rear shocks, Bilstein Upper Control Arms and three different lift options for the rear (BDS rear shackles, Icon Vehicle Dynamics 1.5 inch leaf packs or Old Man Emu 2.5-inch lift full replacement rear leaf springs for the ultimate in off-road performance and amazing good looks!

The Bilstein 6112 Front Shock / Coil Spring Lift Kit (Coil-Over) 47-310971 for the Toyota Tundra is an excellent solution for lifting the front end of your vehicle between .75 and 2.5 inches for 4WD models (1.5 to 3.3 inches on 2WD models). Using Bilstein's snap-ring ride height adjustment, these can easily be set at different ride heights before installation. With a massive 60mm digressive piston, these mono-tube gas shocks are ideal for those serious about their off-roading adventures. The zinc coating finish protects the metal from oxidation and improves durability while giving the shocks a great look.

This Bilstein 5160 Series 25-311365 Remote Reservoir Rear Shock Absorber is custom valved for the Toyota Tundra. These feature a remote reservoir that dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity.  A corrosion resistant zinc plated finish with a clear coating is used for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Bilstein Upper Control Arms (UCAs) are CAD-designed with increased caster angles. These caster angles maintain correct alignment specifications with lifted front suspension. Bilstein Upper Control Arms maintain full range of motion. Utilizing direct-fit upper control arms expands caster angles and improves ball joint pivot angles for more straight-line stability. The control arms provide greater strength and toughness than standard OEM control arms.

Pre-Assembled 6112 Advantages

Take out the hassle of 6112 assembly with this special package, Jack-it has built.

The Bilstein 6112 kits require assembly before installation, which involves mounting the coil springs onto the struts using a coil spring compressor (a commercial-grade compressor is recommended). Due to the high tension required to compress the springs and the potential risk of injury, an experienced technician is the best person to handle this process.

To simplify assembly and installation for our customers, Jack-It offers these Bilstein 6112 coilovers pre-assembled. Each set comes with new top hat mounts and hardware, and is pre-set to one of four available lift heights to suit your vehicle best (select in options above). Jack-It has specialized in suspension products for trucks and SUVs since 1994. Our experienced staff and technicians ensure every kit is configured and assembled correctly for optimal performance. Please note: selecting the assembled option adds approximately 2 to 7 business days to order processing time.

Features and Benefits

• Adjustable Front Ride Height (.75 to 2.5 inches 4WD, 1.5 to 3.3 inches 2WD)
• 6112 Coilovers are pre-assembled by Jack-it professional technicians
• 6112 & 5100: Great looking silver zinc finish with clear coat for oxidation resistance
• 6112: Massive 60mm digressive piston improves ride comfort
• 6112 Coilovers Includes Front (2) Struts, (2) Springs, (2) Spring Seats, (2) Top Hat Mounts
• 5100 Shocks fit models with 0 to 1 inch of rear lift
• Bilstein Upper Control Arms (UCAs) increase caster angles to maintain correct alignment specifications with lifted front suspension
• (3) Rear Lift Options: BDS 1-inch Lift Shackles, Icon 1.5 inch Leaf Packs, Old Man Emu 2.5-inch lift leaf springs
