6.5" 2014-2018 Chevy Silverado 1500 4WD (w/cast steel factory arms) - Lift Kit by Zone Brand: Zone | SKU: C25N
$1150.85
- +
1150.85

6.5" 2014-2018 Chevy Silverado 1500 4WD (w/cast steel factory arms) - Lift Kit by Zone

Brand: Zone | SKU: C25N
From $1,150.85

6.5" 2014-2018 Chevy Silverado 1500 4WD (w/cast steel factory arms) - Lift Kit by Zone

Brand: Zone | SKU: C25N
From $1,150.85


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

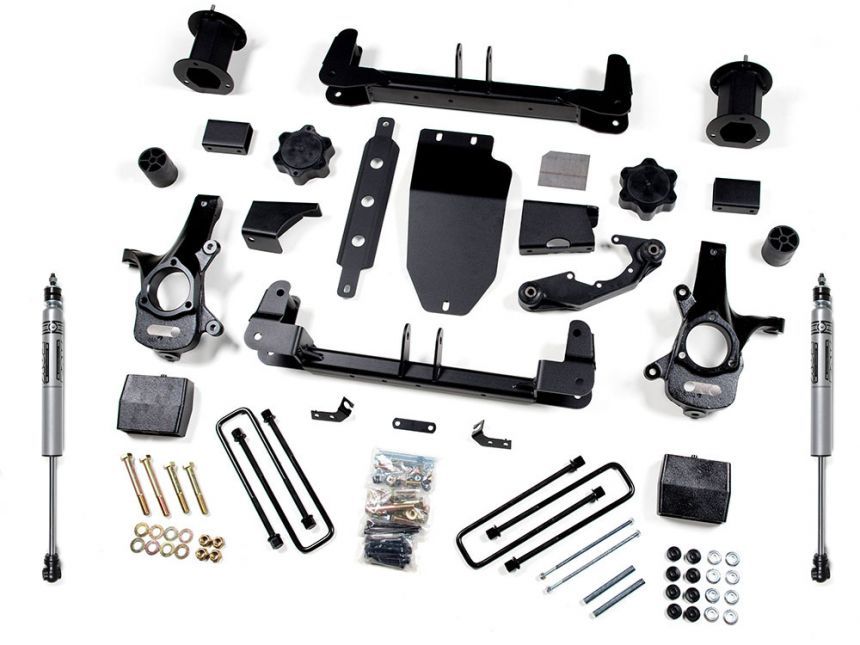

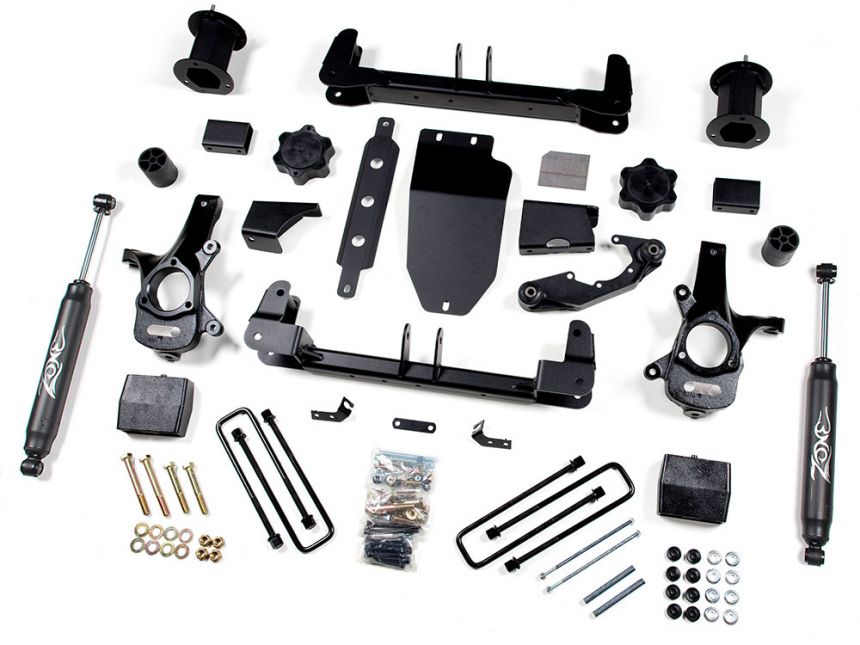

This Zone C25N lift kit system for the Chevy Silverado 1500 includes a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering. A 3-piece differential relocation system is utilized to correct front pinion angle with the center differential brace tying front and rear crossmembers together for a sturdy differential mount. This coupled with the differential skid plate and crossmember brace create an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance.

To retain factory ride quality a pair of bolt-on strut spacers are used to provide lift. These install easily without the need to disassemble the factory strut. Also included in the kit are a pair of CV spacers, brake line brackets, sway bar relocation, and all the necessary hardware to complete the install.

To lift the rear and level the stance a 5 inch tapered block is utilized along with longer u-bolts, brake line bracket and your choice of hydro or nitro shocks.

Top Features and Benefits

  • 6.5 inch front lift / 5 inch rear lift
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
  • Heavy-duty differential skid plate improves offroad protection
  • Upper strut spacers lift the front end while maintaining a factory ride
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles
  • Rear lift block and longer U-bolts for easy installation and level stance
  • Weld-in frame support plate for additional strength
  • Made in the USA
  • Limited Lifetime Warranty
Important Notes

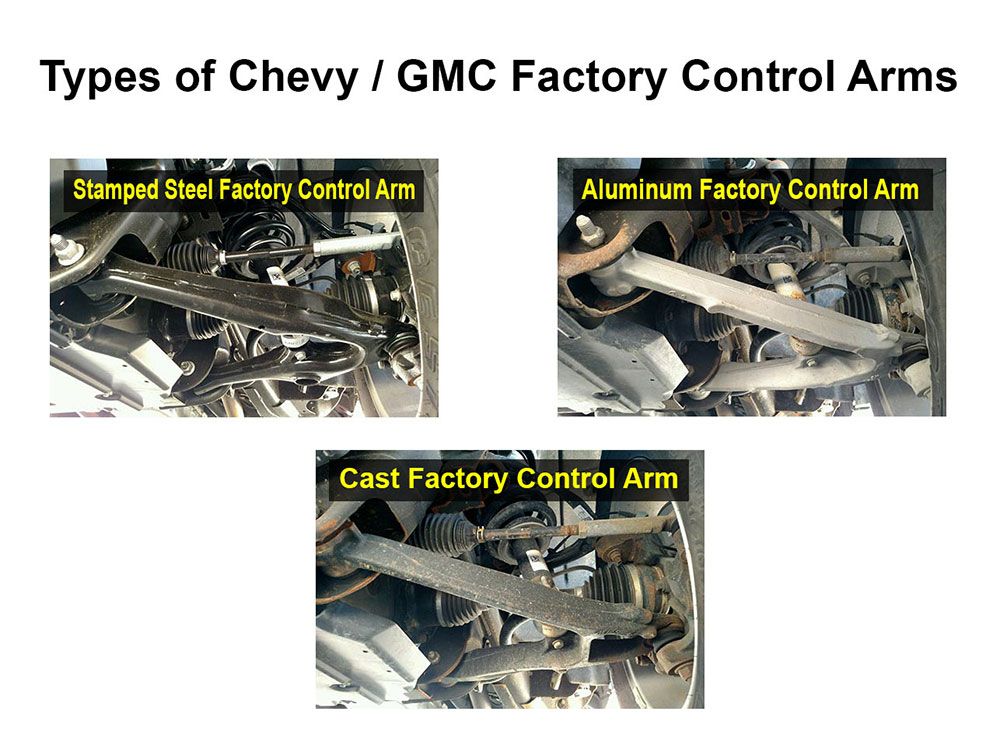

  • This kit is designed to fit vehicles equipped with factory control arms that are cast steel only. Will not fit with factory aluminum or stamped steel control arms. (see additional images above for visual reference of GM control arm types)
  • All wheel drive models require drive line modification
  • Frame bracket modification and minor welding required
  • To reduce trimming required with 20 inch wheels, 5.75 inch backspacing recommended
  • Add-a-leaf option recommend for crew cab models for a more level stance
  • Note: This lift kit is available to purchase without shocks, however extended shocks are required to install properly
Vehicle Fitment
MakeChevy
ModelSilverado 1500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberC25N
Item Numberzon_c25n
Product LineLift Kits
Lift Height6 inch
