6.5" 2014-2018 GMC Sierra 1500 4WD (w/cast steel factory arms) - Lift Kit by Zone

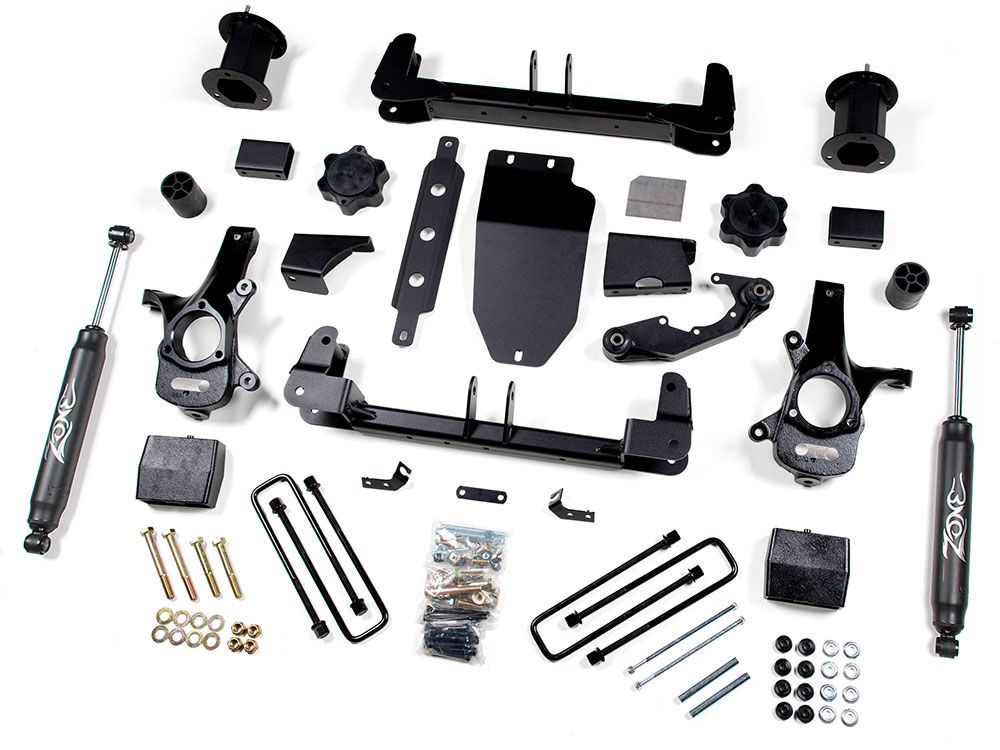

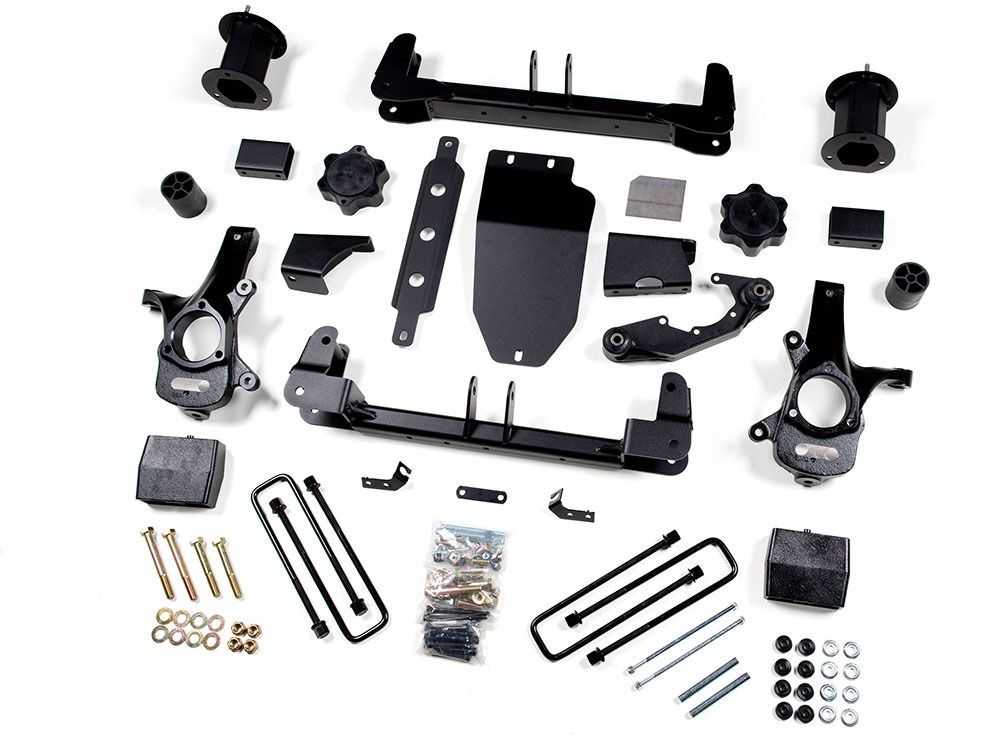

This Zone C25N lift kit system for the GMC Sierra 1500 includes a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering. A 3-piece differential relocation system is utilized to correct front pinion angle with the center differential brace tying front and rear crossmembers together for a sturdy differential mount. This coupled with the differential skid plate and crossmember brace create an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance.

To retain factory ride quality a pair of bolt-on strut spacers are used to provide lift. These install easily without the need to disassemble the factory strut. Also included in the kit are a pair of CV spacers, brake line brackets, sway bar relocation, and all the necessary hardware to complete the install.

To lift the rear and level the stance a 5 inch tapered block is utilized along with longer u-bolts, brake line bracket and your choice of hydro or nitro shocks.

Top Features and Benefits

• 6.5 inch front lift / 5 inch rear lift
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• Heavy-duty differential skid plate improves offroad protection
• Upper strut spacers lift the front end while maintaining a factory ride
• Multi-point differential relocation brackets secure front differential for improved CV operating angles
• Rear lift block and longer U-bolts for easy installation and level stance
• Weld-in frame support plate for additional strength
• Made in the USA
• Limited Lifetime Warranty

• This kit is designed to fit vehicles equipped with factory control arms that are cast steel only. Will not fit with factory aluminum or stamped steel control arms. (see additional images above for visual reference of GM control arm types)
• All wheel drive models require drive line modification
• Frame bracket modification and minor welding required
• To reduce trimming required with 20 inch wheels, 5.75 inch backspacing recommended
• Add-a-leaf option recommend for crew cab models for a more level stance
