6.5" 2014-2018 GMC Sierra 1500 2WD (w/cast steel factory arms) - Lift Kit by Zone

The 6.5'' system for the 2WD 1/2-ton GM trucks mimics the geometry of the tried and true, FMVSS No.126 compliant 4WD lift systems.

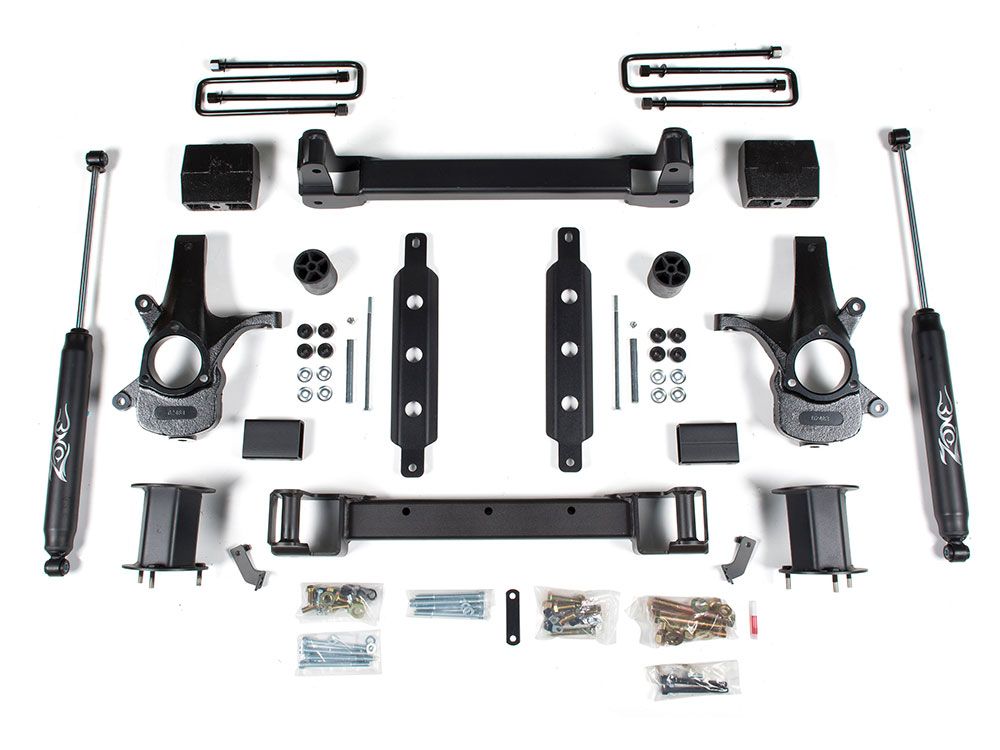

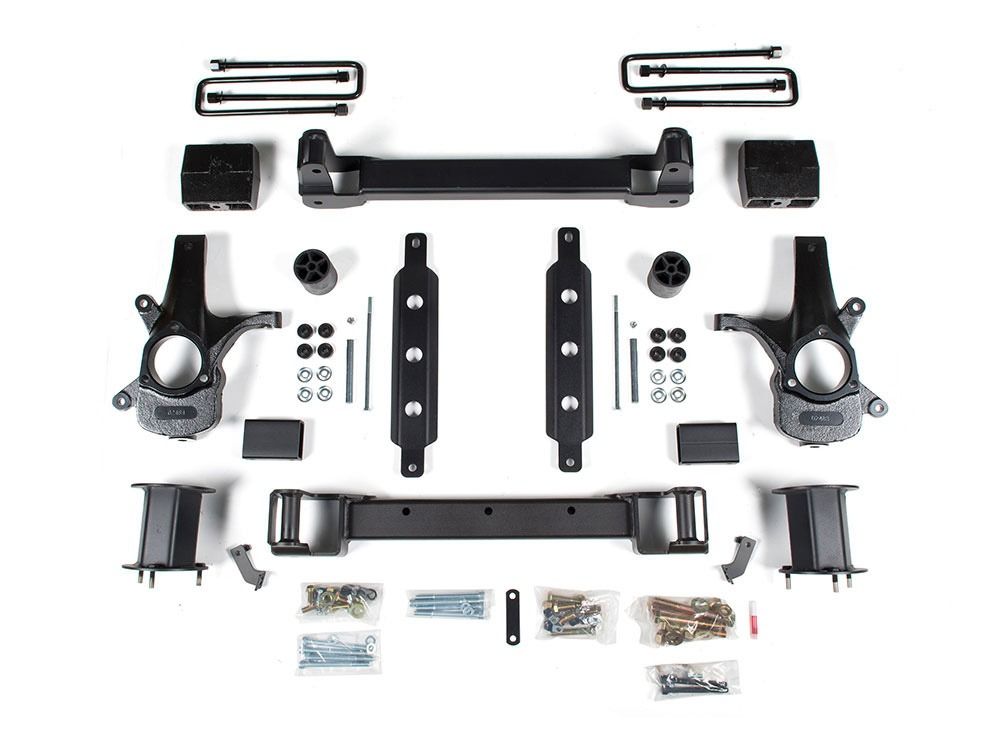

The kits include a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering rack. This coupled with the crossmember braces creates an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance. To retain factory ride quality a pair of bolt-on strut spacers are used to provide lift.These install easily without the need to disassemble the factory strut.

Also included in the kit are brake line brackets, sway bar relocation, rear 5'' blocks, u-bolts, your choice of hydro or nitro rear shocks and all the necessary hardware to complete the install.

This forged steel and forged aluminum control arms from the factory. Zone Offroad Products offers kits to fit both steel and aluminum arm equipped trucks. Check your vehicle before ordering to ensure the correct kit is shipped. Accessories for this lift kit include Zone front skid plate available separately.

As with all Zone Offroad Products, this 6.5 inch lift kit is backed by a limited lifetime warranty.

• This kit is designed to fit vehicles equipped with factory control arms that are cast steel only. Will not fit with factory aluminum or stamped steel control arms. (see additional images above for visual reference of GM control arm types)
• To reduce trimming required for tire fitment, a 20" wheel w/5.75" backspacing is recommended
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
