5" 2010-2012 Dodge Ram 3500 4WD Lift Kit by Zone Brand: Zone | SKU: D16 / D18
$743.4
- +
743.4

5" 2010-2012 Dodge Ram 3500 4WD Lift Kit by Zone

Brand: Zone | SKU: D16 / D18
From $743.40 Regular Price $790.85

5" 2010-2012 Dodge Ram 3500 4WD Lift Kit by Zone

Brand: Zone | SKU: D16 / D18
From $743.40 Regular Price $790.85


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

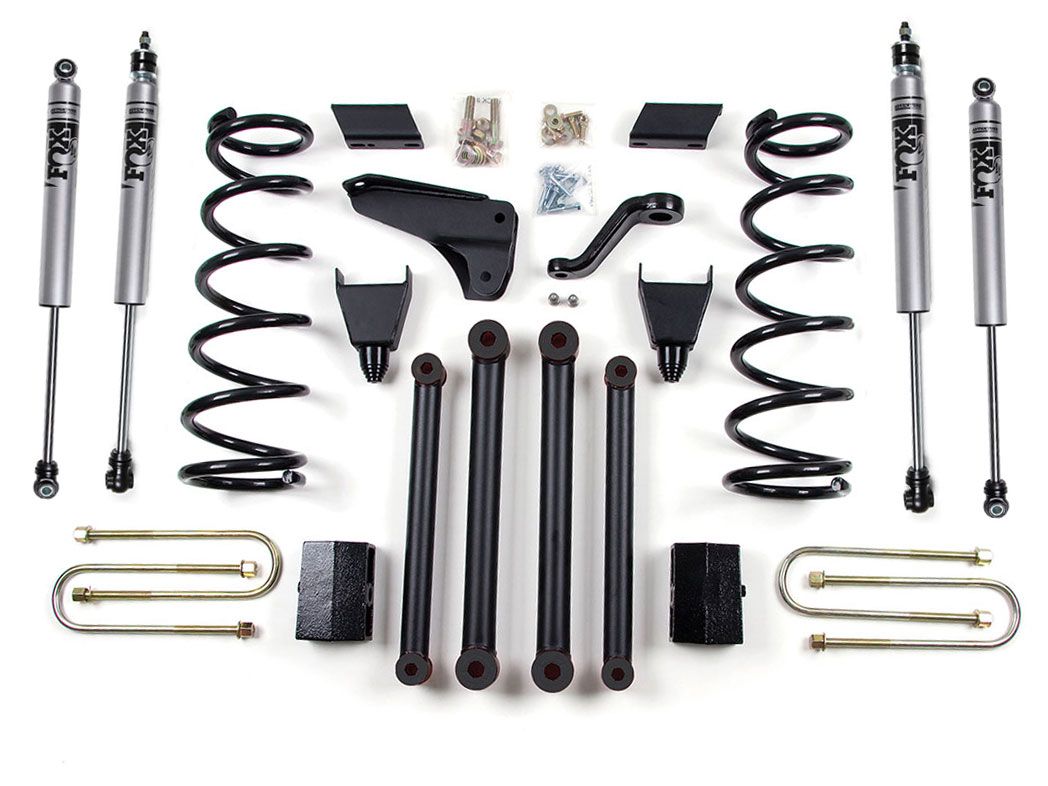

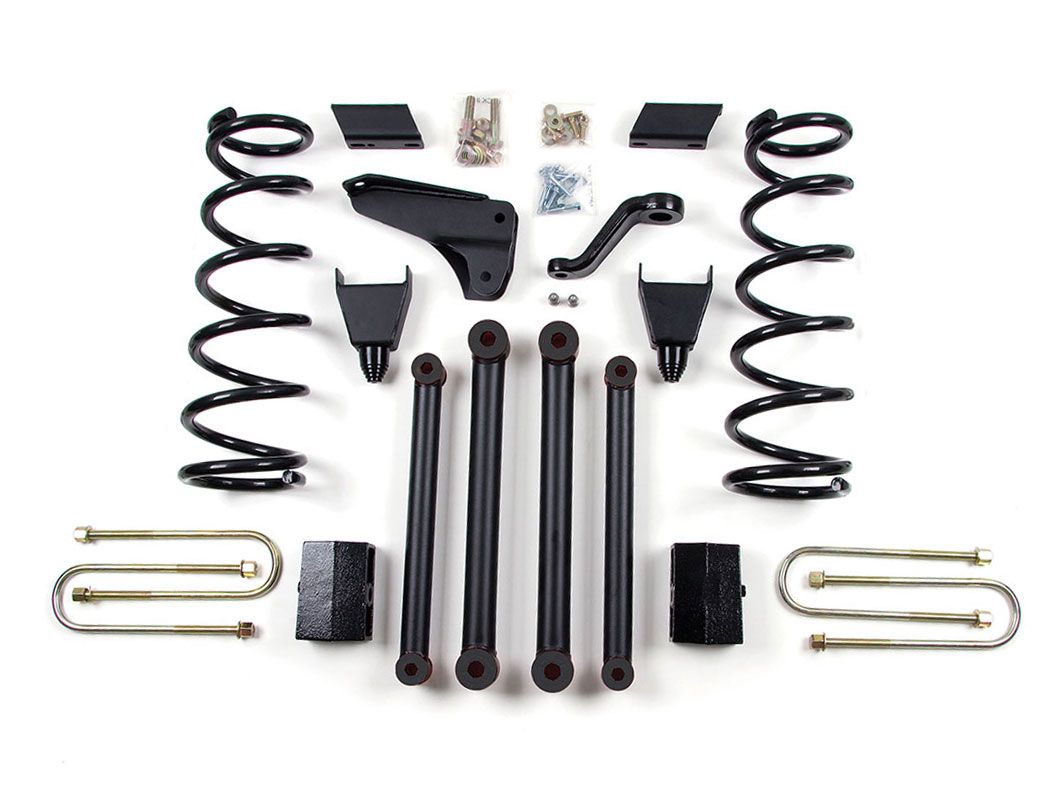

This Zone Off-Road D16 / D18 5 inch lift kit for the 2010 thru 2012 Dodge Ram 3500 trucks is a great suspension upgrade to allow for fitment of up to 35 inch diameter tires.  Giving your truck an amazing new look.  Featuring tubular upper and lower control arms to properly locate and rotate the front axle to ensure proper alignment. These greaseable arms unsure long term performance. The drop pitman arm combined with the heavy duty track bar bracket ensures factory steering geometry. Whether on road or off-road this system is built to perform. The kit also 5 inch coils that ensure not only performance, but great ride quality. 100% Manufactured in the USA!

Top Features and Benefits

  • 5 inch front lift / 3 inch rear lift
  • Allows for use of 35 inch diameter tires
  • Front coil springs maintain a comfortable ride
  • Heavy duty control arms improve strength and articulation while correcting caster
  • Extended Length Urethane Bump Stops
  • Track Bar Relocation to properly center your axle
  • Pitman Arm included to maintain steering geometry
  • Completely Bolt on System
  • Made in the USA
  • Limited Lifetime Warranty
Important Notes- Works on 2013 Ram 3/4 Ton with 4 link front suspension only.
- This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
- This system will not fit dually applications due to the rear u-bolt size.
- 2-piece rear driveshaft requires carrier bearing drop kit D5505.
- Gas models may sit approximately 1/2" higher than the advertised lift height.
- Kit includes a 3" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
- Powerwagon models came factory with a 2" taller ride height so the net lift gain will be 3" over the factory Powerwagon.
- Note: If purchasing this lift kit without shocks please be sure to supply extended shocks which are required to install the kit properly.
Vehicle Fitment
MakeDodge
ModelRam 3500
Year Fitment2012, 2011, 2010
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberD16 / D18
Item Numberzon_d16n/d17n/d18n
Product LineLift Kits
Lift Height5 inch
