Name: 5" 2000-2002 Dodge Ram 2500/3500 4WD Lift Kit by Zone
Brand: Zone
SKU: zon_d47-config
Price: 716.85 USD

5" 2000-2002 Dodge Ram 2500/3500 4WD Lift Kit by Zone Brand: Zone | SKU: D47 / D47N / D47F

$716.85

- +

716.85

Brand: Zone | SKU: D47 / D47N / D47F

From $716.85

Brand: Zone | SKU: D47 / D47N / D47F

From $716.85

FREE SHIPPING !!
on orders +$149, exclusions apply

Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548

Product Description

More Information

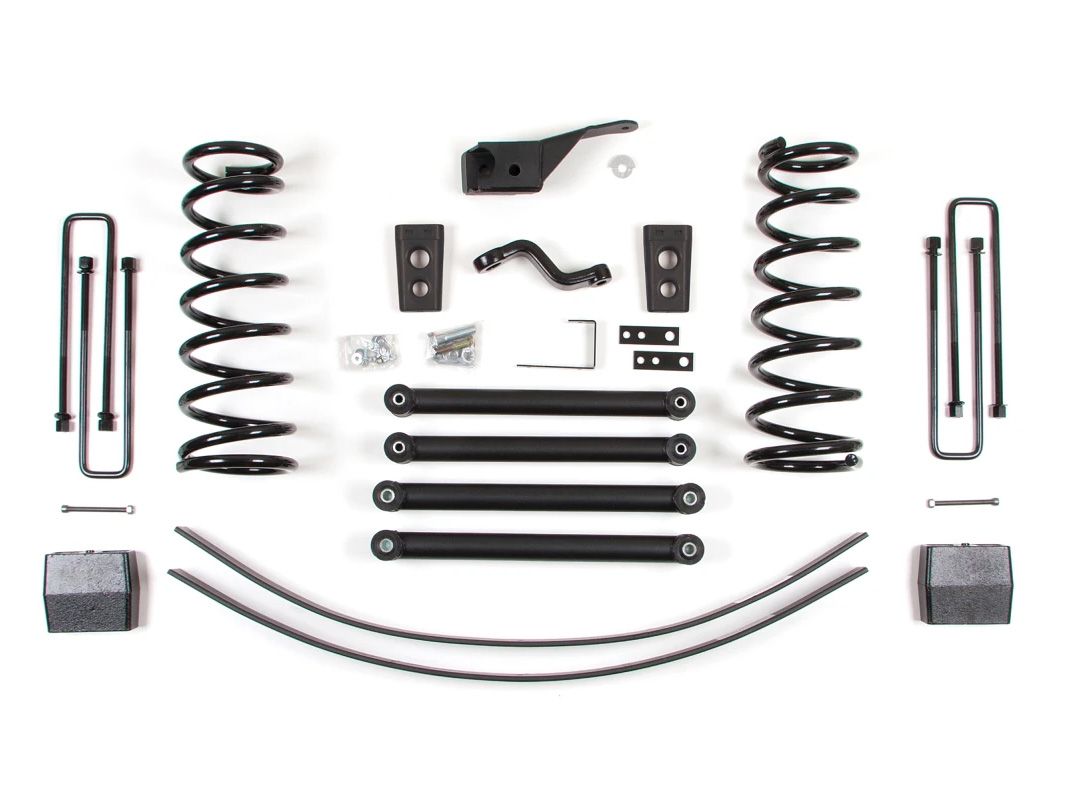

This Zone Off-Road D47 5 inch lift kit for the Dodge Ram 2500 / 3500 4wd truck is a great way to fit larger diameter tires (35 inch diameter) and transform your truck into an off-road machine. This 5 inch system features upper and lower extended heavy-duty control arms with greaseable polyurethane bushings to properly center the axle and correct caster. The dropped pitman arm combined with the HD track bar bracket corrects the steering geometry and centers the axle. In the rear, a 5 inch rear block and add-a-leaf is used to replace the factory block, no stacking in this system. Top Features and Benefits 5 inch front lift / 5 inch rear lift Allows use of up to 35 x 12.5 tires Extended height coil springs lift the front end Heavy Duty greaseable control arms included Extended length urethane bump stops Track bar relocation to properly center your axle Pitman arm included to maintain steering geometry Made in the USA Limited Lifetime Warranty Tire and Wheels 35 x 12.5 tires, 16 x 8 Wheels, 4 inch backspacing 35 x 12.5 tires, 17 x 9 Wheels, 4 inch backspacing 35 x 12.5 tires, 18 x 9 Wheels, 4 inch backspacing View Zone D47 / D47N / D47F Instruction Manual
Important Notes- Brakes: If the truck is equipped with a proportioning valve, a relocation bracket kit is required. - Check Factory Sway Bar Setup: Dodge Rams were manufactured with two different front sway bar link setups. Some were mounted ABOVE the axle bracket and some BELOW. If your model’s sway bar links are above the axle bracket, a sway bar link kit is required. (Zone D5501) - Check Your Rear Springs: If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required. - The factory block is replaced with a 5" block, and an add-a-leaf combo is added to obtain a level stance. - Fitment: Will NOT fit models built before February 9, 1994 due to track bar stud size. - If equipped with rear top mounted overload springs 4 of U-bolt part # Zone U4050 may be required. - If the truck is equipped with rear brake proportioning valve, a proportioning valve relocation bracket kit (Zone D5509) is required. - Steering Stabilizer Required: Due to the factory drag link flip when installing this kit the factory steering stabilizer cannot be reinstalled. - Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. (Zone D5505) - Note: If purchasing this lift kit without shocks, please be sure to supply extended shocks, which are required to install the kit properly.
