4" 2014-2018 Dodge Ram 2500 4wd (w/Gas Engine) Radius Arm Lift Kit by Zone
FREE SHIPPING !!
on orders +$149, exclusions apply

Got Questions? We can help!
888-452-2548

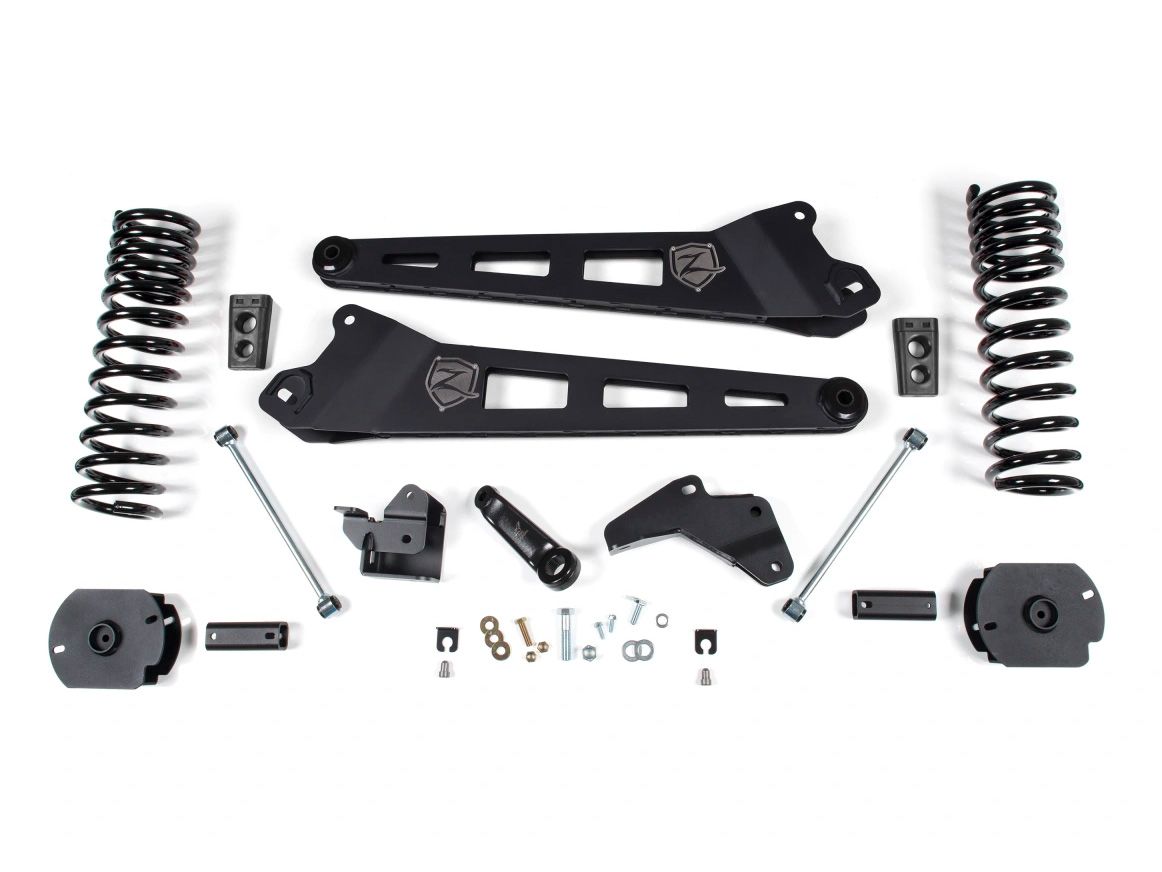

This Zone Offroad D63 4.5 inch lift kit for the Dodge Ram 2500 4wd is an awesome way to to fit up to 37 inch diameter tires while giving your truck a great new look. Featured in this kit are heavy duty radius arms designed to bolt in the factory location while adjusting the suspension geometry for 4 inches of lift. The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Progressive rate front coil springs lift the front end while a forged drop pitman arm and track bar relocation bracket keep proper front end and steering angles. In the rear, the new 4 link suspension designed is modified for 2.5 inch of lift via a new heavy duty coil spring spacer setup. The coil spring spacers located and bolt directly to the factory axle mount. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components. Top Features and Benefits
Recommended Tires and Wheels
 |
Important Notes- Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813. - Fits 6.4L Gas Engine Models. - Fitment: Does NOT work for models with factory rear airbag suspension. - Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. - Will not fit Power Wagon models. - 6.4L Gas models will require exhaust modification to clear the front driveshaft. - 5.7L Gas models may require modification - Note: This lift kit is available to purchase without shocks, however extended shocks are required to install properly. |
Make | Dodge |
---|---|
Model | Ram 2500 |
Year Fitment | 2018, 2017, 2016, 2015, 2014 |
2WD/4WD | 4WD |
Manufacturer | Zone |
---|---|
Manufacturer Part Number | D63 / D63N / D63F |
Item Number | zon_d63 |
Product Line | Lift Kits |
Lift Height | 4 inch |
