5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine) Radius Arm Lift Kit by Zone Brand: Zone | SKU: D69 / D69N / D69F
$1208.6
- +
1208.6

5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine) Radius Arm Lift Kit by Zone

Brand: Zone | SKU: D69 / D69N / D69F
From $1,208.60

5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine) Radius Arm Lift Kit by Zone

Brand: Zone | SKU: D69 / D69N / D69F
From $1,208.60


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

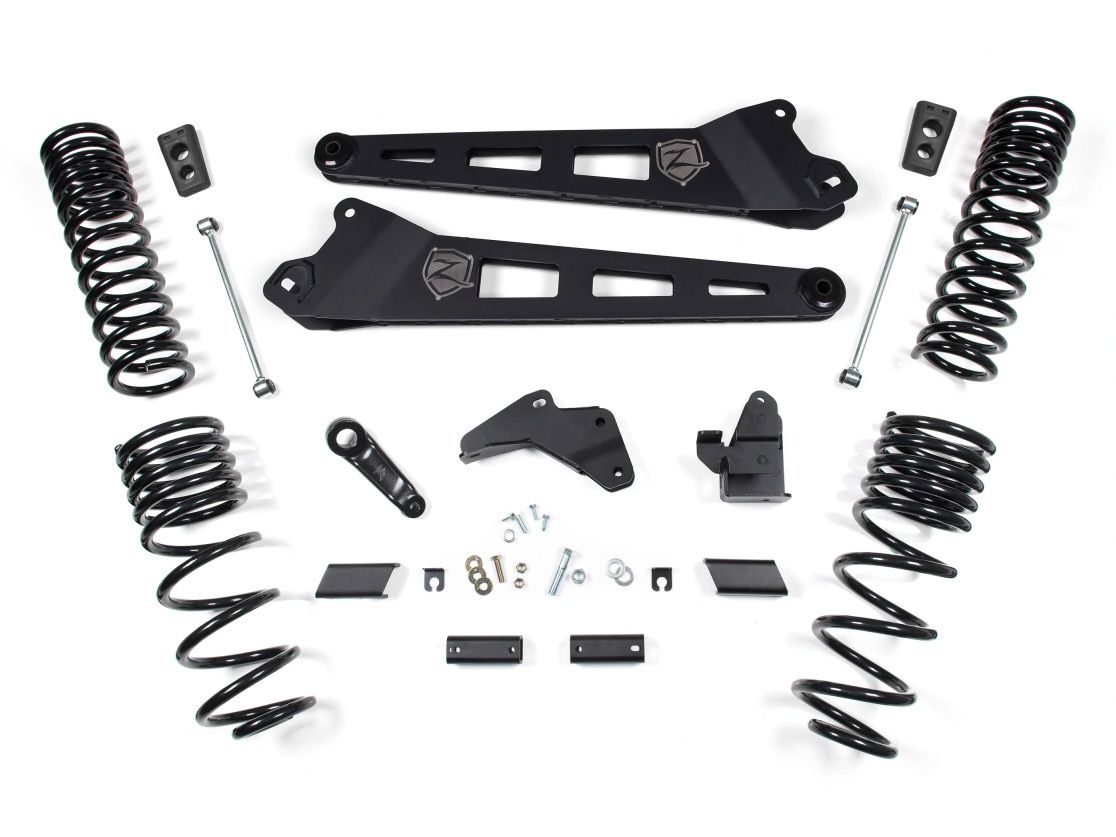

This Zone Offroad D58 6.5 inch lift kit for the Dodge Ram 2500 4wd is an awesome way to to fit up to 37 inch diameter tires while giving your truck a great new look. Featured in this kit are heavy duty radius arms designed to bolt in the factory location while adjusting the suspension geometry for 6.5 inches of lift. The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Progressive rate front coil springs lift the front end while a forged drop pitman arm and track bar relocation bracket keep proper front end and steering angles.

In the rear, the new 4 link suspension designed is modified for 4.5 inch of lift via a progressive rate coil springs. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Features and Benefits:

  • 5.5 inch front lift / 4.5 inch rear lift
  • Heavy duty radius arm correct caster while mounting into stock location
  • Progressive rate front and rear coil springs
  • Track bar relocation bracket keep front axle centered
  • Forged drop pitman keeps proper steering angles
  • Extended bump stops to keep suspension from over extending
  • Extended sway bar end links keep sway bar from binding
  • Made in the USA
  • Limited Lifetime Warranty

Recommended Tires and Wheels

  • 35 x 12.5 Tires, 17 x 9 Wheels, 4.5 inch back spacing
  • 37 x 12.5 Tires, 17 x 9 Wheels, 5.75 inch back spacing
  • 37 x 12.5 Tires, 20 x 9 Wheels, 5.75 inch back spacing
Important Notes- Fits trucks equipped with the 6.4L gas engines.
- Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
- Fitment: Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Will not fit Power Wagon models.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification
- Note: This lift kit is available to purchase without shocks, however extended shocks are required to install properly.
Vehicle Fitment
MakeDodge
ModelRam 2500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberD69 / D69N / D69F
Item Numberzon_d69n
Product LineLift Kits
Lift Height5 inch
