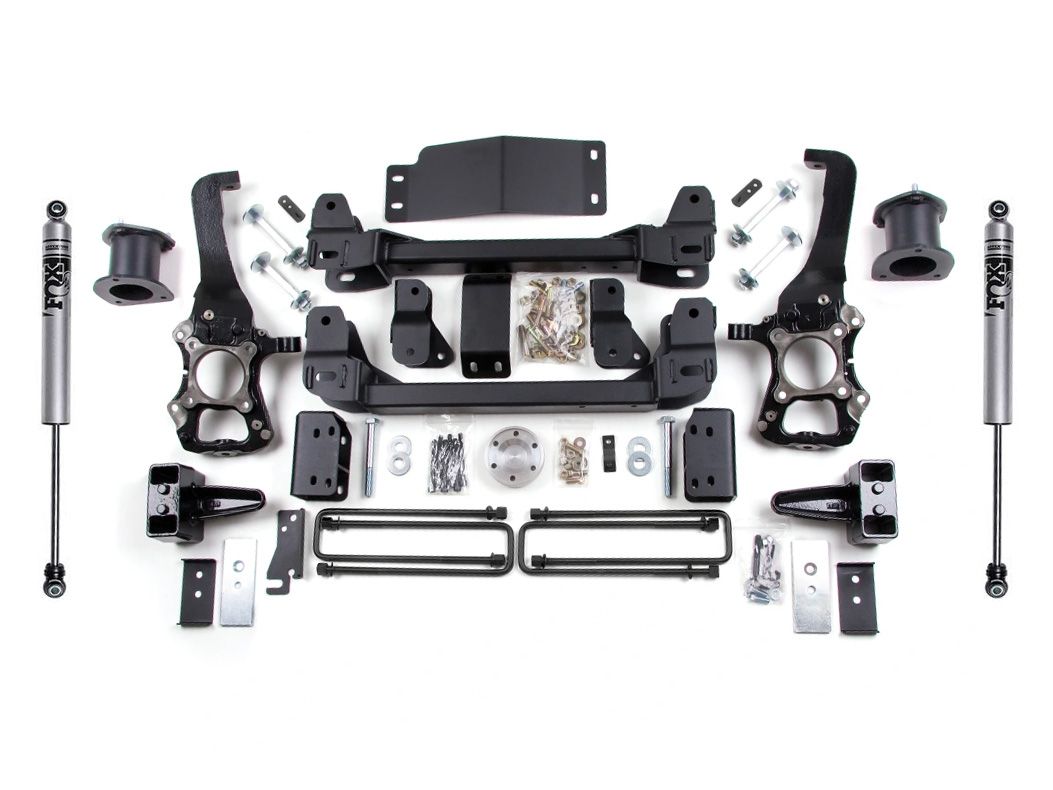

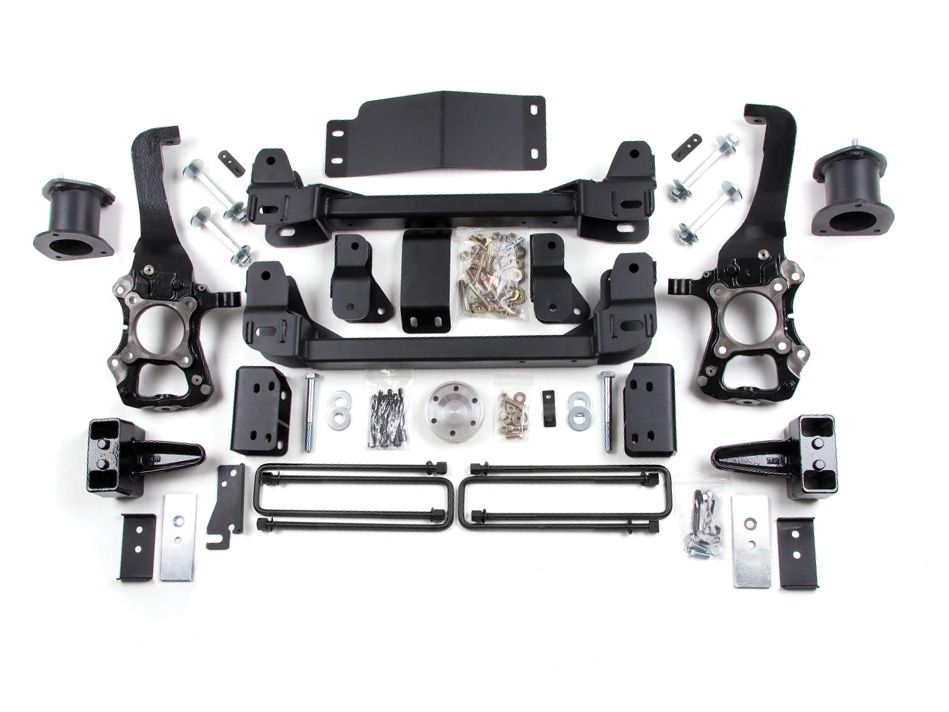

6" 2014 Ford F150 4WD Lift Kit by Zone

This Zone Offroad F40 6 inch Suspension System to lift the 2014 Ford F150 and clear up to a 37 inch tire. A 3-point differential mounting system drops and rotates the front differential to bring the CV shafts and driveshaft back to factory operating angles. CNC machined, and resonant frequency tested knuckles that correct the tie rod and ball joint geometry with no track width change. Heavy main crossmembers are included with your meal and are locked solid with a differential skid plate. Choose your side of rear shock, and we'll fill in the rest with a 5 inch dual pin block kit that offsets the axle closer to the center of the wheel well compared to a standard setup.

Top Features and Benefits

• 6 inch front lift / 4 or 5 inch rear lift
• Front strut spacers maintains factory ride quality and characteristics
• Ductile iron steering knuckes correct steering geometry and maintain ESC system compatibility
• Heavy 1/4 inch thick crossmembers
• Allows for clearance for larger tires, Max tire size: 37" tires
• Differential skid plate provides added protection
• Includes factory protection plus program
• Limited Lifetime Warranty
• 5 year / 100,000 Mile Drivetrain Warranty
• Install Time: 8-10 Hours
• Tires Size: 35 x 12.5, Wheel Size: 18 x 9, Back Spacing 5 inches
• Tires Size: 37 x 12.5, Wheel Size: 20 x 9, Back Spacing 5.5 inches
