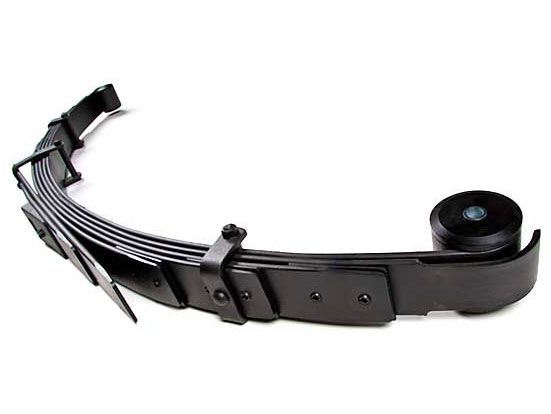

Blazer 1977-1990 Chevy/GMC 4wd - Rear 4" Lift Leaf Spring by BDS Suspension

Brand: BDS Suspension | SKU: 001409


free shipping truck PREMIUM FREIGHT ITEM
A $99.95 freight and processing fee applies, why we ship this via truck


Single Leaf Spring (Sold INDIVIDUALLY. Order two for complete set.)

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 001409 Leaf Spring for the Chevy Blazer is shot-peened, increasing tensile strength and reducing fatigue while lessening the material thickness required. The thinner material provided in this kit allows for increased wheel travel and provides a softer ride. Anti friction pads are placed between the leaves, reducing friction within the spring and noise from the metal to metal contact, improving the longevity of the springs. Tapered and roll pointed leaves add flexibility and provide an even deflection rate. Tapering also allows for a smoother transition between leaves as compression takes place, resulting in a softer ride with increased wheel travel. Bolt style leaf alignment clamps prevent leaves from fanning out and allow the leaves to twist and flex, yielding higher articulation. Each spring uses hydraulic stress to reduce fatigue in the steel, preventing sagging.

Features and Benefits

  • Eye to Eye Dimension: 48.875
  • Free Height Dimension: 10
  • Eye to Center Pin Front: 26.625
  • Eye to Center Pin Rear: 27.625
  • Eye (F/R) diameters: 1.5/1.15
  • 6leafs per leaf pack
  • Width 2.5"
  • Center Pin Size 3/8"
Important NotesRequired bushings for installation are NOT included. Sold individually, quantity (2) required.
Vehicle Fitment
MakeChevy, GMC
ModelBlazer, Jimmy
Year Fitment1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number001409
Item Numberbds_001409
Product LineLeaf Spring
Lift Height4 inch
Spring Height4"
Number Of Leaves6
Eye to Center Pin (Front x Rear)26.625 x 27.625
