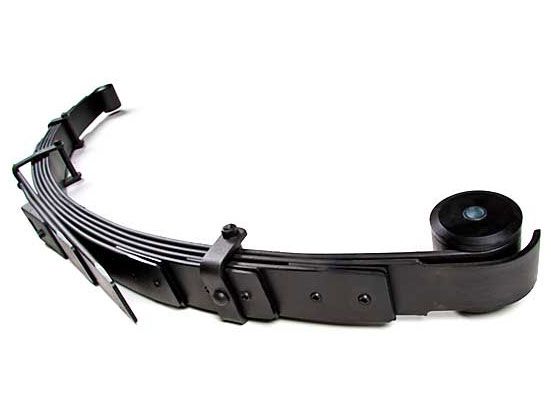

This BDS Suspension BDS001409 Leaf Spring for the GMC Pickup 1/2 ton and 3/4 ton is shot-peened, increasing tensile strength and reducing fatigue while lessening the material thickness required. The thinner material provided in this kit allows for increased wheel travel and provides a softer ride. Anti friction pads are placed between the leaves, reducing friction within the spring and noise from the metal to metal contact, improving the longevity of the springs. Tapered and roll pointed leaves add flexibility and provide an even deflection rate. Tapering also allows for a smoother transition between leaves as compression takes place, resulting in a softer ride with increased wheel travel. Bolt style leaf alignment clamps prevent leaves from fanning out and allow the leaves to twist and flex, yielding higher articulation. Each spring uses hydraulic stress to reduce fatigue in the steel, preventing sagging.

Top Features and Benefits

• Leaf springs feature tapered and roll-pointed ends for enhanced flexibility and uniform deflection
• Tapering increases wheel travel and a softer ride, facilitating seamless leaf transition during compression
• Bolt-style leaf alignment clamps promote higher articulation, preventing leafs from spreading apart and enabling better twisting and flexing
• Incorporates a multi-leaf progressive design to ensure a smooth riding experience
• Anti-friction pads are integrated to deliver a quiet and smooth ride
• Provides 4 inches of rear lift
• Made in the USA

Specifications

• Eye to Eye Dimension: 48.875
• Free Height Dimension: 10
• Eye to Center Pin Front: 26.625
• Eye to Center Pin Rear: 27.625
• Eye (F/R) diameters: 1.5/1.15
• 6leafs per leaf pack
• Width 2.5"
• Center Pin Size 3/8"
