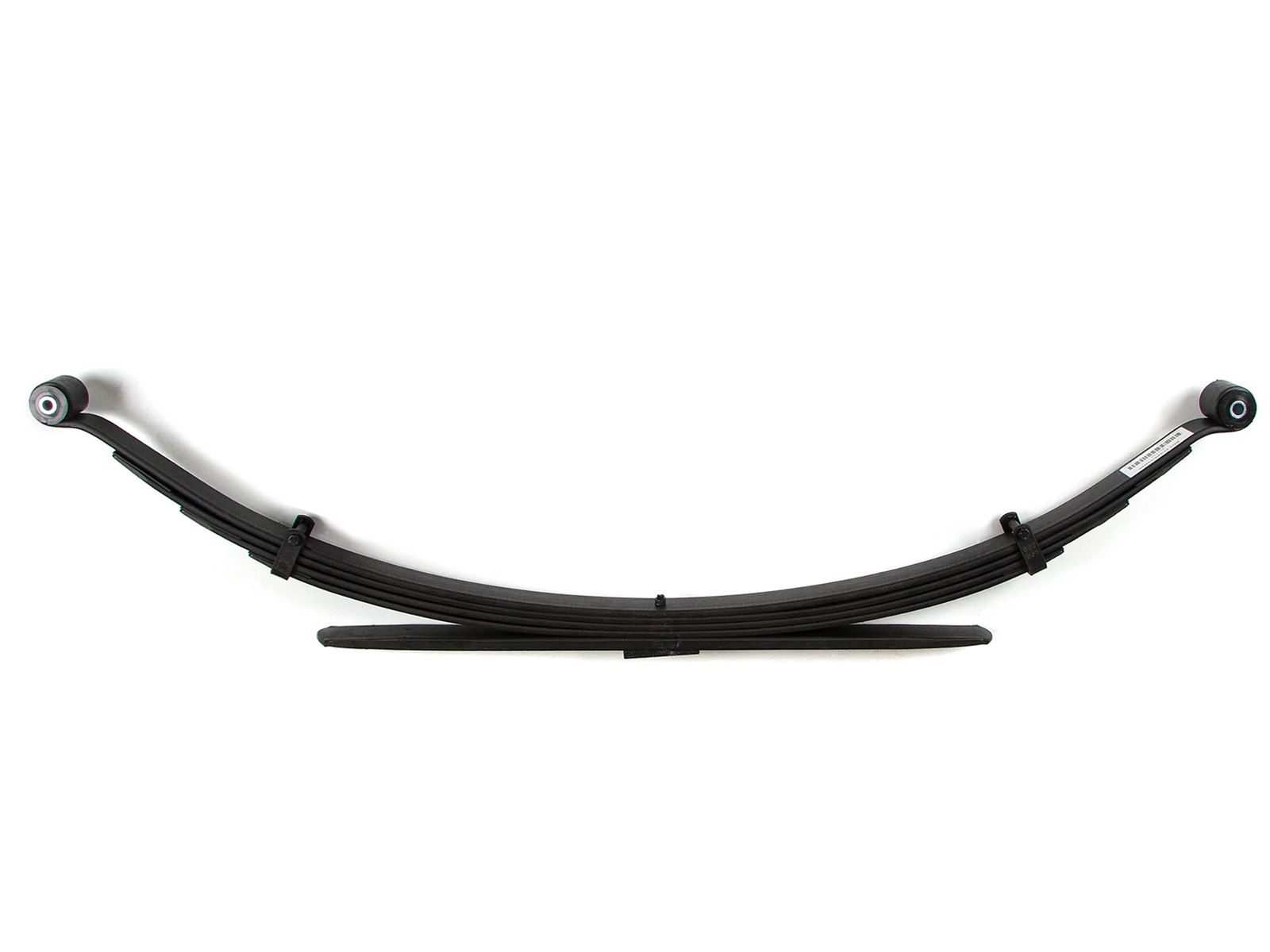

Pickup 1500/2500 1988-1998 Chevy 4wd (6 lug only) - Rear 5" Lift Leaf Spring by BDS Suspension

These BDS Suspension BDS001559 BDS Glide-Ride leaf springs for the Chevy Pickup 1500 / 2500 is designed to reduce axle wrap and create a more controlled and stable feel when towing while adding 5 inches of lift height to the rear. These springs are covered by the BDS No Fine Print Warranty.

Bushings are not included when ordering these leaf springs separately. Order one bushing kit per spring.

Features and Benefits:

• 5 inch rear lift height
• Reduces axle wrap when used instead of rear lift blocks
• Maintains factory payload ratings
• Progressive leaf design designed for comfortable ride
• Eye to Eye Dimension: 61
• Free height Dimension: 10.75
• Eye to Center Pin Front: 32.5
• Eye to Center Pin Rear: 33.5
• Eye (F/R) Diameters: 1.5/1.5
• 5 Leafs Per Leaf Pack
• Width: 2.5"
• Center Pin Size: 7/16"
