4" 1977-1987 Chevy 3/4 Ton Pickup 4WD Lift Kit by BDS Suspension
From $784.27 Regular Price $825.55
FREE SHIPPING !!
on orders +$149, exclusions apply
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Got Questions? We can help!
888-452-2548
Product Description

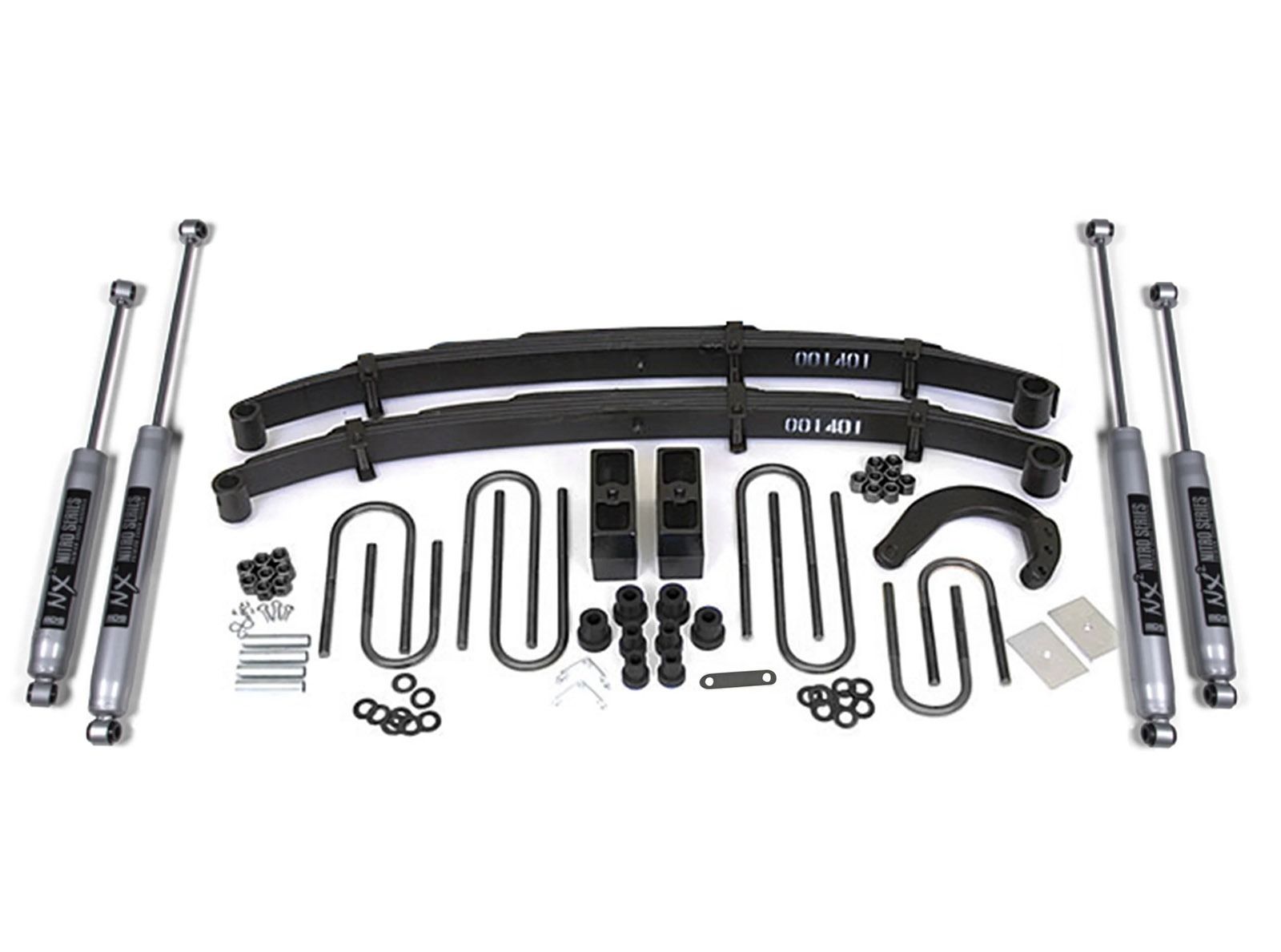

This premium BDS Suspension BDS124H Suspension 4 inch Lift Kit for 1977 thru 1987 Chevy 4WD 3/4 ton pickup trucks is designed around BDS' acclaimed Glide Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti friction pads, and tapered leafs. This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets, sway bar drop brackets, 4 inch steering arm, and transfer case drop as well as many other options. Top Features
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
| Important Notes1. The 3/4 ton commonly came with a factory 56" eye-to-eye rear leaf spring. However, some were produced with a 52" rear spring. If ordering rear leaf springs, be sure to measure your factory rear springs before ordering. 2. If equipped with a factory front sway bar, a sway bar drop kit is available in the sway bar drop section. Some vehicles came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options. 3. Rear springs come with OE-style rubber bushings installed. 4. Exhaust modification may be required to clear the front driveshaft. |
Vehicle Fitment
| Make | Chevy |
|---|---|
| Model | Pickup 3/4 ton |
| Year Fitment | 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | BDS Suspension |
|---|---|
| Manufacturer Part Number | BDS124H |
| Item Number | bds_bds124h |
| MPN(UPC) | 840416400557 |
| Product Line | Lift Kits |
| Lift Height | 4 inch |
WARNING : Cancer and Reproductive Harm. www.p65warnings.ca.gov/
4" 1977-1987 Chevy 3/4 Ton Pickup 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS124H
- +
