8" 1973-1987 Chevy 3/4 ton Pickup 4WD Premium Lift Kit by Jack-It

Brand: Jack-It | SKU: GM543PR/551/643/651
$1,781.52

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

-- Please Select --
  • -- Please Select --
  • 1973-1980 w/ 52 inch Rear Leaf Springs +$59.99
  • 1981-1987 w/ 52 inch Rear Leaf Springs
  • 1973-1980 w/ 56 inch Rear Leaf Springs +$379.99
  • 1981-1987 w/ 56 inch Rear Leaf Springs +$314.99
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

At Jack-It we have put together complete Budget, Deluxe and Premium packages. They are available in 2.5-8 inch heights. These are the most complete packages that you can find anywhere for these older Chevys.

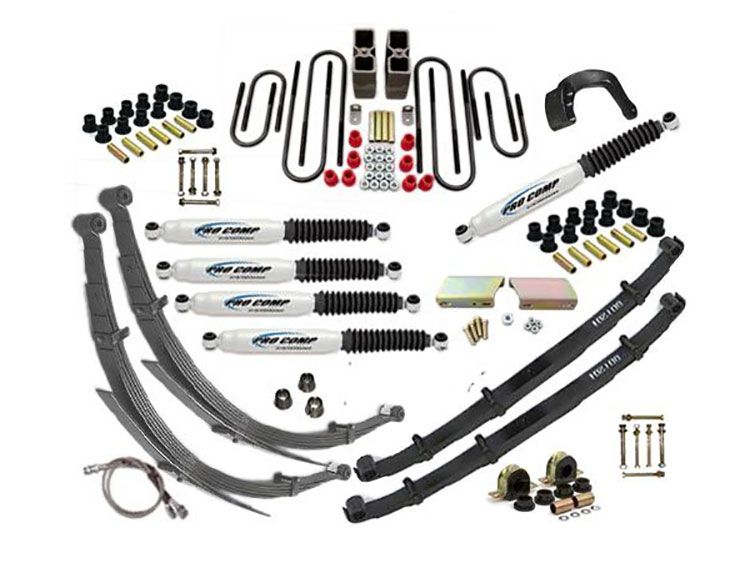

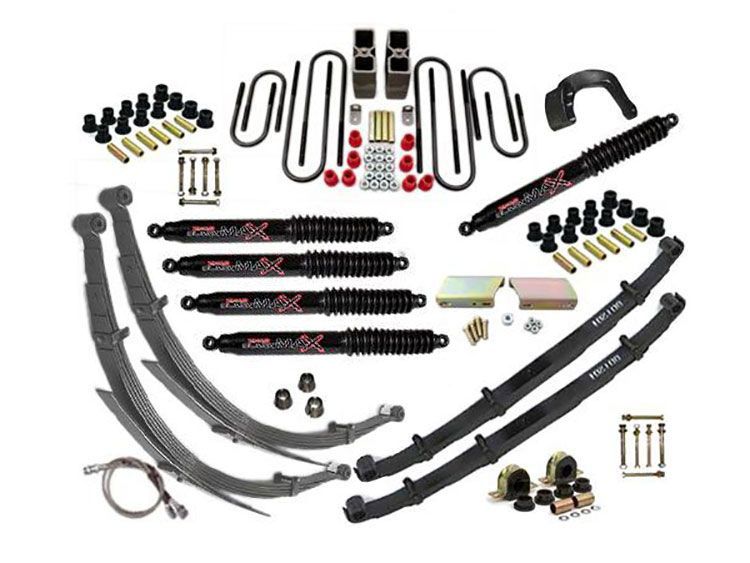

Premium Package Includes:
- Spring and Shackle Bushings
- Sway Bar Bushings
- Front and Rear Spring Eye Bolt Kits
- Steering Sleeves
- Pro Comp Steering Stabilizer w/ Boot
- (4) Pro Comp Shocks w/ Boots
- Brake Lines
- Front and Rear BDS Suspension Leaf Springs
- Steering Arm
- Sway Bar Brackets
- U-Bolts
- Rear Blocks
- Brake Line Extensions

Important NotesIf truck has factory quad shock option on front you will need to order extra shocks. If equipped with a height sensing vavle on rear differential, you will need to order bracket tuf_10725. Rear Shackle Bushings not included, 3 sizes available 1-3/8 inch (daykg02022), 1.5 inch (daykg02020) and 1.75 inch (daykg02021). Need to measure rear spring from eyelet to eyelet to see if you need 52 inch rear springs or 56 inch. Exhaust modifications may be necessary for front drive line to clear exhaust cross over. Drive shaft will need to be lengthened. Possible front CV will bind on 77 and newer trucks, may need to grind for clearance
Vehicle Fitment
MakeChevy
Model3/4 Ton Pickup
Year Fitment1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberGM543PR/551/643/651
Item NumberGM543PR/GM551PR/GM643PR/GM651PR
Product LineSuspension Lift Kit
Lift Height8 inch
