3" 2012-2018 Jeep Wrangler JK (2 door) 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1415H
- +

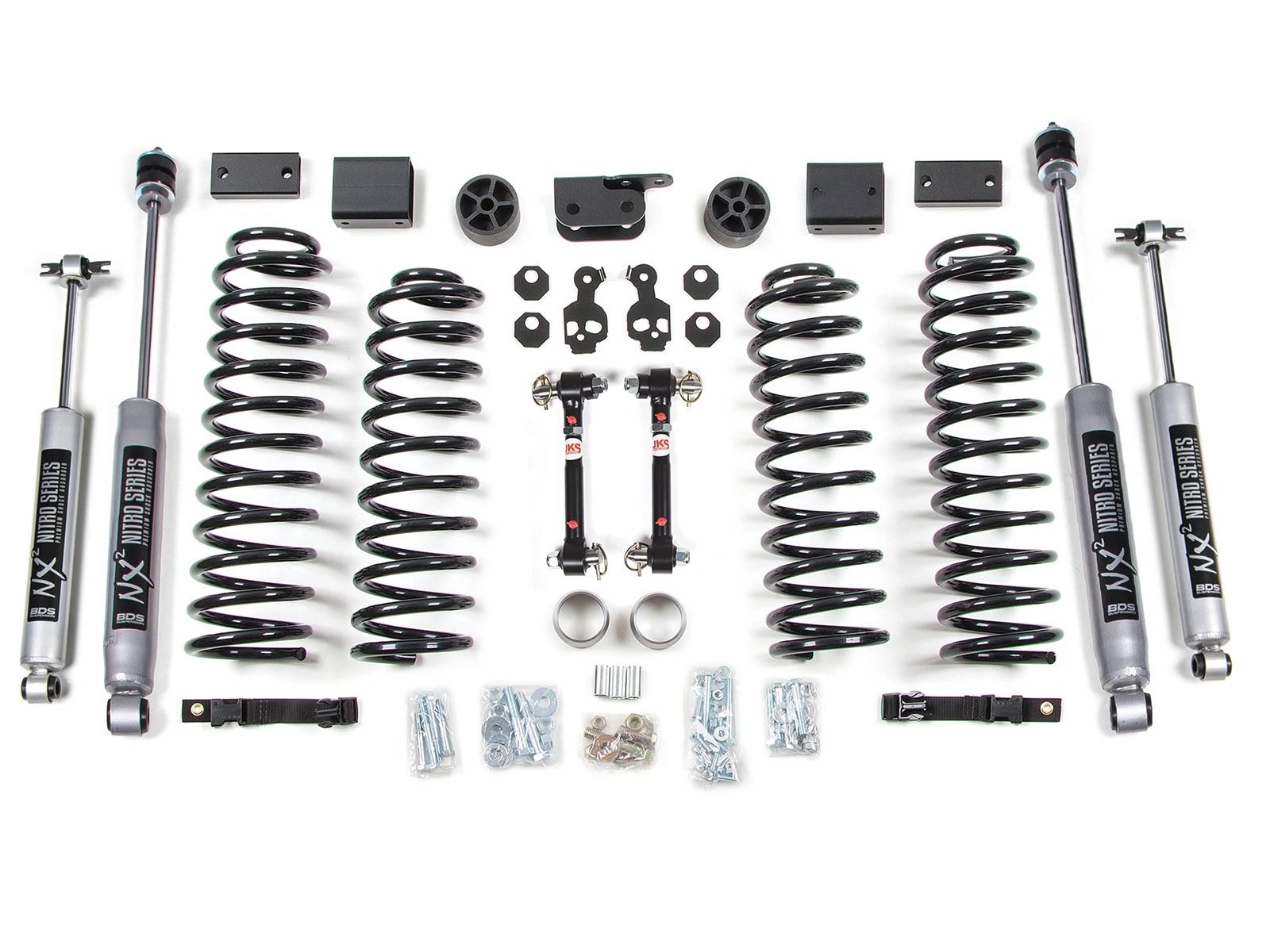

3" 2012-2018 Jeep Wrangler JK (2 door) 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1415H
From $718.93 Regular Price $733.60

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS1415H Jeep Wrangler JK is a great method to improve off-road performance and 35 inch diameter tires. This system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft. This kit comes with 3" Pro-Ride Coil Springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Brake line relocation brackets are supplied to handle the added wheel travel. Many companies don't include anything to correct your alignment, but BDS includes octo-cam washers for the front lower control arms to fine tune the caster angle.

Features and Benefits:

  • Lifts vehicle 3 inch front / 3 inch rear
  • ProRide front and rear coil springs
  • Bump stop extensions
  • Front sway bar disconnects (non-Rubicon models)
  • Allows use of up 35 inch tires
  • Average Install Time: 6 hours
  • Proudly made in the USA, using only premium quality components
  • Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • 35 inch x 12.5 inch w/ 16 x 8 and 4.5 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

FMVSS No. 126 Compliant - This lift kit is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the vehicle. Click here for more information.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

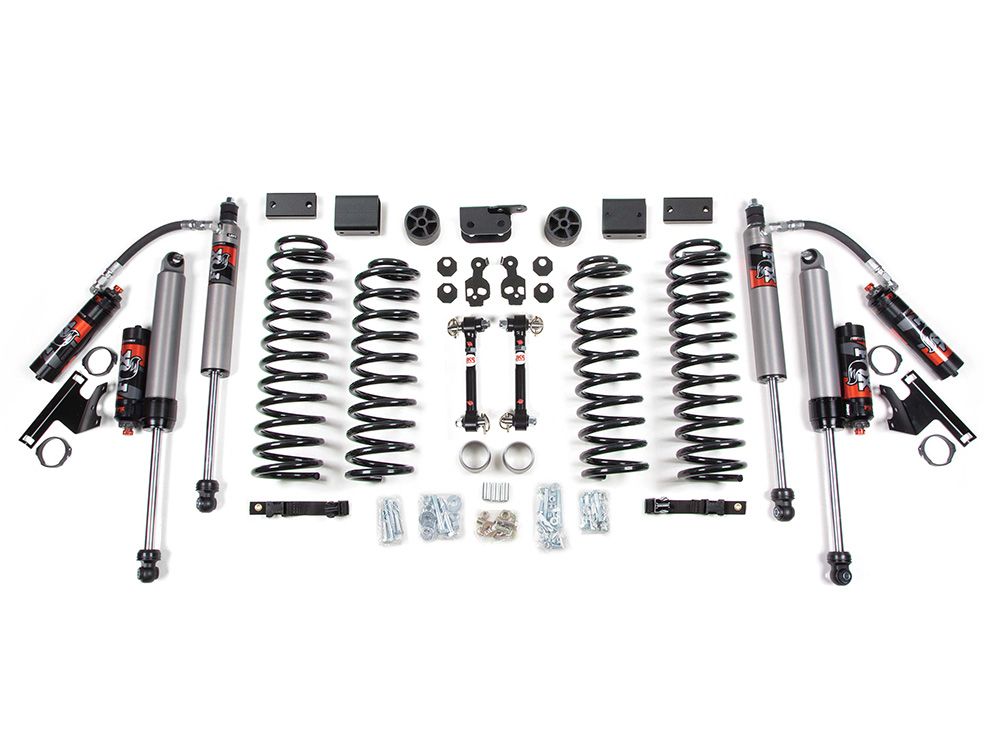

Fox 2.5 Performance Elite Adjustable Shocks
The Fox 2.5 Performance Elite shocks provide a serious suspension upgrade. The 2.5 inch diameter aluminum body and external reservoir dramatically increase oil volume to fight heat building in extreme conditions. With the turn of a knob you can adjust compression settings for various types of terrain, load and speed conditions.
BDS NX2 Nitro Gas Shocks
The BDS NX2 Nitro Gas shcoks are a high-performance shocks at an affordable price. The 2 inch diameter body is powder coated with a durable metalic silver finish. Using a twin-tube design with a pressurized nitrogen charged and 10-stage velocity sensitive valving for great dampening in various types of terrain and conditions.
Important Notes- Removing the OE spring isolators will result in a 1" lift if desired.
- bds_124408 rear track bar or bds_124308 rear track bar relocation is recommended if using factory wheels.
- This kit is right hand drive compatible. Right Hand Drive Compatible Follow right hand drive installation instructions when installing this kit on a right hand drive vehicle.
Vehicle Fitment
ModelWrangler JK
Year Fitment2018, 2017, 2016, 2015, 2014, 2013, 2012
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1415H
Item Numberbds_bds1415h
Product LineLift Kits
Lift Height3 inch
