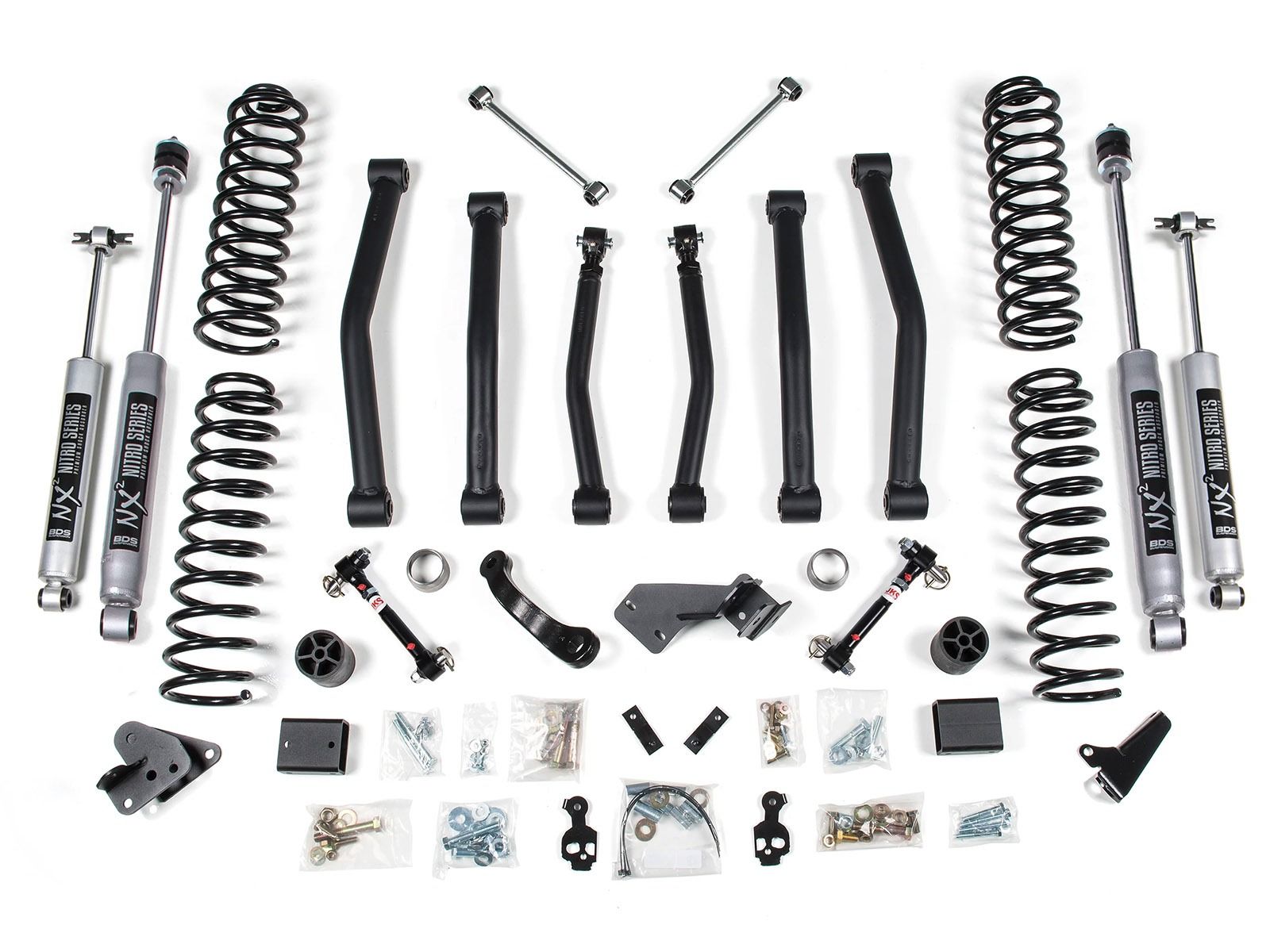

This BDS Suspension BDS1417H / BDS1417FS kit for the 2-door Wrangler JK comes with 4" Pro-Ride Coil Springs capable of full coil bind and 3" bump stop extensions to control the compression travel. To handle the added wheel travel, brake line relocation brackets are included or BDS stainless steel lines are available.

This system has front and rear fixed-length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE-grade rubber bushings. If you want to upgrade, BDS offers adjustable arms with urethane ends or adjustable arms w/ flex joints to fit your needs.

BDS includes a front track bar relocation bracket and a dropped pitman arm to improve the steering and handling geometry. BDS exhaust extensions are included to maintain front driveshaft clearance at full droop.

In the rear, an axle-mounted track bar relocation bracket has a built-in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support.

All possible SKUs depending on options selected: BDS1417H BDS1417FS BDS1417FPE BDS1418H BDS1418FS

Features and Benefits:

• Lifts vehicle 4 inch front / 4 inch rear
• ProRide front and rear coil springs
• Bump stop extensions
• Front sway bar disconnects (non-Rubicon models)
• Allows use of up 37 inch tires
• Average Install Time: 8 hours
• Proudly made in the USA, using only premium quality components
• Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
• No Fine Print Lifetime Warranty
• FMVSS No. 126 (ESC System) Compliant
• Factory Protection Plus
• 37" x 12.5" w/ 16 x 8 and 4.5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

FMVSS No. 126 Compliant - This lift kit is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the vehicle. Click here for more information.
