8.5" 1987-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1434H
- +

8.5" 1987-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1434H
From $2,907.02 Regular Price $2,966.35

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

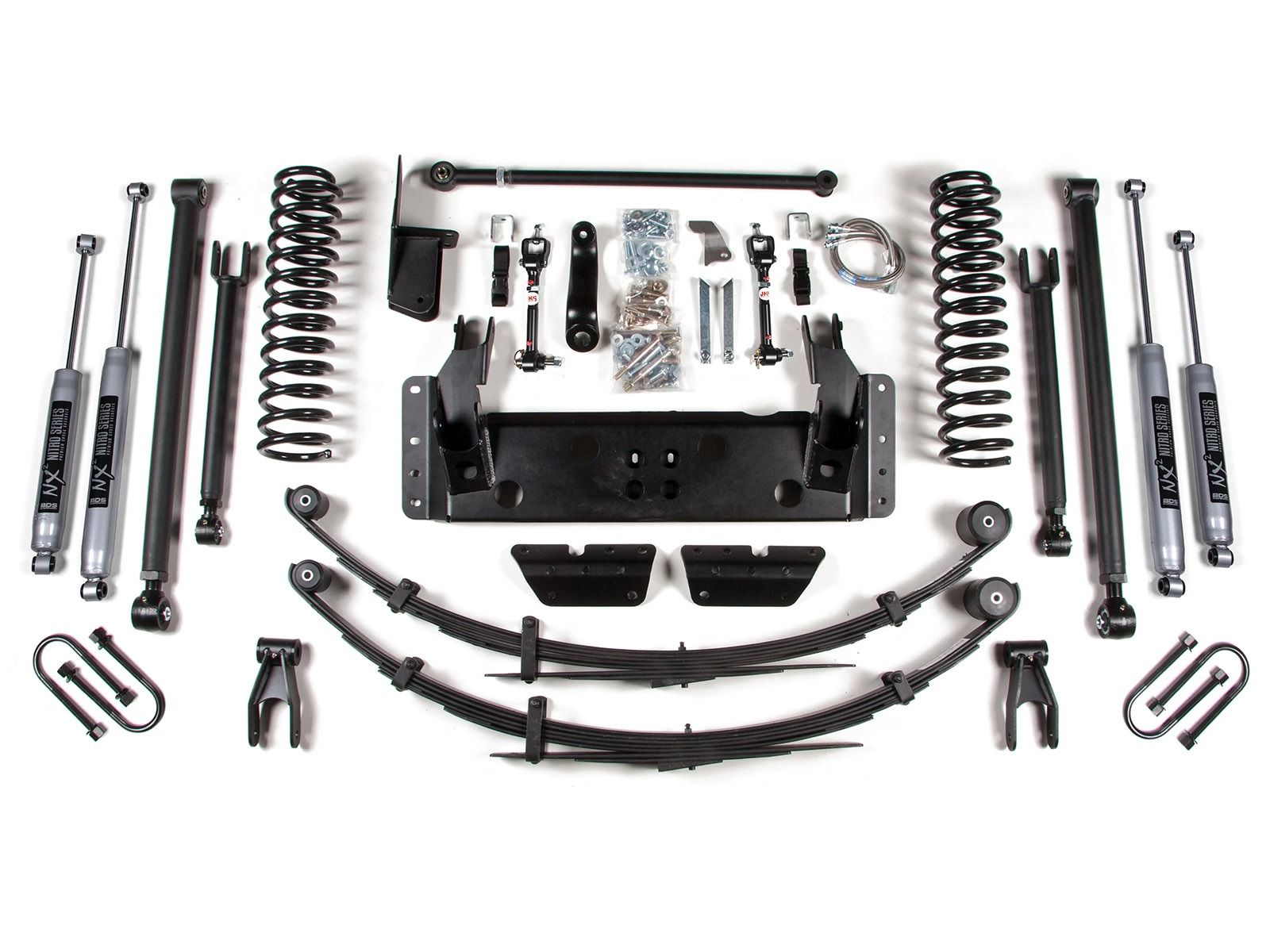

The BDS Suspension BDS1434H 8.5 inch premium long arm suspension lift kit for the Jeep Cherokee XJ will allow for fitment of up to 35 inch diameter tires for a great off-road look. The BDS 8.5" XJ Long Arm system provides the best on and off-road capability you could ask for and is designed to clear 33x12.50's with room to flex. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimum handling and minimized road forces transmitted ultimately to your seat for the best ride. To give you some idea, the lower arms are nearly bottomed out at just over 32" and the uppers at just over 28". This is about double the length of the factory control arms!

Although this XJ long arm system makes for a great daily driver, the true abilities of this system won' t be appreciated until you hit the rocks, dirt and mud. The 4-Link design maintains better axle control through wheel travel than any radius arm system because the upper to lower link relationship is not fixed, yet is tuned for optimum performance based on link length and operating angles. The control arm geometry is setup with the massive belly pan that incorporates the link mounts and is built to smash rocks. No welding to the uni-body is required nor recommended.

BDS Pro-Ride Coil Springs, built from 5160 spring steel & pre-set to withstand full coil bind with a tuned rate to lift the front. The rear is lifted with new Glide-Ride Leaf Springs, 2" lift blocks, and extended greasable shackles that really let the springs flex.

This system also incorporates BDS Ultimate sway bar disconnects for quick easy access to ridiculous wheel travel and stainless steel brake lines to handle it. Bump stop extension are included to limit compression and keep the tires out of the fenders on the trail. A front adjustable track bar fits into the existing frame mount, so drilling of the taper is not required and will allow you to accurately center the front axle. To match the steering w/ the track bar angle, an extreme drop pitman arm is provided.

Features and Benefits:

  • Long Arm Control Arms improve off-road performance
  • Front Adjustable Track Bar keep axle centered
  • Glide-Ride Rear Leaf Springs replace worn factory springs
  • BDS NX2 Shocks or Fox 2.0 Performance Shocks
  • Estimated Install Time: 10 hours
  • Difficulty Level (easy 1-5 complicated): 4
  • No Fine Print Lifetime Warranty
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Up to 35" x 12.50" w/15 x 8 and 4" back spacing
  • Trimming may be required

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. They back their commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with the unique "No Fine Print Lifetime Warranty".
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Vehicle Fitment
Year Fitment2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1434H
Item Numberbds_bds1434h
Product LineLift Kits
Lift Height8 inch
