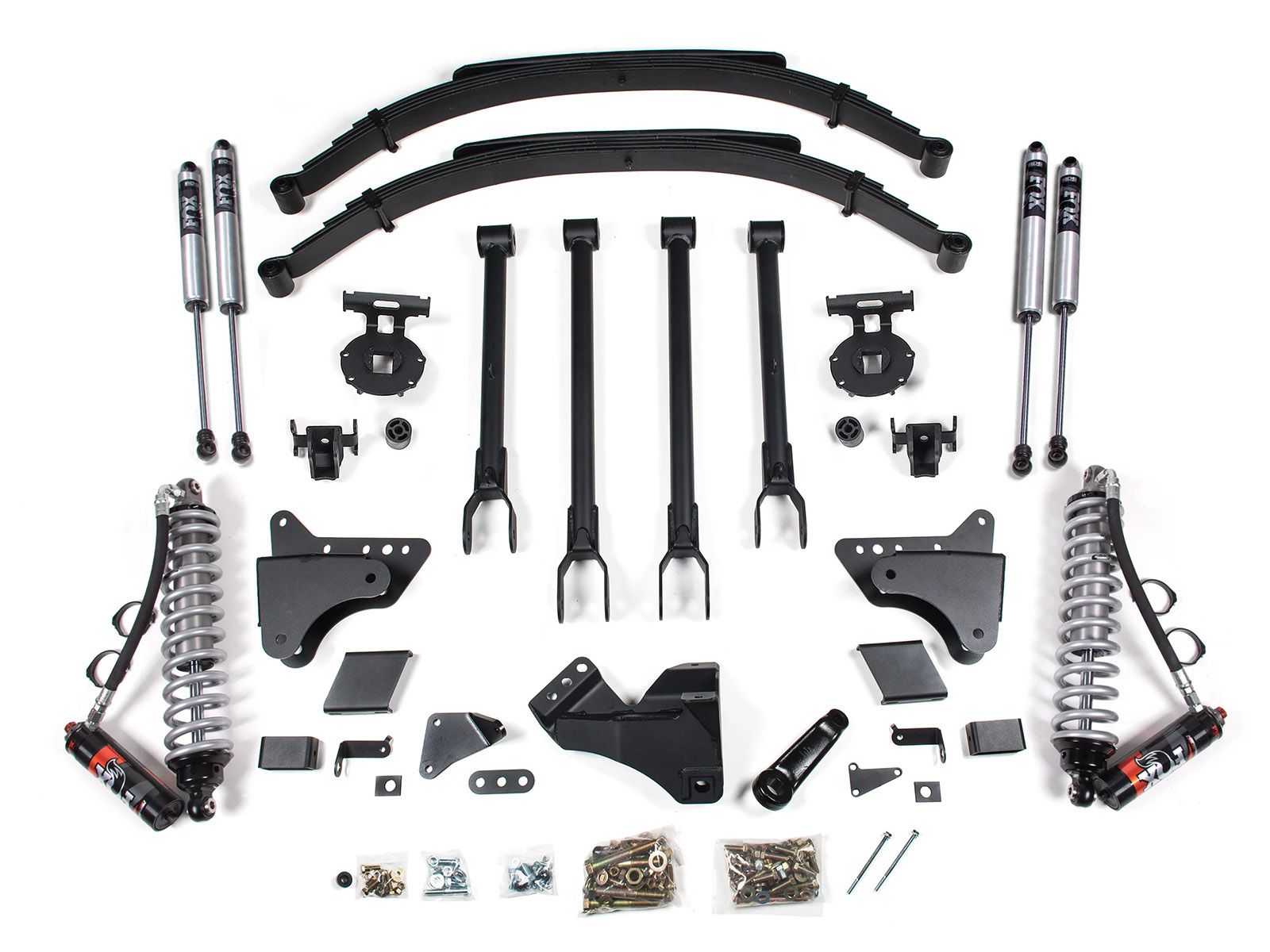

8" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1500FPE
$5859.13
- +
5859.130000

8" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1500FPE
Special Price $5,859.13 Regular Price $6,167.50

8" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1500FPE
Special Price $5,859.13 Regular Price $6,167.50


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS1500FPE 8 inch lift kit for the Ford F250 and F350 in the 2011 to 2016 year range is designed to allow the installation of Fox 2.5 Performance Elite remote reservoir coil-overs to replace the factory coil springs. This system far surpasses the performance and capability of your Super Duty's stock suspension with more stability, improved handling, and better dampening in any terrain.

This kit uses full replacement 4-link frame brackets bolt into factory holes and create a solid mounting location for the massive tubular 4-link arms. These arms allow the front suspension geometry to be optimized for control and handling through all types of terrain. The front portion of the lift system also includes a forged drop pitman arm and front track bar relocation bracket to correct steering and track bar angles as well as to center the axle under the vehicle. Front bump stop extensions, sway bar drops, and brake line relocation brackets round out the front of this system. In the rear, full replacement BDS Glide ride leaf springs provide the lift needed to level and level the stance. The springs are a 5-leaf design with built in overload leaf to assist when carrying heavy loads. New black e-coated u-bolts, brake line brackets and Fox 2.0 performance gas shocks are supplied to round out the 8" coil-over conversion 4-link system.

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Fox 2.5 Performance Elite Coil-overs replace factory coil spring for improved suspension performance
  • 4 Link Control Arm replace factory radius arms
  • 8 inch front lift / 6 inch rear lift, for level stance
  • Allows for use of 38 inch tires
  • Fox 2.0 Performance Rear Shocks
  • Made in the USA
  • Glide Ride rear leaf springs
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8 to 10Hours
  • 38 inch x 15.5 inch w/ 17 x 9 and 4.5 inch back spacing
  • 38 inch x 15.5 inch w/ 18 x 9 and 4.5 inch back spacing
  • 38 inch x 15.5 inch w/ 20 x 9 and 4.5 inch back spacing
  • 38 inch x 15.5 inch w/ 20 x 10 and 4.5 inch back spacing

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Exhaust modification may be required to clear front driveshaft (gas only)
2. Front bumper spacer kit may be required to run 38"x15.50" tires
3. Although extremely rare, front driveline vibration may occur
4. If equipped with 2-piece rear driveshaft, driveshaft alignment kit (#123406) will be required
5. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
6. If equipped with rear sway bar, #123009 is required.
7. U-bolts will not work on dually.
8. Front auxiliary shocks can be omitted from kit - system can be used with C/O installed alone
9. If your truck is equipped with a 3-1/2" rear block from the factory, (x4) UBT4234 are required.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1500FPE
Item Numberbds_bds1500fpe
Product LineLift Kits
Lift Height8 inch
EngineDiesel
