4" 2011-2016 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1596FS / BDS1596H / BDS1597FS / BDS1597H
$1521.79
- +
1521.79

4" 2011-2016 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1596FS / BDS1596H / BDS1597FS / BDS1597H
From $1,521.79 Regular Price $1,552.85

4" 2011-2016 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1596FS / BDS1596H / BDS1597FS / BDS1597H
From $1,521.79 Regular Price $1,552.85


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

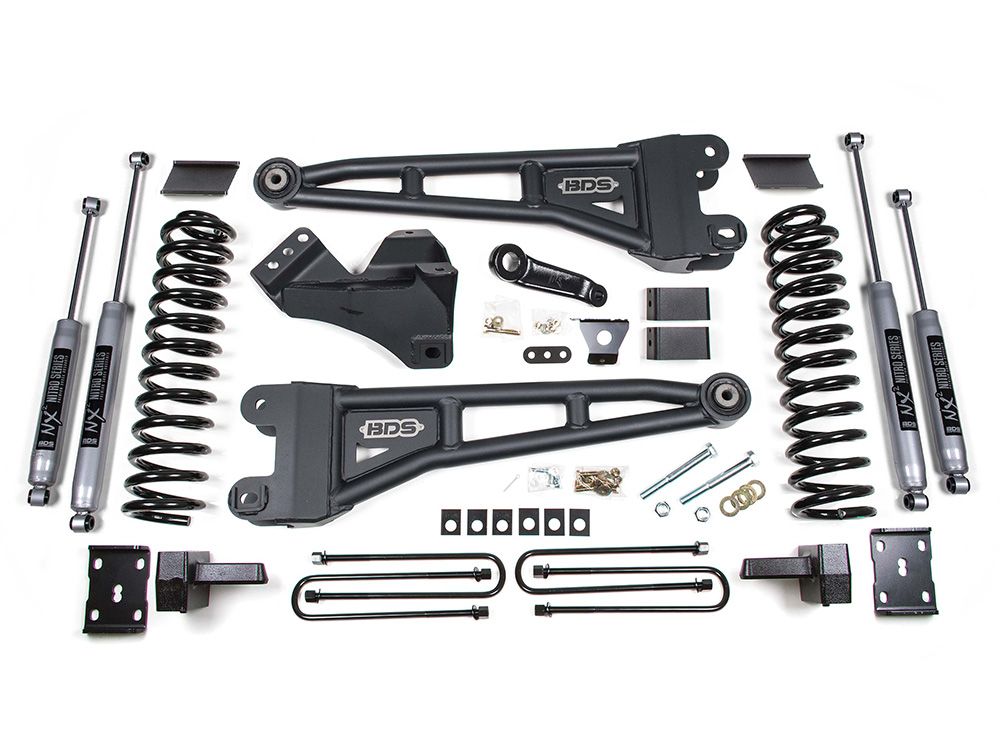

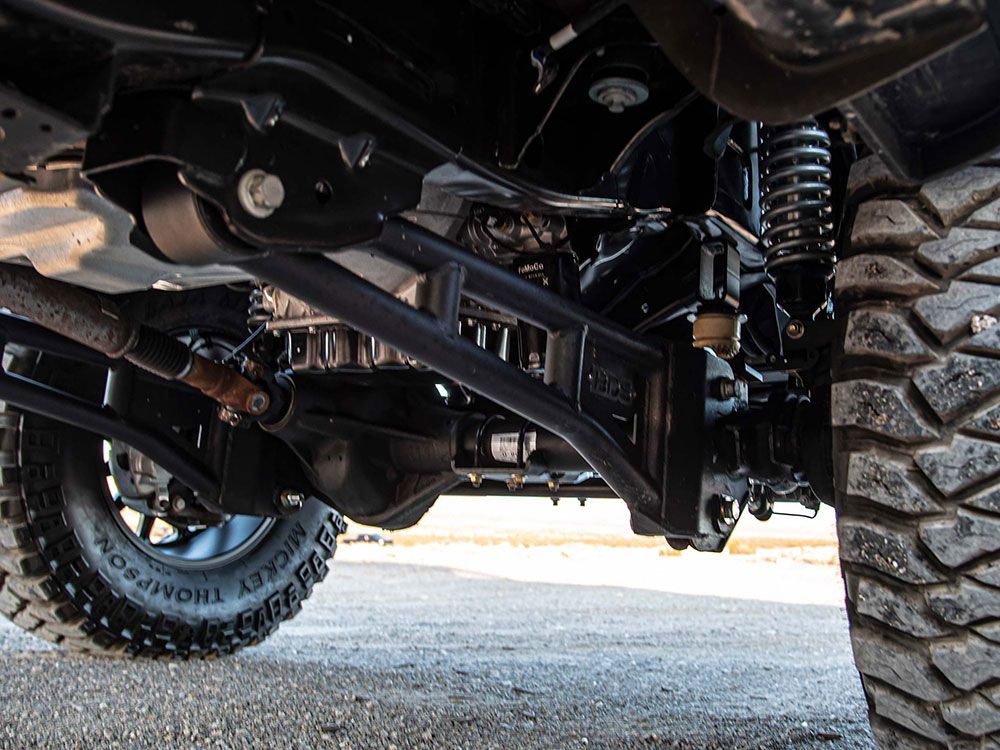

The BDS Suspension BDS1596FS / BDS1596H is an great method to lift your Ford F250 / F350 to allow for use of up to 35 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 4 inches while maintaining performance and ride quality. A forged drop pit man arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions and brake line relocation brackets.

In the rear the factory blocks are replaced by a pair of 4.5 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Features and Benefits:

  • 4 inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pit man arm to correct steering angles

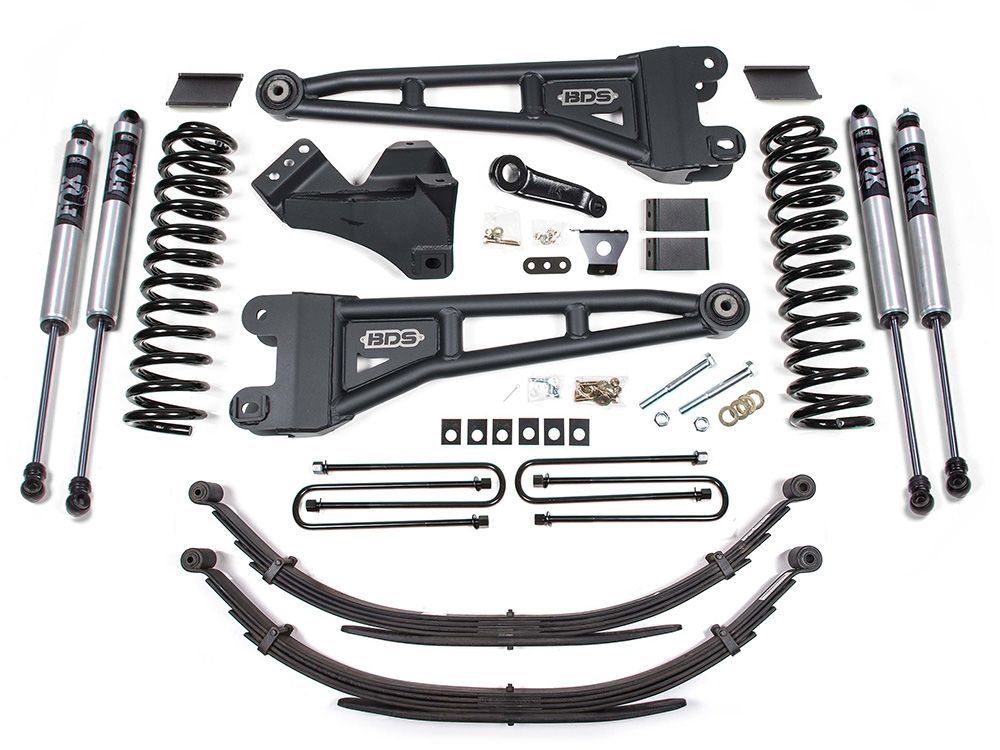

  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 35 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 35" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 35" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

All Possible SKUs Depending on Options Selected: BDS1596H, BDS1596FS, BDS1597H, BDS1597FS, BDS1598H, BDS1598FS, BDS1599H, BDS1599FS

Important Notes1. Removal of factory block required. Net rear lift height will vary depending on height of factory block, but will result in a level stance.
2. Front exhaust modification may be required to clear front drive shaft (gas only).
3. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
4. Although extremely rare, front and/or rear driveline vibration may occur.
5. If equipped with rear sway bar, #123009 required.
6. U-bolts will not work on dually.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1596FS / BDS1596H / BDS1597FS / BDS1597H
Item Numberbds_bds1596h
Product LineLift Kits
Lift Height4 inch
