8" 2011-2016 Ford F250/F350 4WD 4-Link Lift Kit by BDS Suspension

This BDS Suspension BDS1500H 8 inch lift kit for the Ford F250 and F350 trucks features a 4-Link conversion system that replaces the factory radius arms. Why a 4-link system? It's simple, with 10 inch of wheel travel there is less than 1 degree of caster change (front axle rotation), this means control in the steering wheel over rough terrain. The stability in the steering wheel is noticeable even under normal driving conditions.

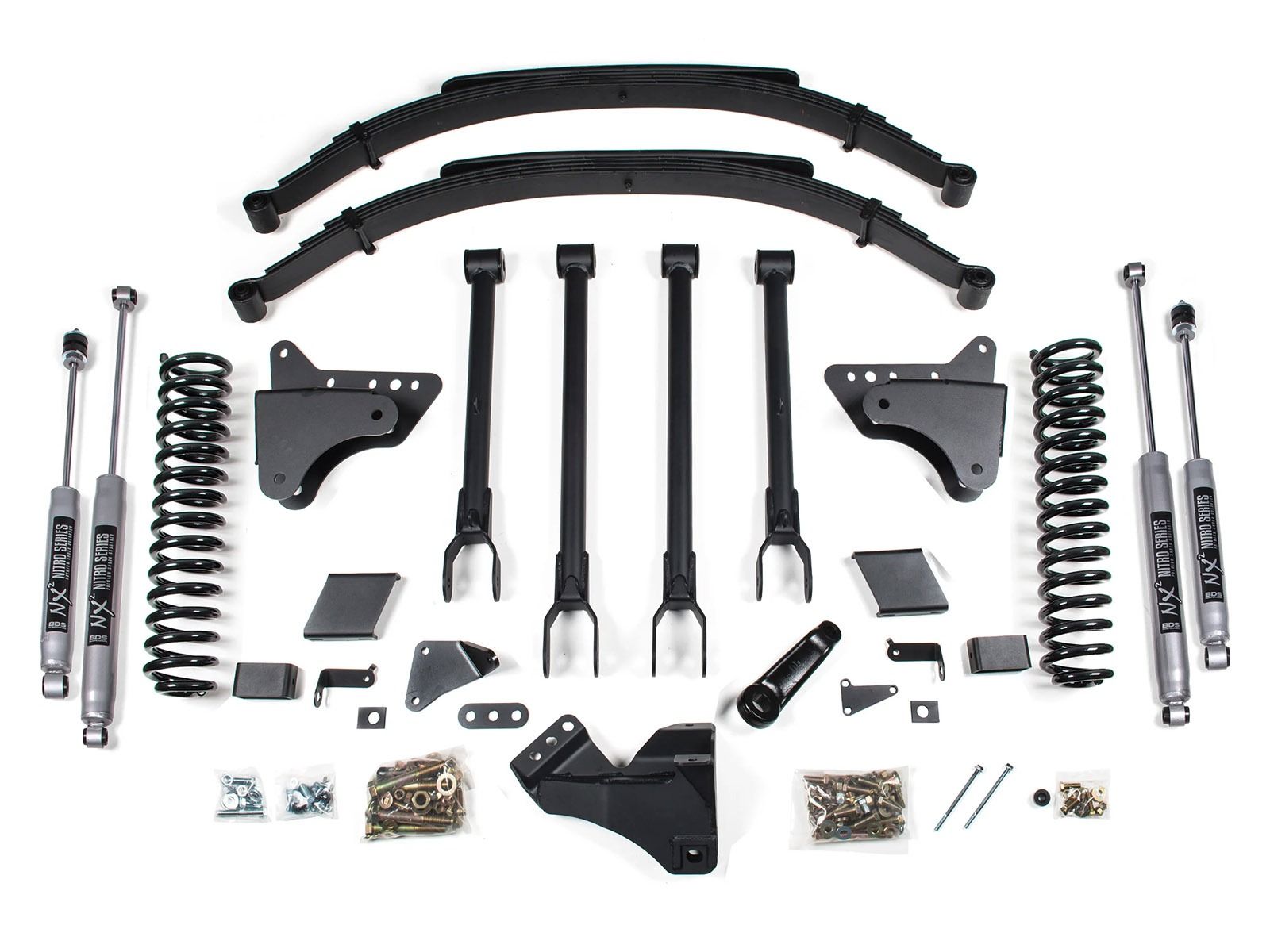

In addition to 4 massive control arms, this kit comes with new 4-link frame mounting brackets. These are not drop down brackets, but new mounts to replace the stock mounting system. Don't worry, no welding required. The kit also comes with front anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle, stainless steel brake lines and bump stop extensions. The rear is lifted via new Glide-Ride Leaf Springs that provide an excellent ride while still having the payload capacity you need from your truck.

Features and Benefits:

• 4 Link Control Arms for superior suspension performance
• Glide Ride rear leaf springs
• Lifts front 8 inches / Rear 6 inches for level ride
• Allows use of up 38 inch x 15.5 inch w/ 17 x 9 and 4.5 inch back spacing
• Average Install Time: 8 hours
• Proudly made in the USA, using only premium quality components
• Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
