6" 2014 Ford F150 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1503H / BDS1503FS
From $1,803.67 Regular Price $1,898.60

6" 2014 Ford F150 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1503H / BDS1503FS
From $1,803.67 Regular Price $1,898.60


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

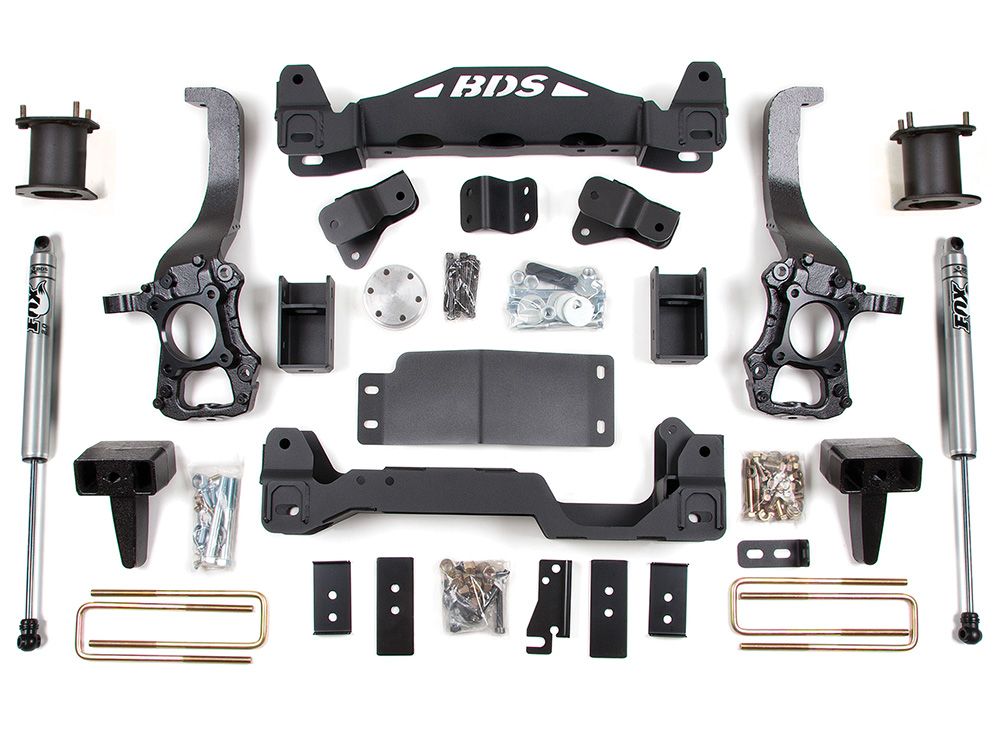

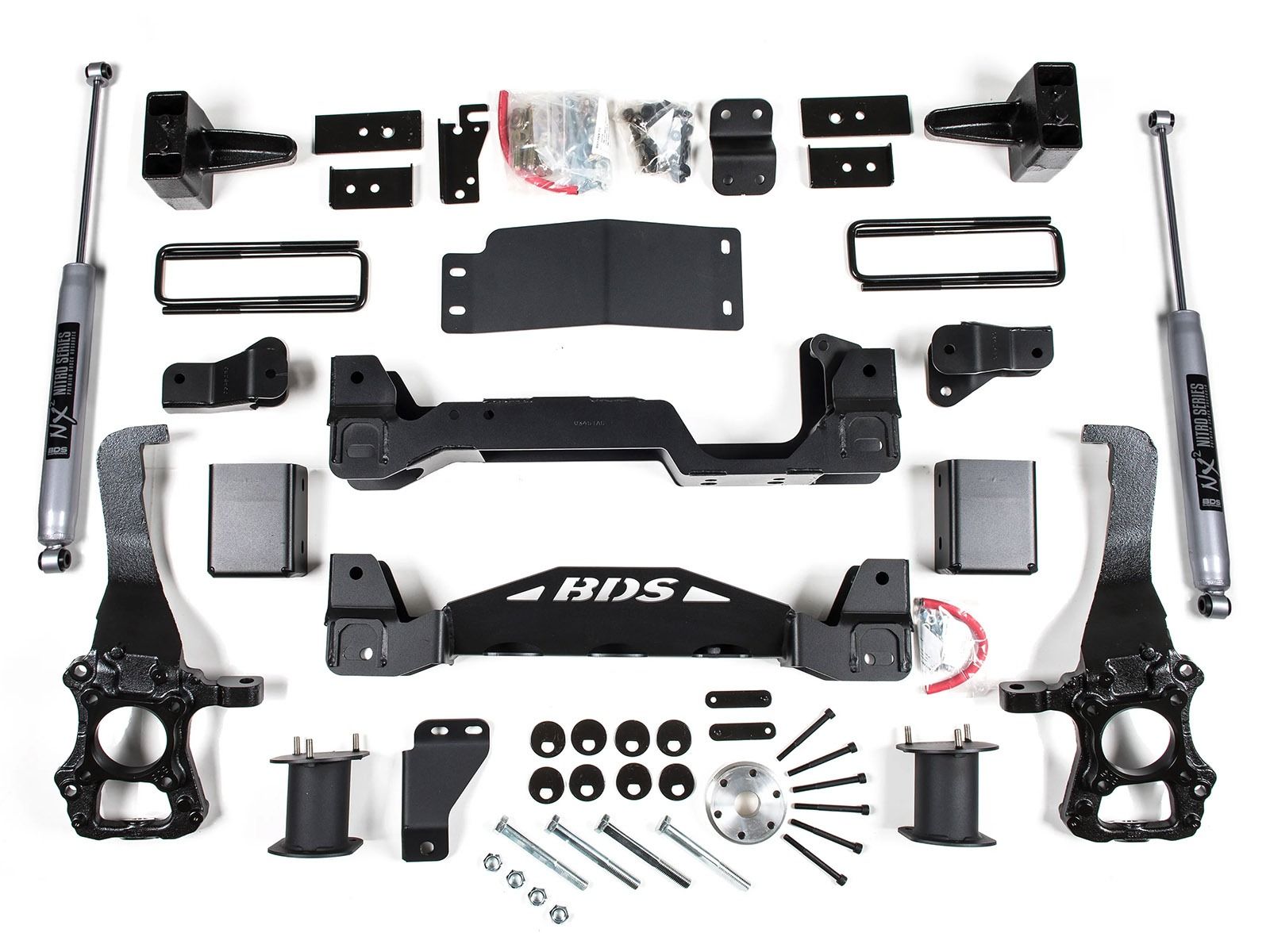

The BDS Suspension BDS1503H 6-inch premium lift kit for the Ford F150 4WD truck is designed to allow fitment of up to 37-inch tires. This system includes CNC machined steering knuckles to return your vehicle's steering to factory geometry. One-piece front and rear High Clearance cross members increase rigidity for long-term performance and dramatically increase ground clearance. A 1/4" thick steel differential skid plate is included to ensure off-road protection. The new strut spacers for the front offer easier installation without the need to disassemble the struts and maintain the OE ride quality.

The rear is lifted with a new block and includes a new offset spring plate to center the rear axle and give your 37-inch tires plenty of room.

All possible SKUs depending on options selected: BDS1503H, BDS1503FS, BDS1921H, BDS1921FS

Features and Benefits:

  • Allows use up to 37-inch diameter tires
  • Premium Quality Components
  • Fox 2.0 Performance Rear Shocks or BDS NX2 Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Powder Coated for Durability
  • Estimated Install Time: 8-10 hours
  • No Fine Print Lifetime Warranty
  • 37" x 12.50" w/18 x 9 and 5" backspacing
  • 37" x 12.5" w/20 x 9 and 5-5" back spacing
  • 35" x 12.50" w/18 x 9 and 5" backspacing
    • *Trimming may be required*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.

Important Notes1. Requires frame bracket modification and welding.
2. 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
3. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
4. E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4" block.
5. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
6. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
7. Will not fit HD models (7 lug).
8. This kit is FMVSS No.126 Compliant
Vehicle Fitment
MakeFord
ModelF150
Year Fitment2014
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1503H / BDS1503FS
Item Numberbds_bds1503h
Product LineLift Kits
Lift Height6 inch
