2.5" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Lift Kit by BDS Suspension

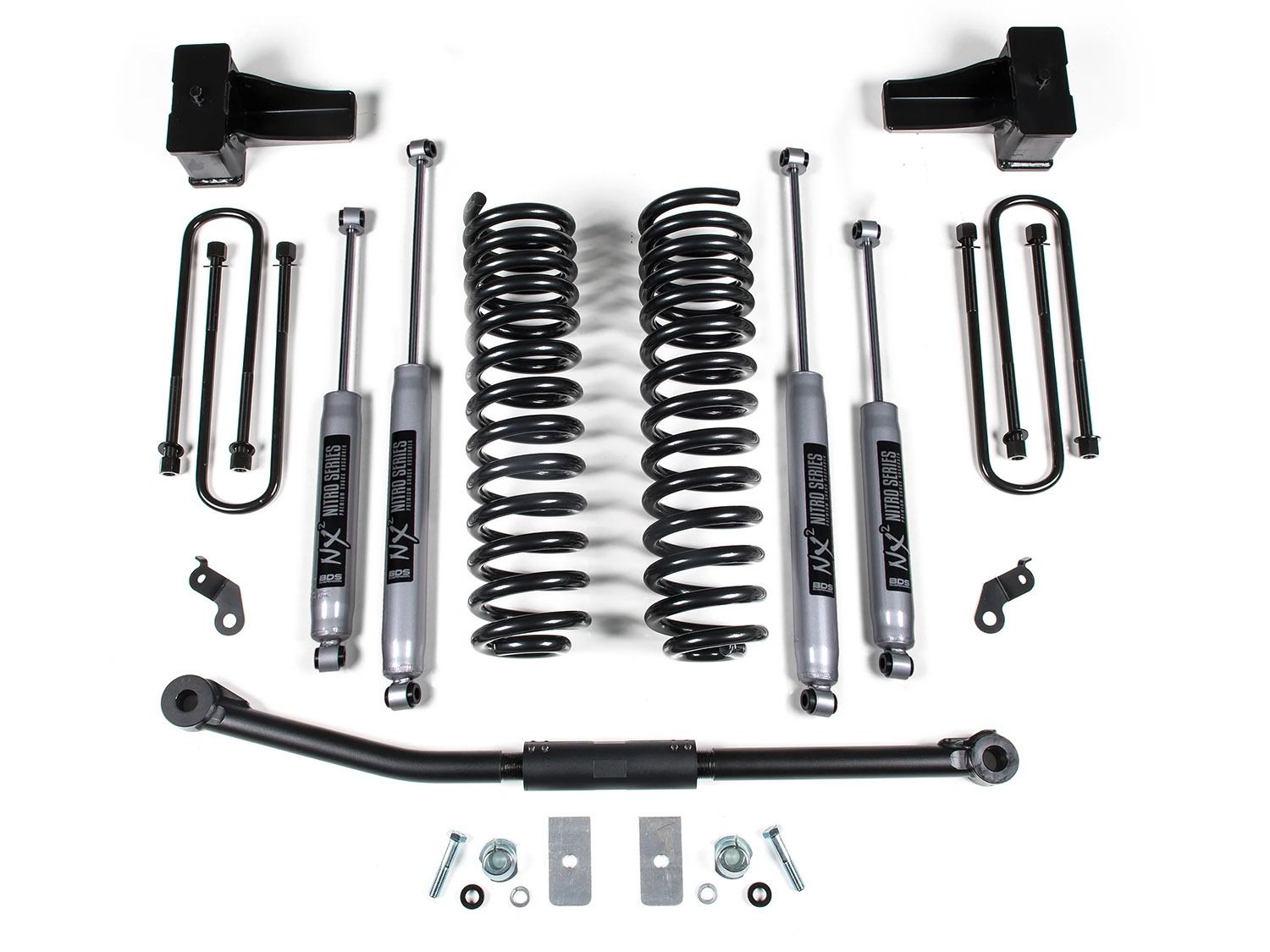

This BDS Suspension BDS1510FS / BDS1510H 2.5 inch lift kit is perfect for the F250 / F350 owner looking for a lifted and leveled stance with the performance of dual rate coil springs. This kit is complete with new front dual rate coils, brake line relocation brackets, turnbuckle style adjustable front track bar, ball joint cams, coil shims, rear replacement block kit and your choice of shocks.

The key to this kit is the coil seat correction shims and upper ball joint cams. The coil seat shims reposition the lower seat to be square with the frame mount to minimize coil bow which is typical of leveled F250/F350 trucks when the radius arms aren't relocated or replaced. The ball joint cams return the caster to factory settings to provide stock-like handling and drivability.

This is a great kit for those who want more than just a spacer but aren't quite ready to jump into the full replacement radius arm system.

The rear block box kit replaces the factory 2" block on F250 models for a level stance. On F350 models with factory 3-7/8" blocks, the rear box kit can be omitted and achieve the same stance.

Features and Benefits:

• Dual rate coils springs
• Turnbuckle style front track bar
• Allows for use of 35 inch x 12.5 inch tires, w/ 17 x 9 Rims w/5 inch back spacing
• Premium Quality Components
• Made in the USA
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 4 Hours
• Fits 35 inch x 12.5 inch w/ 17 x 9 tire with 5 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

All Possible SKUs Depending on Options Selected: BDS1510H, BDS1510FS, BDS1925H, BDS1925FS
