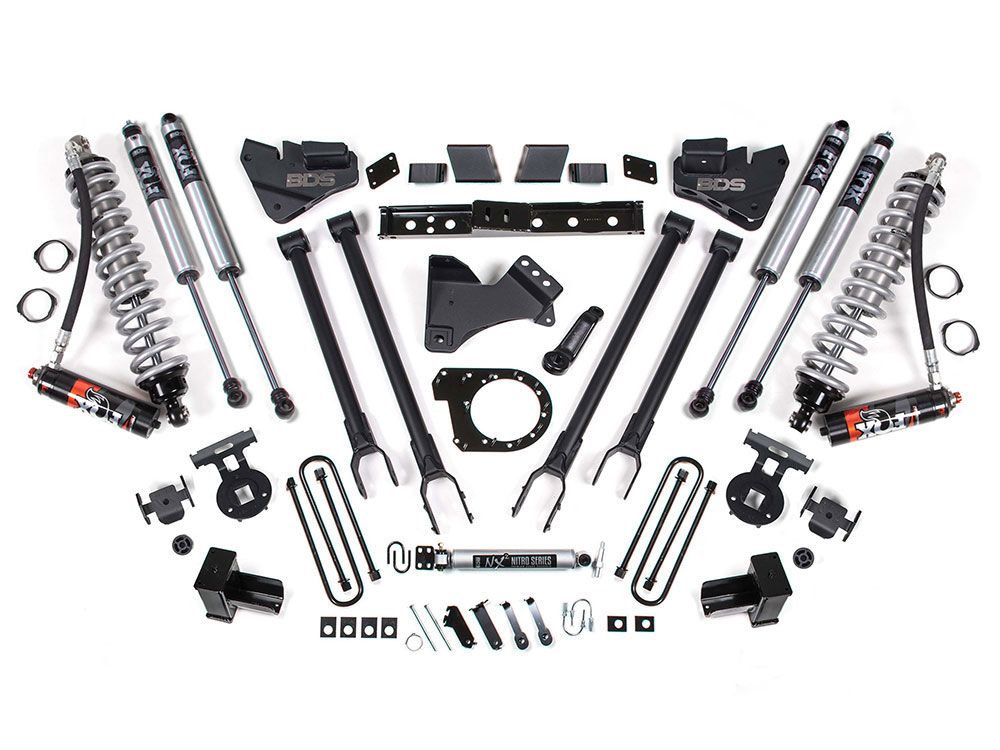

6" 2017-2019 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite Coilover 4-Link Arm Lift Kit by BDS Suspension

The BDS Suspension BDS1527FPE 6-inch coil-over 4-link arm lift kit for the Ford F250 / F350 will allow for up to 38-inch diameter tires. This premium suspension system is designed to replace the factory radius arms with BDS's 4-link arm conversion and replace the factory coil springs with Fox 2.5 Performance Elite remote reservoir coilovers. This will give your truck's wheel travel improved stability, strength, and caster control, as well as the ability to tame any off-road trail. The Fox coilovers feature DSC (dual speed compression) adjustability to allow you to fine-tune your ride with the turn of a dial. The front axle remains centered using a heavy-duty track bar relocation bracket. A forged drop pitman arm maintains proper steering angles.

In the rear the factory blocks are replaced by a pair of lift blocks (size depends on number of main leafs in OE leaf springs) that feature integrated bump stop wings along with e-coated extended u-bolts. Optional leaf springs are available for increased traction control.

To improve ride quality and performance, you can choose Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body). Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Features and Benefits:

• Fox 2.5 Performance Elite Remote Reservoir Coil-overs replace factory coil springs
• Coilovers feature DSC (dual speed compressions) adjustability to allow fine tuning of your ride with the turn of a dial for low and high speeds
• 4-LInk Conversion Kit (replaces factory radius arms)
• Better stability, strength, and caster during front wheel travel
• Front track bar bracket to center axle
• Forged drop pitman arm to correct steering angles
• Choose from Fox 2.0 Performance Shocks (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 38-inch tires
• Average Install Time: 8 - 10 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Recommended Tire Sizes

• 38" x 13.50" w/17 x 9 and 4.5"-5" backspacing
• 38" x 13.50" w/18 x 9 and 4.5"-5" backspacing
• 38" x 13.50" w/20 x 9 and 4.5"-5" backspacing
• 38" x 13.50" w/17 x 10 and 5" backspacing
• 38" x 13.50" w/18 x 10 and 5" backspacing
• 38" x 12.50" w/20 x 10 and 5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
