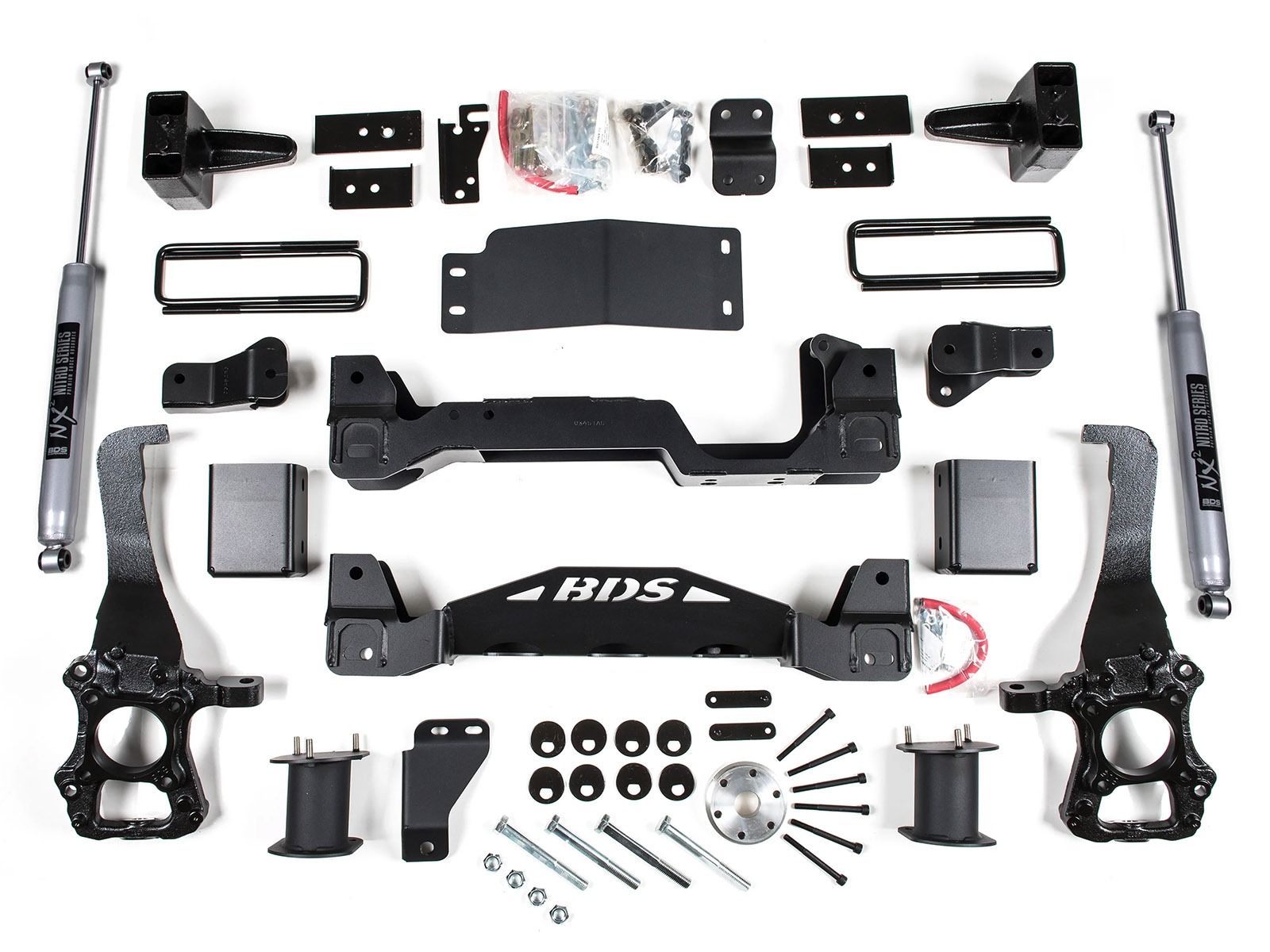

This BDS Suspension BDS1532H / BDS1532FS 6-inch lift kit for the Ford F150 4wd models is an awesome upgrade for your truck's suspension and will allow for the use of up to 37-inch tires. This is done without sacrificing ride quality and handling.

Utilizing a pair of one-piece laser cut 1/4" steel cross members, CNC-machined ductile iron steering knuckles, differential relocation brackets, heavy-duty differential skid plate, and upper strut mount spacers to retain the OE ride quality, bump stop extensions, sway bar relocation, new cam bolts, and billet aluminum driveshaft spacer. In the rear, a 5'' offset pin block kit re-centers the rear axle in the wheel well and replaces the factory block to eliminate stacking blocks and level the truck's stance. Rear brake line extensions and your choice of rear BDS-NX2 series or Fox 2.0 shocks round out the kit.

All possible SKUs based on options selected: BDS1532H, BDS1532FS, BDS1922H, BDS1922FS

Features and Benefits:

• Lifts vehicle 6-inch front / 5-inch rear
• 1/4 Inch Steel High Clearance Cross members
• Heavy Duty Front Skid Plate
• High Clearance design max clearance
• Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
• Multi-Point Front Differential Relocation System
• Allows use of up 37-inch tires
• Average Install Time: 8-10 hours
• Proudly made in the USA, using only premium quality components
• No Fine Print Lifetime Warranty
• FMVSS No. 126 (ESC System) Compliant
• Factory Protection Plus
• Fits up to 37 inch x 12.5 inch tire w/ 18 x 9 and 5 inch backspacing
• Fits up to 35 inch x 12.5 inch tire w/ 18 x 9 and 5 inch backspacing
• Fits up to 37 inch x 12.5 inch tire w/ 20 x 9 and 5-5.5 inch backspacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
