4" 2015-2020 Ford F150 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1533H / 1533FS
As low as $2,007.96 Regular Price $2,043.60

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension 1533H / 1533FS 4 inch lift kit for the Ford F150 4wd models is an awesome upgrade for your truck's suspension and will allow for use of up to 37 inch tires.  This is done without sacrificing ride quality and handling.

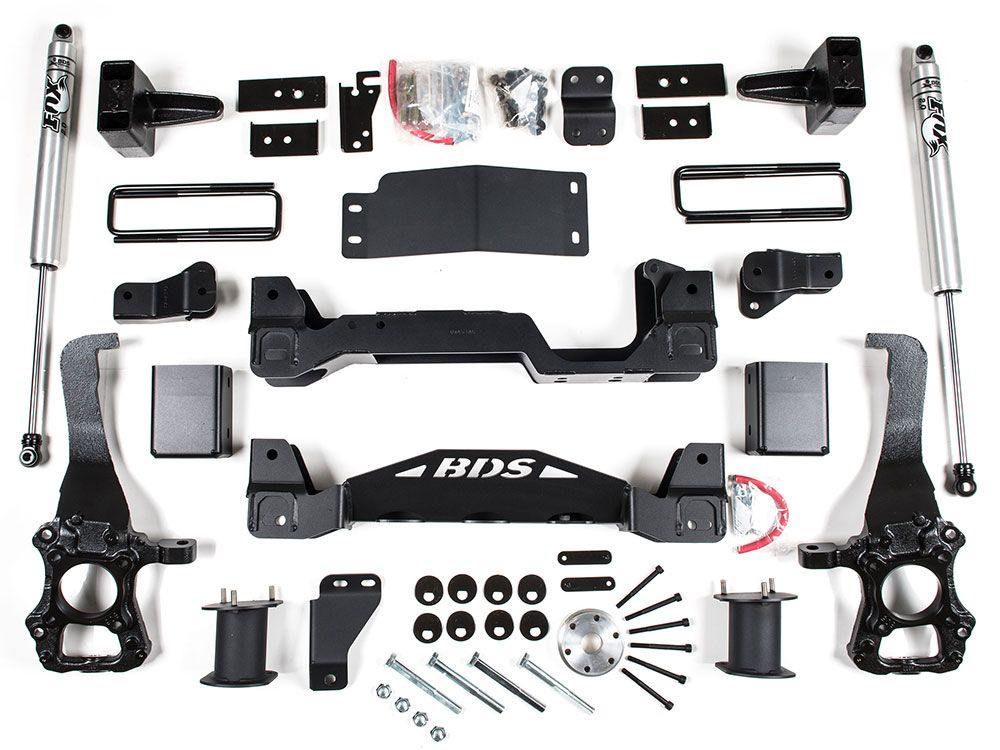

Utilizing a pair of one-piece laser cut 1/4" steel cross members, CNC-machined ductile iron steering knuckles, differential relocation brackets, heavy duty differential skid plate, upper strut mount spacers to retain the OE ride quality, bump stop extensions, sway bar relocation, new cam bolts, and billet aluminum driveshaft spacer. In the rear a 5'' offset pin block kit re-centers the rear axle in the wheel well and replaces the factory block to eliminate stacking blocks and level the stance of the truck. Rear brake line extensions and your choice of rear BDS-NX2 series or Fox 2.0 shocks round out the kit.

Features and Benefits:

  • Lifts vehicle 6 inch front / 5 inch rear
  • 1/4 Inch Steel High Clearance Cross members
  • Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Allows use of up 37 inch tires
  • Average Install Time: 8-10 hours
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • Fits up to 35 inch x 12.5 inch tire w/ 18 x 9 and 5 inch backspacing
  • Fits up to 35 inch x 12.5 inch tire w/ 18 x 9 and 5-5.5 inch backspacing
  • Fits up to 35 inch x 12.5 inch tire w/ 20 x 9 and 5-5.5 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • For a level to tail low appearance use #bds_023416 with Kit#1502H or use #bds_013429 with Kit#bds_1503H. Block kits replace factory 1-1/4" block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #bds_122406
  • Vehicle Fitment
    Year Fitment2020, 2019, 2018, 2017, 2016, 2015
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1533H / 1533FS
    Item Numberbds_1533h
    Product LineLift Kits
    Lift Height4 inch
