4" 2017-2019 Ford F250/F350 4WD 4-Link Arm Lift Kit by BDS Suspension
Brand: BDS | SKU: 1537H
FREE SHIPPING !!
on orders +$99, exclusions apply
Got Questions? We can help!

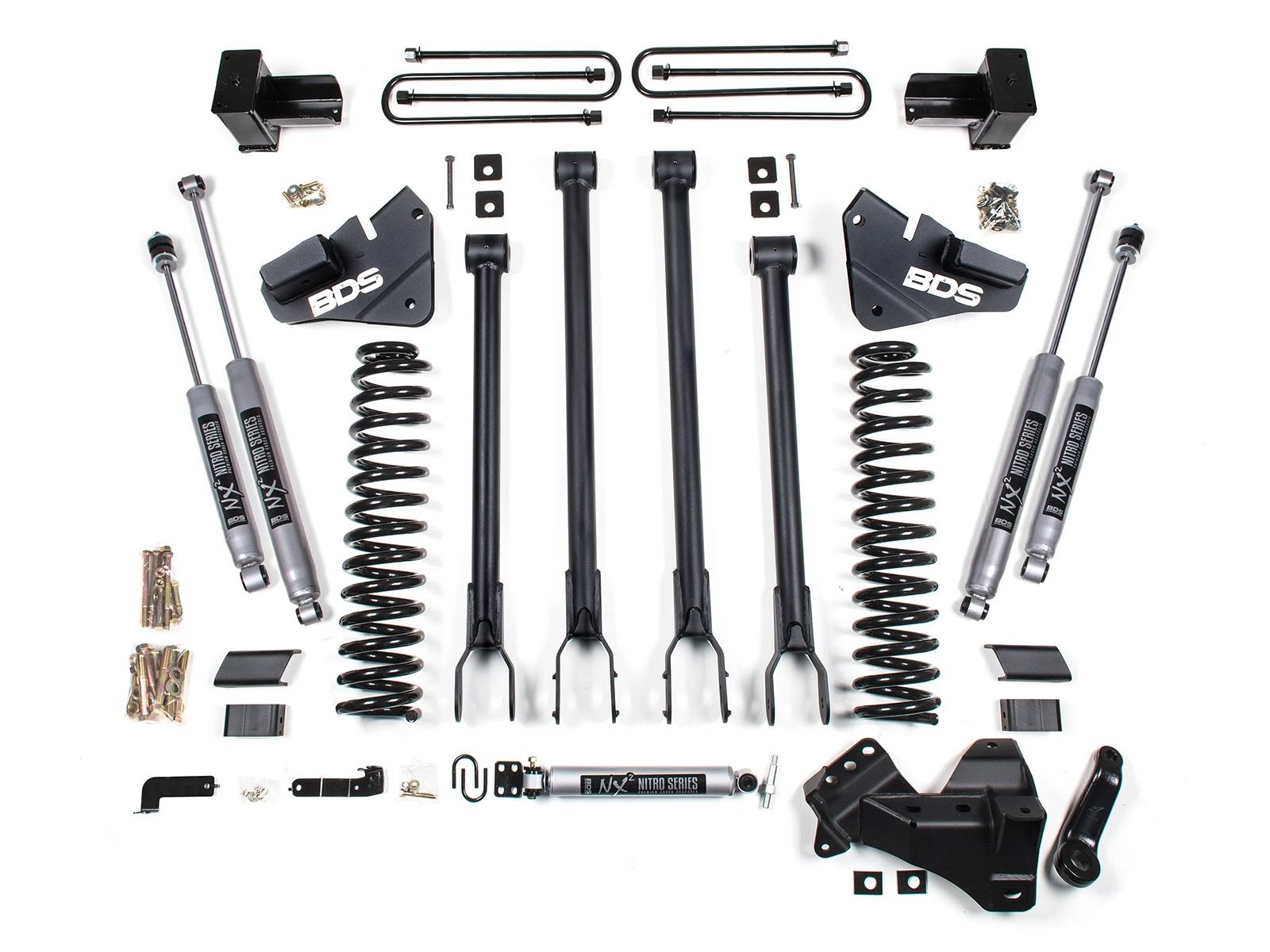

The BDS Suspension 1537H 4 inch 4-link arm lift kit for the Ford F250 / F350 with allow for use of up to 37 inch diameter tires. This awesome suspension system is designed to replace the factory radius arms with BDS's 4-link arm conversion. This will give your truck's wheel travel improved stability, strength and caster control. BDS ProRide front coil springs lift the front end 4 inches while maintaining performance and ride quality. The front axle remains centered with the use a heavy duty track bar relocation bracket. A forged drop pitman arm maintains proper steering angles.
In the rear the factory blocks are replaced by a pair of lift blocks (size depends on number of main leafs in OE leaf springs) that feature integrated bump stop wings along with e-coated extended u-bolts.
Top Features and Benefits
Tire & Wheel Combinations
Premium Quality, Lifetime Warranty and Protection
BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
|Important Notes||1. Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance.
2. Front exhaust modification may be required to clear front drive shaft (Gas Only)
3. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
4. 37 x 12.50 tires may require minor trimming.
5. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
6. Image shown with optional Fox 2.0 Performance shocks.
|Manufacturer Part Number||1537H|
|Lift Height||4 inch|
|Product Type||Suspension Lift Kit|
