3.5" 2019 Ford Ranger 4WD Fox Coilover Lift Kit by BDS Suspension


Brand: BDS | SKU: 1545FSL


free shipping truck  FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Product Overview
More Information

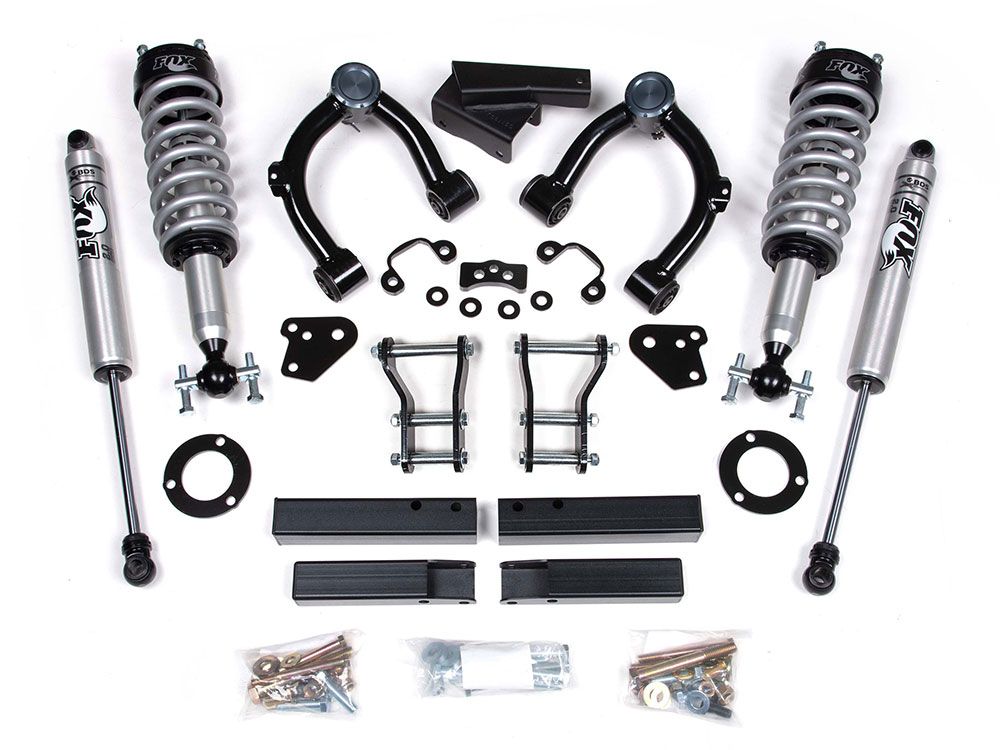

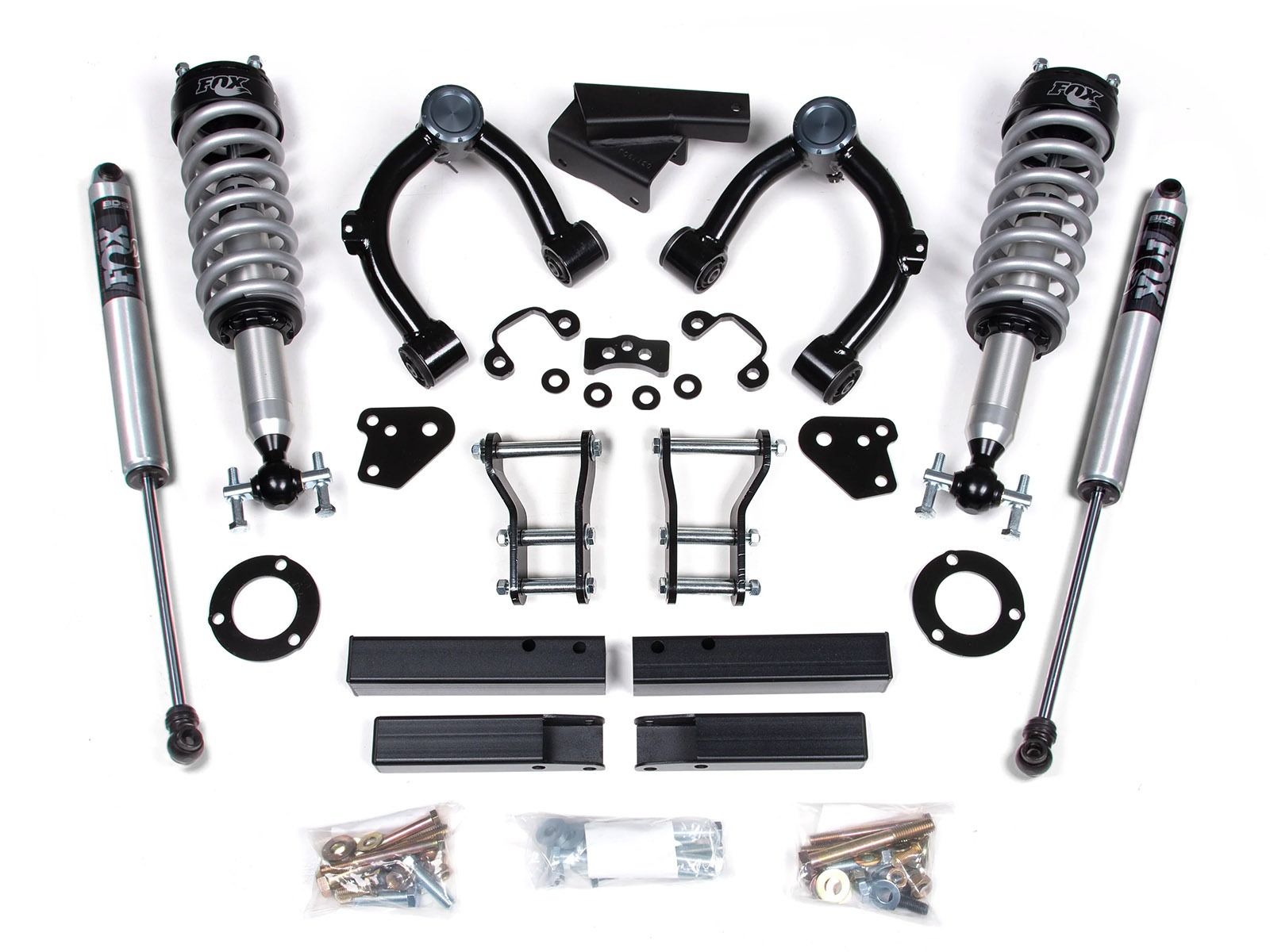

The BDS Suspension 1545FSL 3.5 inch premium lift kit for the Ford Ranger will allow use of up to 34 inch tires when used with proper backspacing. This lift kit features Fox 2.0 Performance Series Coilovers.  These 2 inch diameter aluminum body coil-overs will improve handling performance and are preset to the correct height.  High performance upper control arms made of 1.5 inch DOM tubing reindex the upper ball joints to allow for more suspension droop travel. Differential relocation brackets correct CV axle angles.

The rear features 1 inch lift leaf spring shackles made of 3/8 inch heavy duty steel. Fox 2.0 Performance rear monotube gas shocks match the dampening performance with the front.

Top Features and Benefits

  • Lifts vehicle 3.5 inch front / 1 inch rear (levels vehicle)
  • Fox 2.0 Performance Coilovers for high performance handling
  • Performance upper control arms with greaseable ball joints
  • Front differential drop brackets
  • Fox 2.0 Performance rear shocks
  • Heavy duty rear lift shackles
  • Allows use of up 34 inch tires (275/65r/20)
  • Average Install Time: 4 hours
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • 275/65R w/20x9 rims and 6.18" back spacing
  • 285/66R w/18x9 rims and 5.5-5.75 back spacing
  • 305/55R w/20x9 rims and 5" back spacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Installation Instructions

1545FSL Instructions.pdf

Important Notes
  • Aftermarket wheels must have a minimum of 93.1mm center hub bore.
  • Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
Manufacturer BDS Suspension
Manufacturer Part Number 1545FSL
Item Number bds_1546h
Make Ford
Model Ranger
Year Spans 2019
Lift Height 3 inch
Product Type Suspension Lift Kit
