3.5" 2019-2023 Ford Ranger 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1545H
$1125.65
- +
1125.65

3.5" 2019-2023 Ford Ranger 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1545H
From $1,125.65 Regular Price $1,184.89

3.5" 2019-2023 Ford Ranger 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1545H
From $1,125.65 Regular Price $1,184.89


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS1545 Ford Ranger 3.5 inch suspension lift kit builds off the factory mounting points and offers improved strength, ground clearance and suspension travel. The new ride height is the result of a combination top mounted steel fabricated strut spacer along with preload spacer for a total 3.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axles and other front end components. Also supplied for the front end are a pair of performance upper control arms (UCA) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCA's utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable Moog ball joints and Clevite rubber bushings for long life, quiet operation and superior corrosion resistance over uni-balls and heims. Finishing out the front of these 3.5" systems is a small differential relocation to help further improve CV axle operating angle.

In the rear of these lift systems the factory leaf springs are retained and 1" lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8" steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5" lift kits are your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks for improved damper performance. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Features and Benefits:

  • Lift front 3.5 inches / rear 1 inch for level ride
  • Allows for use of larger diameter tires
  • Tubular heavy duty upper control arms w/clevite rubber bushings
  • 1 inch rear heavy duty shackle keeps factory ride
  • Premium Quality Components
  • Fox 2.0 Performance or BDS NX2 Rear Shocks
  • Estimated install time: 4 hours
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Fits 285/70r17 w/17" and back spacing
  • Fits 285/16r18 w/18" and back spacing
  • Fits 275/65r18 w18x9 and 6.125" back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes

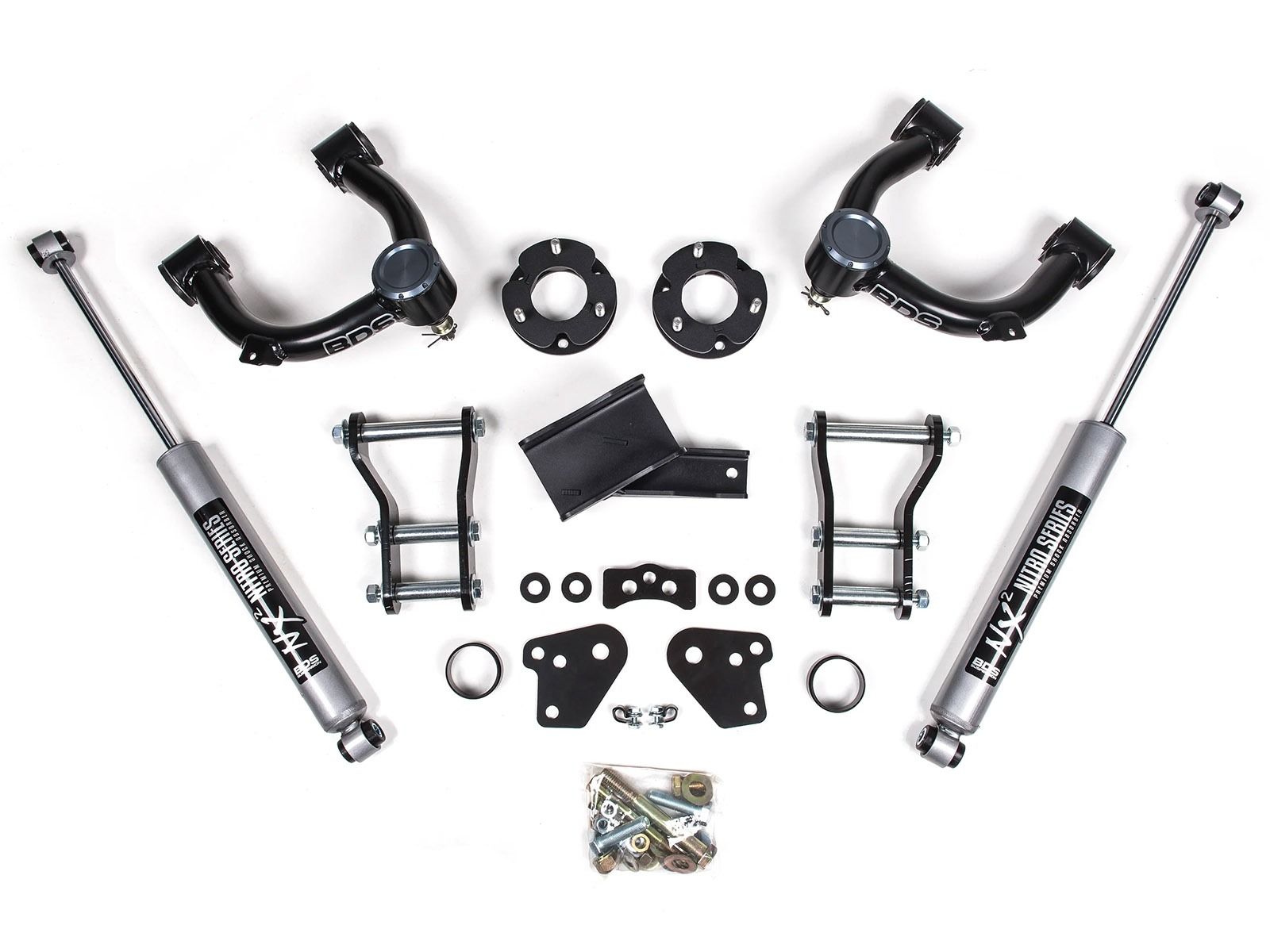

  • Note: Product image shows Fox 2.0 Performance Shocks (optional)
  • Aftermarket wheels must have a minimum of 93.1mm center hub bore
  • Tires larger than 285/70r17 or 285/65r18 cannot be instilled on factory wheels due to steering knuckle clearance
  • Strut disassembly required, high quality wall mounted strut compressor and skilled technician recommended
  • Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering.
  • Vehicle Fitment
    MakeFord
    ModelRanger
    Year Fitment2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1545H
    Item Numberbds_bds1545h
    Product LineLift Kits
    Lift Height3 inch
