5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1551FPE
$4328.68
- +
4328.68

5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1551FPE
From $4,328.68 Regular Price $4,556.50

5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1551FPE
From $4,328.68 Regular Price $4,556.50


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

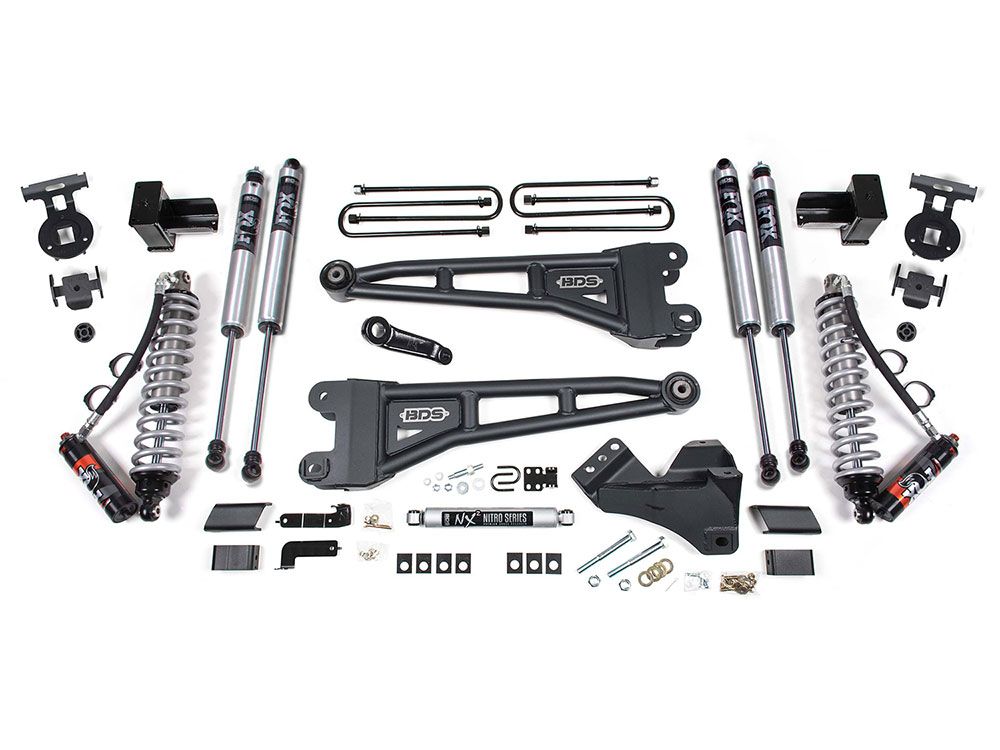

This BDS Suspension BDS1551FPE is the ultimate premium 5 inch suspension lift kit for the Ford F250 / F350 Super Duty trucks. Featuring Fox 2.5 Performance Elite Remote Resi Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

In the rear the factory blocks are replaced by a pair of 4.5 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts or upgrade to BDS Glideride rear leaf springs for better traction and load support

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Ultimate Premium 5 inch Suspension Lift Kit for Ford F250 / F350 models
  • Fox 2.5 Performance Elite Coil-Overs replace factory coil springs
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pitman arm to correct steering angles
  • Fox 2.0 Performance Shocks
  • Allows use of up to 37 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Important Notes1. Fits Diesel models only.
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. If installed on a truck with a top mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) are required.
4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
9. Installation requires a torque wrench capable of 405 ft-lbs.
10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1551FPE
Item Numberbds_bds1551fpe
Product LineLift Kits
Lift Height5 inch
EngineDiesel
