7" 2020-2022 Ford F250/F350 (w/diesel engine) 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1561FS / 1561H
$1899.53
- +
1899.53

7" 2020-2022 Ford F250/F350 (w/diesel engine) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1561FS / 1561H
From $1,899.53 Regular Price $1,999.50

7" 2020-2022 Ford F250/F350 (w/diesel engine) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1561FS / 1561H
From $1,899.53 Regular Price $1,999.50


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

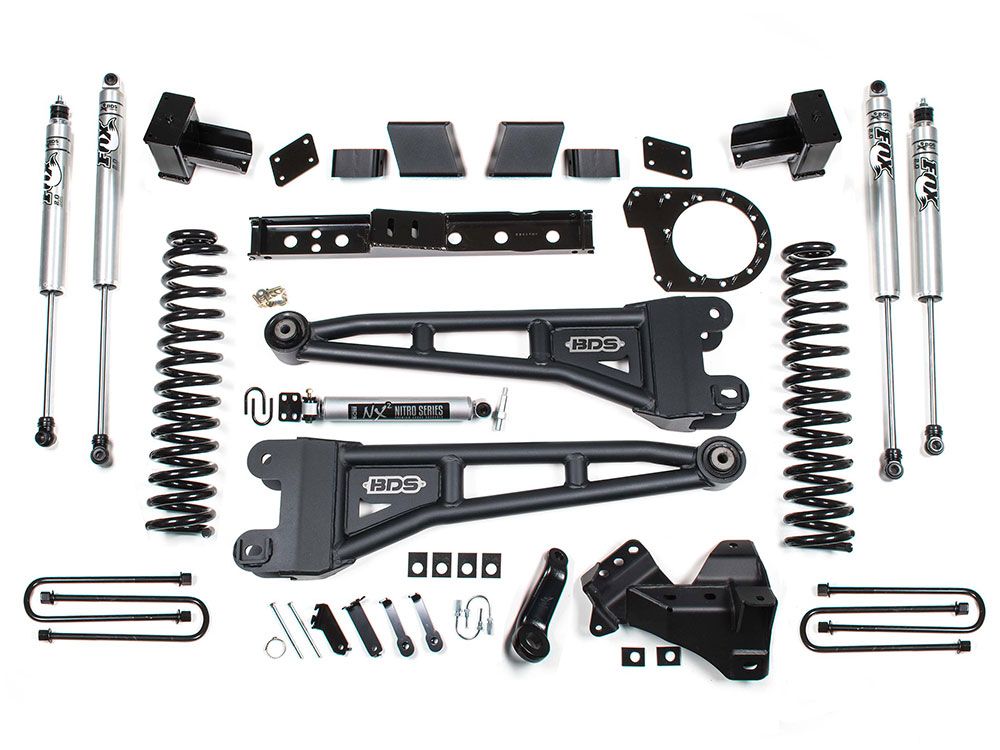

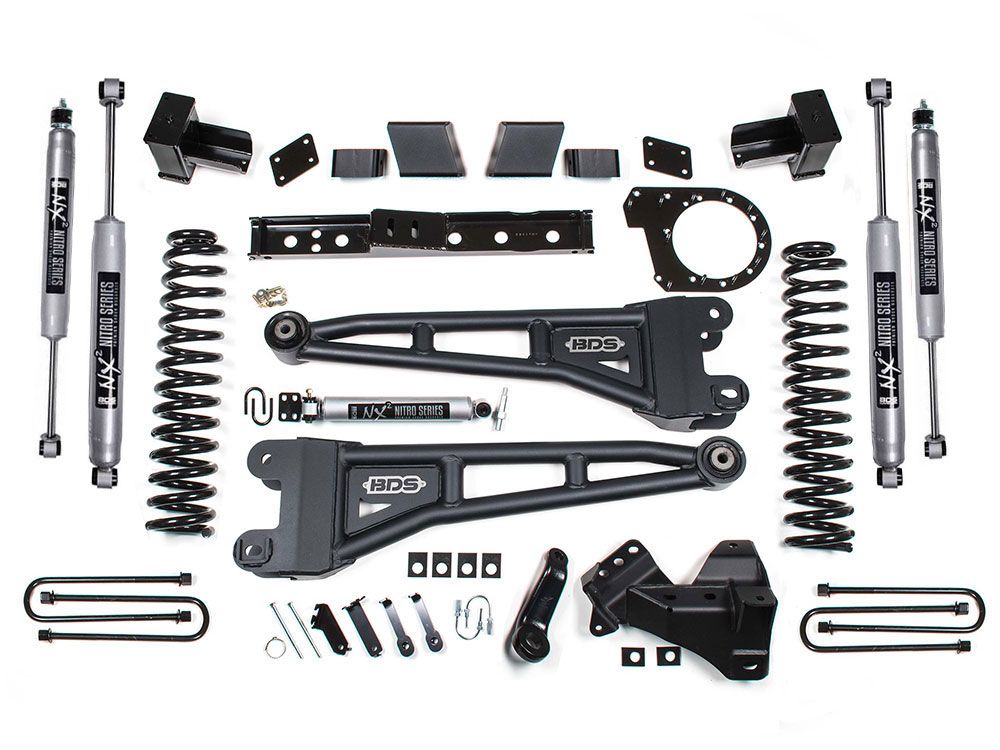

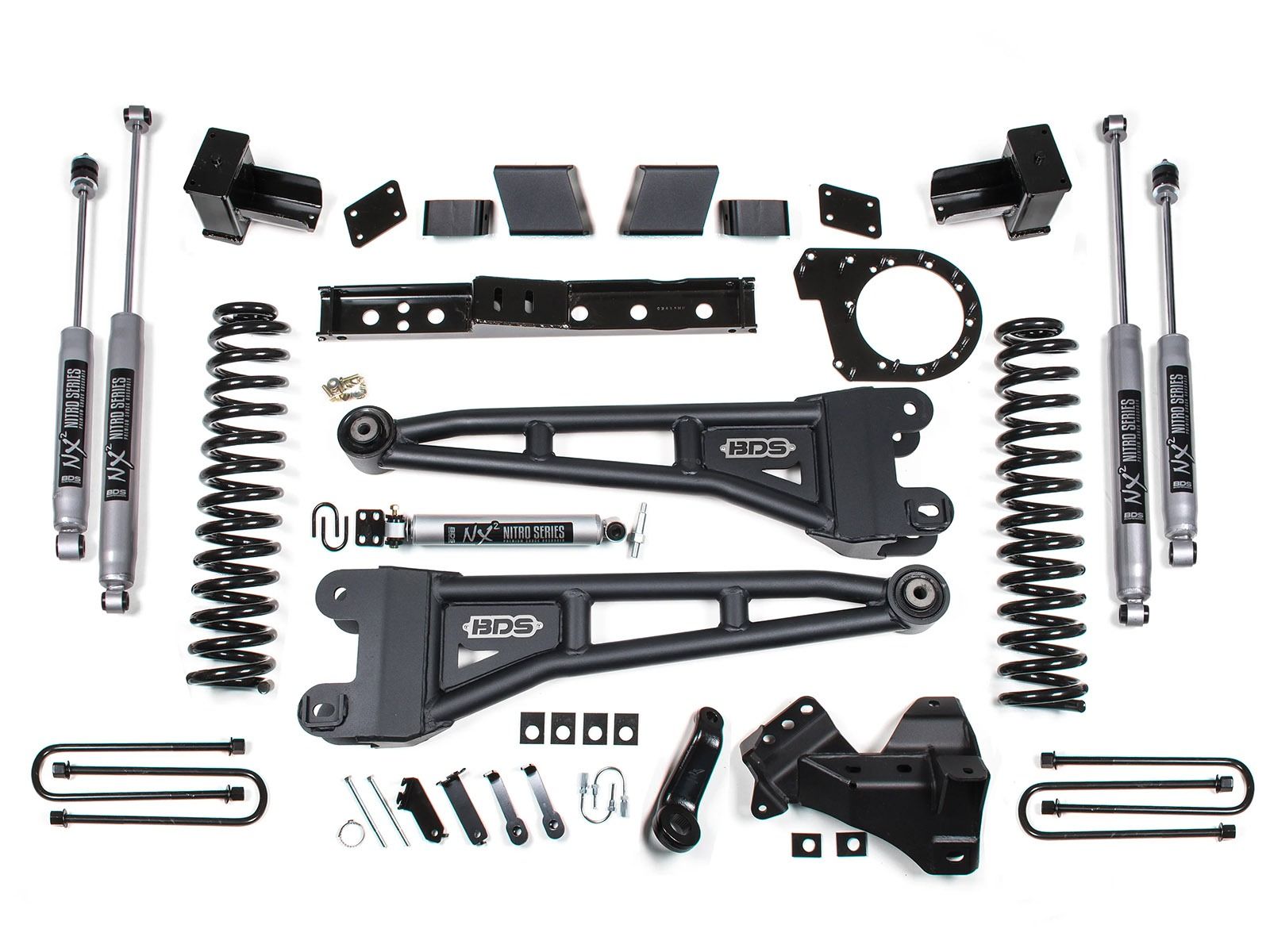

The BDS Suspension BDS1561H / BDS1561FS 7-inch lift kit is an excellent method to lift your Ford F250 / F350 4wd truck to allow for up to 38-inch diameter tires. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. It features a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm and a supplied integrated drag link flip correct steering angles. The front axle remains centered using a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by lift blocks that feature integrated bump stop wings and e-coated extended u-bolts. Or choose to upgrade to BDS Glide-Ride rear leaf springs for better traction control.

All possible SKUs depending on options selected: BDS1561H BDS1561FS BDS1562H BDS1562FS

Features and Benefits:

  • 7-inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pitman arm to correct steering angles
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 38-inch tires
  • Average Install Time: 6 to 8 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 38" x 13.50" tires w/17 x 9 and 4.5"-5" backspacing
  • Fits 38" x 13.50" tires w/18 x 9 and 4.5"-5" backspacing
  • Fits 38" x 13.50" tires w/20 x 9 and 4.5"-5" backspacing
  • Fits 38" x 13.50" tires w/17 x 10 and 5" backspacing
  • Fits 38" x 13.50" tires w/18 x 10 and 5" backspacing
  • Fits 38" x 12.50" tires w/20 x 10 and 5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
ProRide Coil Springs
This kit includes the BDS ProRide Coil Springs. Designed to not only lift your vehicle, but also improve ride and overall performance. Featuring an optimized spring rate for a smooth on-road ride and stability in harsh terrain.
Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!
Important Notes1. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
2. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
3. If your truck is equipped with a factory rear sway bar add: BDS123808 7. The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
8. The Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
9. Installation requires a torque wrench capable of 405 ft-lbs. 11. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1561FS / 1561H
Item Numberbds_bds1561h
Product LineLift Kits
Lift Height7 inch
EngineDiesel
