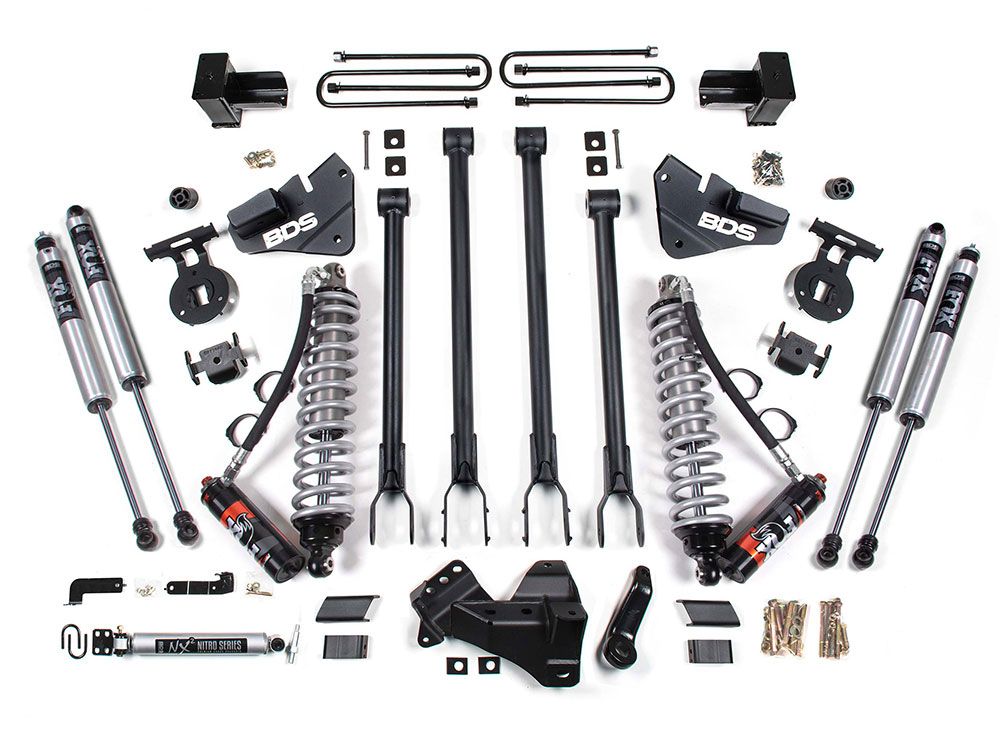

5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1567FPE / BDS1569FPE
$4701.08
- +
4701.08

5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1567FPE / BDS1569FPE
From $4,701.08 Regular Price $4,948.50

5" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox Performance Elite CoilOver 4-Link Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1567FPE / BDS1569FPE
From $4,701.08 Regular Price $4,948.50


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1567FPE / BDS1569FPE 5 inch Fox Coil-over 4-link arm lift kit for the Ford F250 / F350 with allow for use of up to 37 inch diameter tires. This awesome suspension system is designed to replace the front coil springs with Fox 2.5 Performance Elite Remote Reservoir Coil-overs and replace the factory radius arms with the BDS's 4-link arm conversion. This gives the truck great suspension performance along with better wheel travel, improved stability, strength and caster control. The front axle remains centered with the use a heavy duty track bar relocation bracket. A forged drop pitman arm maintains proper steering angles.

In the rear the factory blocks are replaced by a pair of lift blocks (size depends on number of main leafs in OE leaf springs) that feature integrated bump stop wings along with e-coated extended u-bolts. Or upgrade to BDS GlideRide replacement rear leaf springs for improved traction and support.

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Fox 2.5 Peformane Elite Remote Reservoir Coil-overs (replaces factory coil springs)
  • 4-LInk Conversion Kit (replaces factory radius arms)
  • Better stability, strength and caster during front wheel travel
  • Front track bar bracket to center axle
  • Allows use of up to 37 inch tires
  • Average Install Time: 8 - 10 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37" x 12.50" w/17 x 9 tires and 4.5"-5" back spacing
  • Fits 37" x 12.50" w/18 x 9 tires and 4.5"-5" back spacing
  • Fits 37" x 12.50" w/20 x 9 tires and 4.5"-5" back spacing
  • Made in the USA

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Ford 4-Link Long Arm Upgrade
This awesome upgrade replaces Ford factory radius arms with a 4-link long arm control arm system. This gives superior handling and ride control by giving consistant caster angle through full wheel travel. Controlling the axle movement with independent upper and lower links.
Important Notes1. Fits Diesel models only.
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. If installed on a truck with a top mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) are required.
4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
9. Installation requires a torque wrench capable of 405 ft-lbs.
10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1567FPE / BDS1569FPE
Item Numberbds_bds1567fpe
Product LineLift Kits
Lift Height5 inch
EngineDiesel
