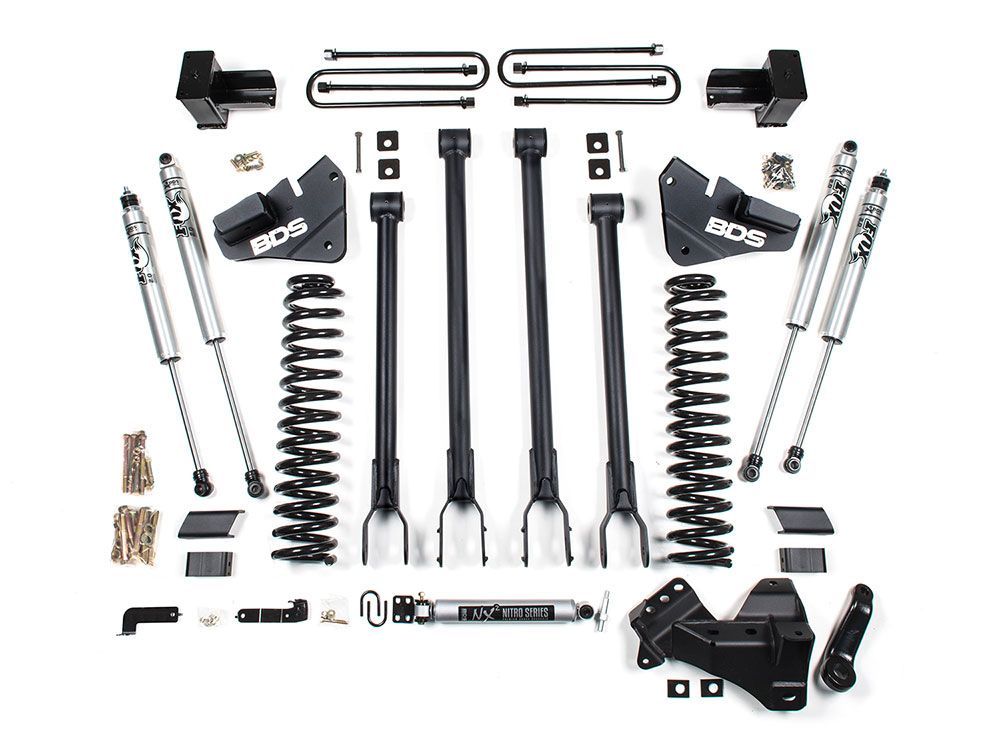

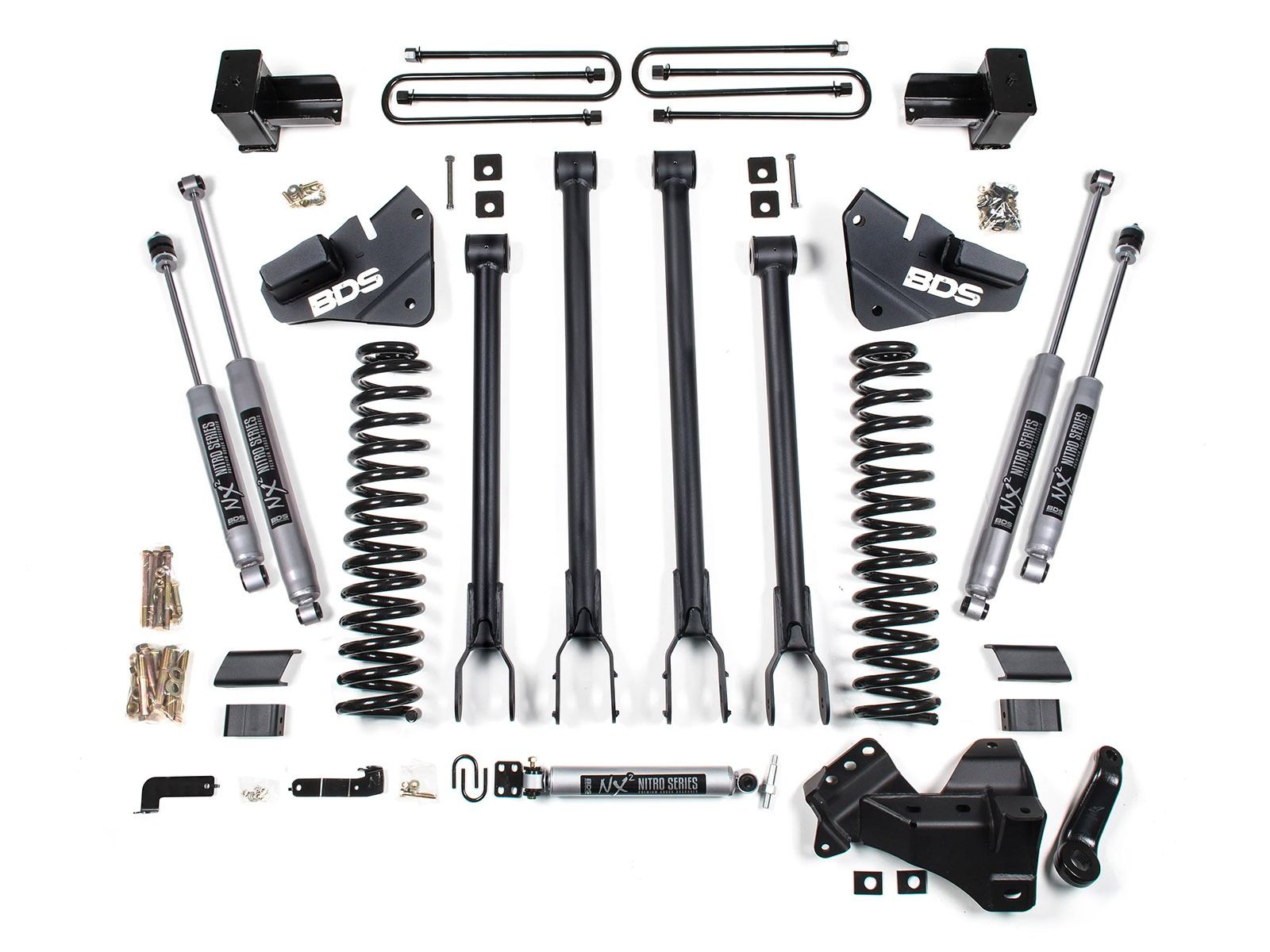

5" 2020-2022 Ford F250/F350 4WD 4-Link Arm Lift Kit by BDS Suspension

The BDS Suspension BDS1567H 5 inch 4-link arm lift kit for the Ford F250 / F350 with allow for use of up to 37 inch diameter tires. This awesome suspension system is designed to replace the factory radius arms with BDS's 4-link arm conversion. This will give your truck's wheel travel improved stability, strength and caster control. BDS Pro-Ride front coil springs lift the front end 5 inches while maintaining performance and ride quality. The front axle remains centered with the use a heavy duty track bar relocation bracket. A forged drop pitman arm maintains proper steering angles.

In the rear the factory blocks are replaced by a pair of lift blocks (size depends on number of main leafs in OE leaf springs) that feature integrated bump stop wings along with e-coated extended u-bolts.

You can choose BDS NX2 gas shocks (2-inch steel body), Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body) to improve ride quality and performance. Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Features and Benefits:

• 5 inch Pro-Ride Coil Springs feature smooth ride, top performance
• 4-LInk Conversion Kit (replaces factory radius arms)
• Better stability, strength and caster during front wheel travel
• Front track bar bracket to center axle
• Choose from BDS NX2 Ntiro Gas (2-inch steel body), Fox 2.0 Performance (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 37 inch tires
• Average Install Time: 8 - 10 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 37" x 12.50" w/17 x 9 tires and 4.5"-5" back spacing
• Fits 37" x 12.50" w/18 x 9 tires and 4.5"-5" back spacing
• Fits 37" x 12.50" w/20 x 9 tires and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
