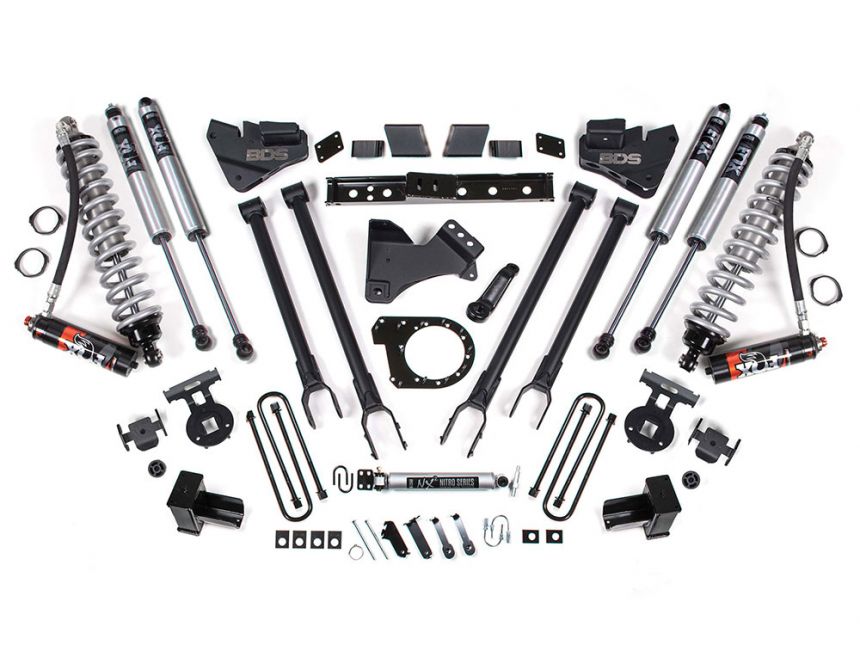

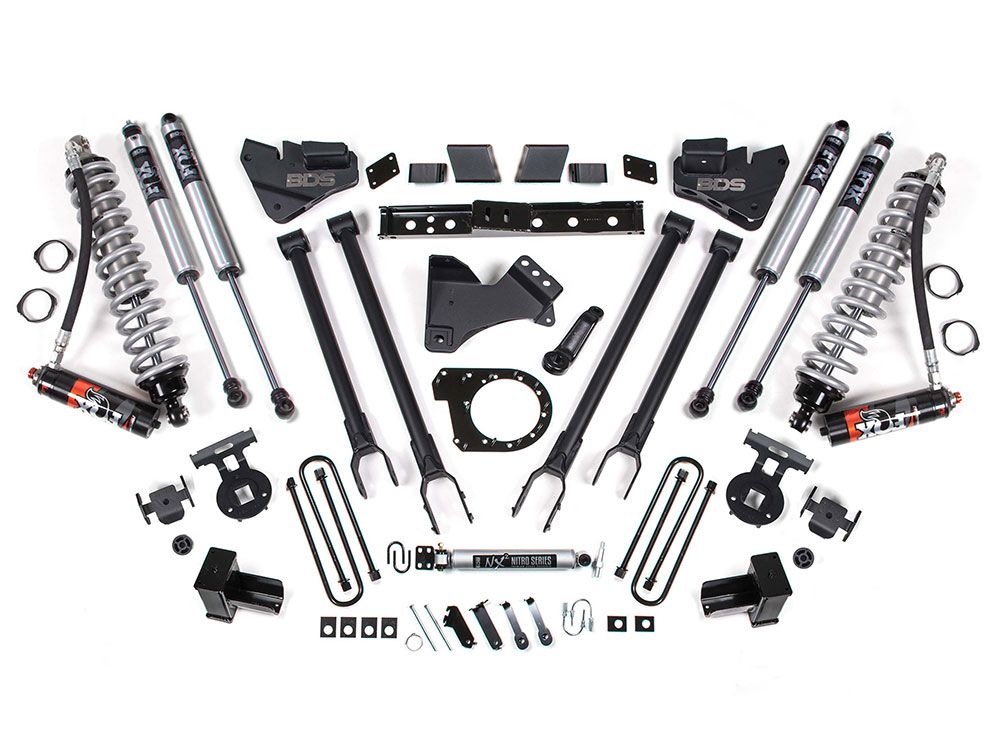

7" 2020-2022 Ford F250/F350 Super Duty 4WD (w/Diesel engine) 4-Link Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1571FPE / 1572FPE
As low as $5,216.45

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 1571FPE 4-Link 7" Coilover Lift Kit  for the Ford F250/F350 Super Duty provides a true suspension upgrade while attaining a 7" lift. Fully convert your suspension to a 4-link high strength control arm design, offering improved handling, stability, strength and caster control during wheel travel. The brackets are made out of 1/4" steel and key off the factory frame bracket and transmission crossmember for extra strength.

This kit also converts your front coil springs to Fox coilovers. Using Fox 2.5 Performance Elite Remote Reservoir Coilovers with DSC (dual speed compression) adjustability, these coilovers give unmatched ride comfort and performance. The DSC (dual speed compressions) adjustability gives the ability to fine tune your ride with the turn of a dial at low and high speeds. The forged drop pitman arm and heavy duty track bar relocation bracket supply correct steering angles and re-center the front axle. E-coated u-bolts are supplied along with Fox 2.0 gas shocks.

Features and Benefits:

  • Premium quality components
  • Fox 2.5 Performance Elite Remote Reservoir Coil-overs replace factory coil springs for unmatch ride comfort and performance
  • Coilovers feature DSC (dual speed compressions) adjustability to allow fine tuning of your ride with the turn of a dial at low and high speeds
  • 4-Link conversion provides improved handling and stability
  • Includes Fox 2.0 Performance shocks
  • Upgrade to GlideRide rear leaf springs for added traction control and increased load capacity
  • Allows for larger tire and wheel setup *minor trimming may be required*
  • Fits 38x13.50 w/20x9 tires and 4.5" - 5" backspacing
  • Fits 38x13.50 w/17x10 tires and 5" backspacing
  • Fits 38x13.50 w/20x10 tires and 5" backspacing
  • Estimated install: 3-4 hours
  • Made in the USA

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Ford 4-Link Long Arm Upgrade
This awesome upgrade replaces Ford factory radius arms with a 4-link long arm control arm system. This gives superior handling and ride control by giving consistant caster angle through full wheel travel. Controlling the axle movement with independent upper and lower links.
Important Notes1. Diesel engines ONLY
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a factory rear sway bar add: BDS123808
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. The indexing ring is only compatible with 10 speed transmission trucks. Please verify your truck's equipment before installing. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
9. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
10. Installation requires a torque wrench capable of 405 ft-lbs.
11. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)
Vehicle Fitment
ModelF250, F350
Year Fitment2022, 2021, 2020
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number1571FPE / 1572FPE
Item Numberbds_1571fpe-1572fpe
Product LineLift Kits
Lift Height7 inch
