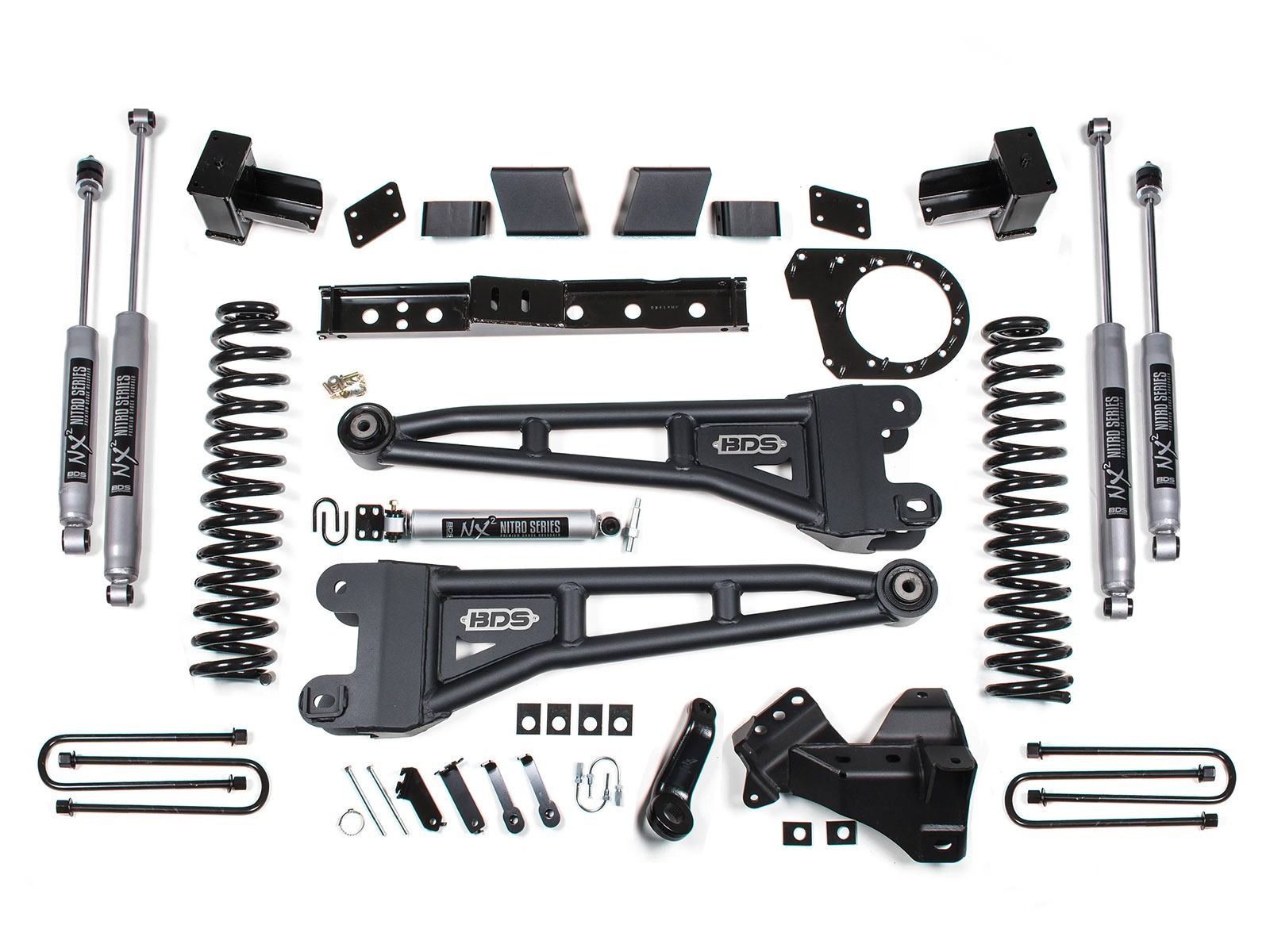

7" 2020-2022 Ford F350 Super Duty 4WD (Diesel & Dually models) Radius Arm Lift Kit by BDS Suspension

The BDS Suspension BDS1573H/BDS1573FS 7-inch lift kit is a great way to lift your Ford F350 dually 4WD truck, allowing for the use of up to 38-inch diameter tires. Built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance, and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and a NX2 series steering stabilizer with mounting bracket.

In the rear, the factory blocks are replaced by a pair of lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Features and Benefits:

• 7-inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose from BDS NX2 Ntiro Gas (2-inch steel body), Fox 2.0 Performance (2-inch Aluminum body), or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 38-inch tires
• Average Install Time: 6 to 8 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 38" x 13.50" tires w/17 x 9 and 4.5"-5" back spacing
• Fits 38" x 13.50" tires w/18 x 9 and 4.5"-5" back spacing
• Fits 38" x 13.50" tires w/20 x 9 and 4.5"-5" back spacing
• Fits 38" x 13.50" tires w/17 x 10 and 5" back spacing
• Fits 38" x 13.50" tires w/18 x 10 and 5" back spacing
• Fits 38" x 12.50" tires w/20 x 10 and 5" back spacing

Shock Options

• BDS NX2 Nitro Gas: Twin-tube nitro charged gas design, 2" steel body with silver powder coating
• FOX 2.0 Performance Series: 2" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Race-developed high-flow piston design with application-specific valving
• FOX 2.5 Performance Elite: 2.5" impact extruded aluminum body, External Reservoir, 7/8-inch diameter piston rod, DSC - Dual Speed Compression Adjuster to fine-tune ride quality

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
