6" 2020-2021 Ford F350 Super Duty 4WD (Dually & Diesel models) 4-Link Fox Performance Elite Coilover Lift Kit by BDS Suspension
6" 2020-2021 Ford F350 Super Duty 4WD (Dually & Diesel models) 4-Link Fox Performance Elite Coilover Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
888-452-2548

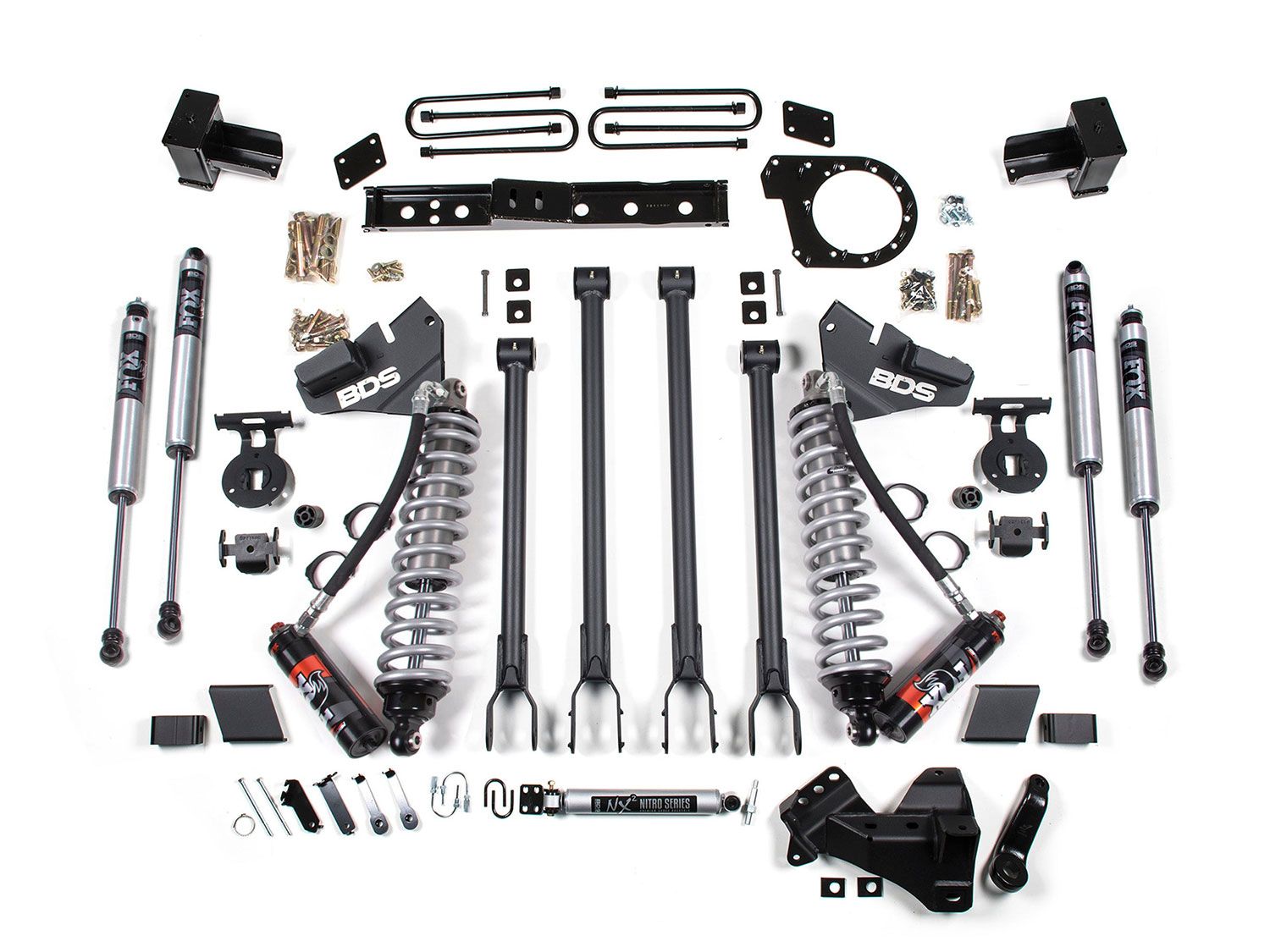

This BDS Suspension BDS1574FPE 4-Link 6" Coilover Lift Kit for the Ford F350 Dually Super Duty provides a true suspension upgrade while attaining a 6" lift. Fully convert your suspension to a 4-link high strength radius arm design, offering improved handling, stability, strength and caster control during wheel travel. The brackets are made out of 1/4" steel and key off the factory frame bracket and transmission crossmember for extra strength. This kit also converts your front coil springs to Fox coilovers. Using Fox 2.5 Performance Elite Remote Reservoir Coilovers with DSC (dual speed compression) adjustability, these coilovers give unmatched ride comfort and performance. The DSC (dual speed compressions) adjustability gives the ability to fine tune your ride with the turn of a dial at low and high speeds. The forged drop pitman arm and heavy duty track bar relocation bracket supply correct steering angles and re-center the front axle. E-coated u-bolts are supplied along with Fox 2.0 gas shocks. Features and Benefits:
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
Product HighlightsFox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance. Fox Coil-Over DSC AdjustmentThe included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions. Ford 4-Link Long Arm UpgradeThis awesome upgrade replaces Ford factory radius arms with a 4-link long arm control arm system. This gives superior handling and ride control by giving consistant caster angle through full wheel travel. Controlling the axle movement with independent upper and lower links. |
Important Notes1. Ford recommends replacement of the pitman arm nut after each time it has been removed 2. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper 3. If your truck is equipped with a factory rear sway bar add: BDS123808 4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402 5. Due to taller factory ride height, Tremor models will not net full advertised lift height 6. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section 7. This indexing ring is only compatible with 2020 10 speed transmission trucks. Please verify your truck's equipment before installing 8. Indexing Ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required |
Make | Ford |
---|---|
Model | F350 |
Year Fitment | 2021, 2020 |
2WD/4WD | 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS1574FPE |
Item Number | bds_bds1574fpe |
Product Line | Lift Kits |
Lift Height | 6 inch |
