4" 2017-2019 Ford F350 Super Duty 4WD (Diesel Dually models) Fox Performance Elite Coil-Over Radius Arm Lift Kit by BDS Suspension

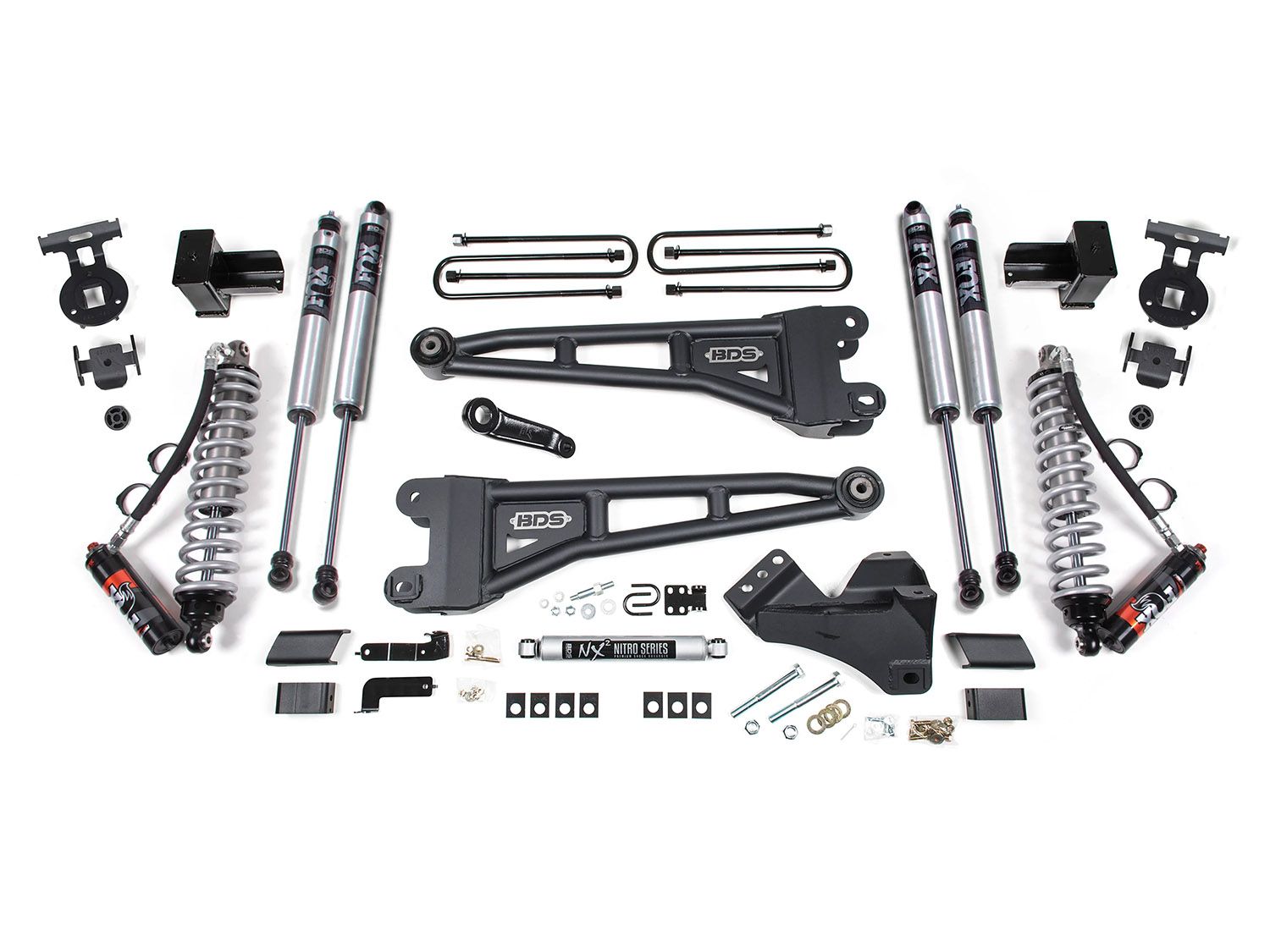

This BDS Suspension BDS1575FPE / BDS1976FPE is the ultimate premium 4-inch lift kit for the Ford F350 Super Duty Dually trucks. Featuring Fox 2.5 Performance Elite Series Remote Reservoir Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets; these replacement arms are far superior to the factory-stamped steel units. Featuring a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle. A forged drop pitman arm corrects steering angles. The front axle remains centered using a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

Choose the shocks that are right for you! Fox 2.0 Performance Shocks are a great option, using a 2-inch aluminum body and monotube gas design. Upgrade to the awesome Fox Performance Elite 2.5 shocks with DSC adjustment. Featuring a 2.5 inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

In the rear, a fabricated block with an integrated bump-stop wing is used in place of the factory block on the F250 or F350 to level the stance. Longer black e-coated u-bolts.

Features and Benefits:

• Allows for use of 37-inch tires
• Premium Quality Components
• Fox 2.5 Performance Elite Remote Reservoir Coil-Overs replace factory coil springs
• DSC Adjusters in coilover reservoirs allow you to adjust ride from soft to firm with the turn of a dial
• Fox 2.0 Performance Series or 2.5 Performance Elite Shocks
• Heavy Duty replacement tubular radius arms correct caster
• Drop pitman arm maintains steering angles
• Track bar relocation bracket keeps the front axle centered properly
• Made in the USA
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 4 to 6 Hours
• 37" x 12.50" w/17 x 9 and 4.5"-5" back spacing
• 37" x 12.50" w/18 x 9 and 4.5"-5" back spacing
• 37" x 12.50" w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
