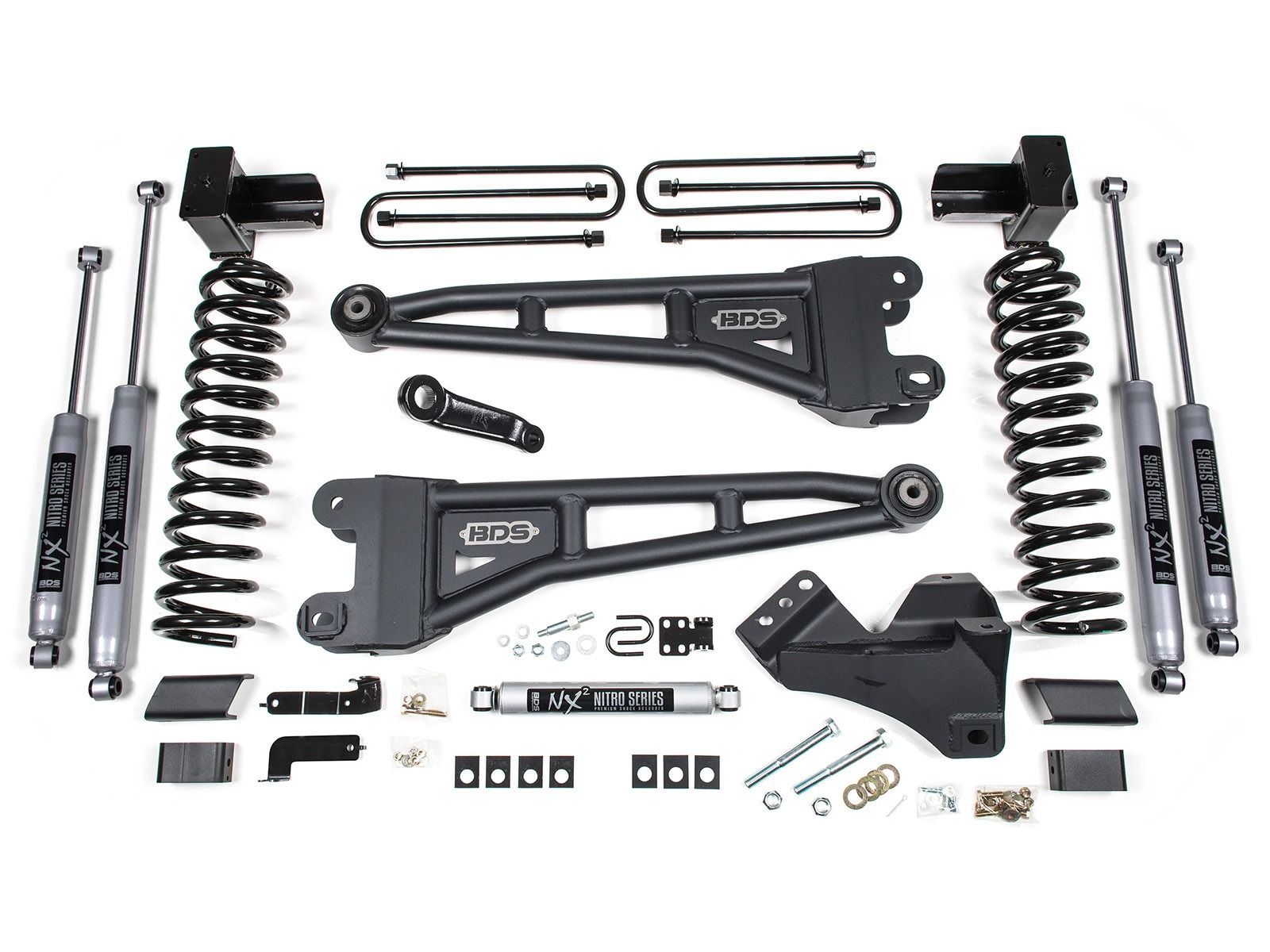

The BDS Suspension BDS1575FS / BDS1575H is an great method to lift your Ford F350 dually 4wd truck to allow for use of up to 37 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 4 inches while maintaining performance and ride quality. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

In the rear the factory blocks are replaced by a pair of lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Features and Benefits:

• 4 inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
• Allows use of up to 37 inch tires
• Average Install Time: 6 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• 37" x 12.50" w/17 x 9 and 4.5"-5" back spacing
• 37" x 12.50" w/18 x 9 and 4.5"-5" back spacing
• 37" x 12.50" w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

All Possible SKUs Depending on Options Selected: BDS1575H, BDS1575FS, BDS1576H, BDS1576FS
